TT-4 Serie

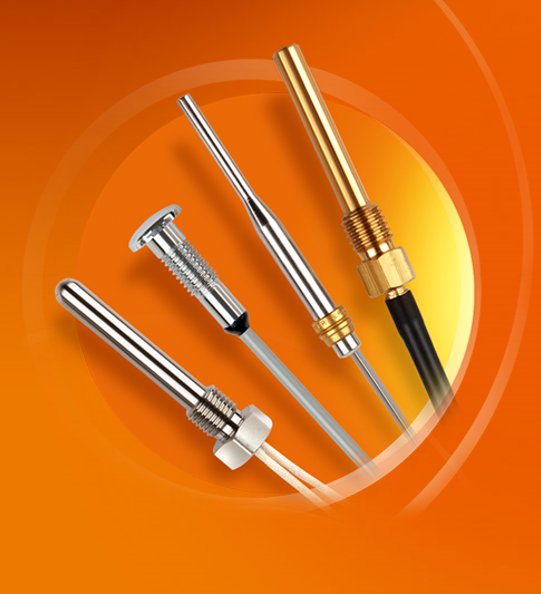

Characteristic: Custom temperature sensors using NTC, PTC or PtRTD's or even digital temperature sensors mounted into a wide range of metal- or plastic housings.
Specification
- Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000 5000, 50000, custom Pt100, Pt500, Pt1000
- Resistance Tolerance [%]: 1, 2, 5
- Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
- B Values (25/85) [K]: 2700-5100 custom
- Minimum operating temperature range [°C]: -200
- Maximum operating temperature range [°C]: 600
- Wires/C ables: PVC, Silicone, FEP, Fiberglass insulation, other.
- Features: Various metal and plastic housings and tubings, potted with different kind of resin. Different kind of connectors and cables (2-core cables or stranded with PVC, Silicone, Teflon or Kynar insulation, cables with screen & other).
Start product inquiry
If you are interested, start your non-committal product inquiry below:
request for sample
Technical contact
Ute Widmaier-Kopp
Manufacturer
TEWA Temperature Sensors
TEWA (a CTS Company) offers a wide range of high quality temperature sensor solutions.
TEWA is a manufacturer that develops and produces high-quality, assembled temperature sensors. The focus is on customer and application-specific temperature sensors, which are characterized by a variable adaptation of all electrical and mechanical parameters and a very good price/performance ratio.
Product portfolio
The portfolio of temperature sensors includes all sensor elements commonly used in the industry, including PTC and NTC thermistors, RTDs and thermocouples. By using special materials for the housing (e.g. stainless steel, steel, copper, etc.) and for cable insulation (e.g. PVC, silicone, FEP, fiberglass, etc.), the temperature range can be from -100°C to +600°C, depending on the sensor variant.
Suitable applications
Industrial electronics
Medical technology
Automotive
Consumer electronics
Certifications and quality management
- ISO 9001
- ATEX
