Square speaker

Overview of the advantages of Loudspeakers:

  • Widest frequency range and best sound, compared with other sound solutions
  • Different Impedances available
  • Differend diameter and frequencies available
  • Wire/connector assembly available on request
  • Automotive specification and sound solution available on request

There are 10 of 45 products shown.

1609KFG08K5-027

  • Length [mm]: 16 mm
  • Width [mm]: 9 mm
  • Height [mm]: 2.7 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 1,000 mW
  • SPL [dB]: 94 dB
  • Frequency [Hz]: 480 Hz ... 20,000 Hz
  • Manufacturer: Veco
1609KFG08K5-027

2712KFG04K3-030-2L

  • Length [mm]: 27 mm
  • Width [mm]: 12 mm
  • Height [mm]: 3 mm
  • Impedance [Ω]: 4 Ω
  • Normal Power [mW]: 1,500 mW
  • SPL [dB]: 81 dB
  • Frequency [Hz]: 500 Hz ... 20,000 Hz
  • Manufacturer: Veco
2712KFG04K3-030-2L

2010KFG08K3-030-1

  • Length [mm]: 20 mm
  • Width [mm]: 10 mm
  • Height [mm]: 3.2 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 1,000 mW
  • SPL [dB]: 93 dB
  • Frequency [Hz]: 280 Hz ... 20,000 Hz
  • Manufacturer: Veco
2010KFG08K3-030-1

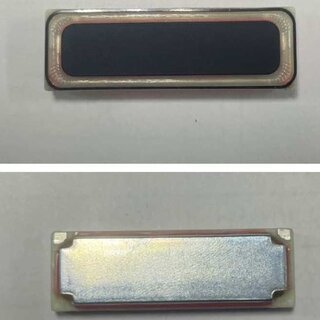

3411KFG04T-040-1

  • Length [mm]: 34 mm
  • Width [mm]: 11 mm
  • Height [mm]: 3.9 mm
  • Impedance [Ω]: 4 Ω
  • Normal Power [mW]: 2,000 mW
  • SPL [dB]: 80 dB
  • Frequency [Hz]: 320 Hz ... 20,000 Hz
  • Manufacturer: Veco
3411KFG04T-040-1

1712VUG08-1

  • Length [mm]: 17 mm
  • Width [mm]: 12 mm
  • Height [mm]: 3.6 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 1,000 mW
  • SPL [dB]: 80 dB
  • Frequency [Hz]: 600 Hz ... 20,000 Hz
  • Manufacturer: Veco
1712VUG08-1

28KC08-1-A

  • Length [mm]: 28 mm
  • Width [mm]: 28 mm
  • Height [mm]: 10.8 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 2,000 mW
  • SPL [dB]: 82 dB
  • Frequency [Hz]: 150 Hz ... 20,000 Hz
  • Manufacturer: Veco
28KC08-1-A

3512KMG04X-1

  • Length [mm]: 35 mm
  • Width [mm]: 12 mm
  • Height [mm]: 4.7 mm
  • Impedance [Ω]: 4 Ω
  • Normal Power [mW]: 1,500 mW
  • SPL [dB]: 84 dB
  • Frequency [Hz]: 400 Hz ... 20,000 Hz
  • Manufacturer: Veco
3512KMG04X-1

32KC08-1

  • Length [mm]: 32 mm
  • Width [mm]: 32 mm
  • Height [mm]: 14.7 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 3,000 mW
  • SPL [dB]: 82 dB
  • Frequency [Hz]: 120 Hz ... 20,000 Hz
  • Manufacturer: Veco
32KC08-1

35KT08-1

  • Length [mm]: 35 mm
  • Width [mm]: 20 mm
  • Height [mm]: 5.5 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 1,000 mW
  • SPL [dB]: 86 dB
  • Frequency [Hz]: 400 Hz ... 20,000 Hz
  • Manufacturer: Veco
35KT08-1

40KS08P-1

  • Length [mm]: 40 mm
  • Width [mm]: 20 mm
  • Height [mm]: 8 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 2,000 mW
  • SPL [dB]: 87 dB
  • Frequency [Hz]: 300 Hz ... 15,000 Hz
  • Manufacturer: Veco
40KS08P-1
Length [mm]

Width [mm]

Height [mm]

Normal Power [mW]

Frequency [Hz]
