Biosensors and MultiLeds

BIOSENSORS (BIO-Monitoring sensors)

Wearable applications enable the monitoring of vital signs for healthcare reasons and also for daily life activity tracking. An optical PPG system measures heart rate by tracking changes in the amount of absorbed light in the blood as vessels expand and contract with each heartbeat. The same principle is used to measure blood oxygen saturation (SpO2). Oxygenated hemoglobin has a significantly different pattern of light absorption than oxygen-free hemoglobin.

Electrocardiography (ECG) measures the pattern of the heart's electrical activity. Muscles contract and expand to pump blood throughout the body. This electrical sensing technique can be used to monitor sleeping patients to detect abnormal conditions or irregular heart activity.

Applications:

  • Health monitoring
  • Fitness tracking - blood pressure
  • Vital signs/vital parameters (heart rate, temperature, blood sugar and blood oxygen saturation)
  • medical non-invasive measurements
  • Monitoring of the cardiovascular system
  • PPG (photoplethysmography), PTT (partial thromboplastin time), SpO2, ECG (electrocardiography)
  • Point-of-care testing (POCT) diagnostics
  • Toxicology speed tests
  • Blood pressure temperature monitoring
  • HRV (Heart Rate Variability) tracking
  • Hypoxic shock
  • Heart rate and sleep monitoring
  • Step/multisport mode
  • ECG screening of disease symptoms
  • Women's Periodic Health (Ovulation)

There are 10 of 19 products shown.

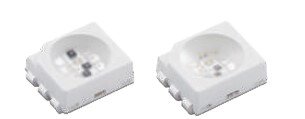

PR80E01

  • Number of emitters: 4
  • wavelength 1 [nm]: 940 nm
  • wavelength 2 [nm]: 530 nm
  • wavelength 3 [nm]: 470 nm
  • Manufacturer: Lextar
PR80E01

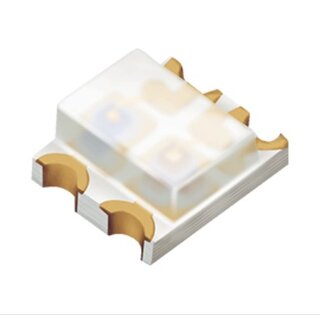

BR15-22C/L586/R/TR8

  • Number of emitters: 2
  • wavelength 1 [nm]: 905 nm
  • wavelength 2 [nm]: 660 nm
  • Manufacturer: Everlight
BR15-22C/L586/R/TR8

PR80E02

  • Number of emitters: 4
  • wavelength 1 [nm]: 850 nm
  • wavelength 2 [nm]: 530 nm
  • wavelength 3 [nm]: 470 nm
  • Manufacturer: Lextar
PR80E02

P124H01 V0

  • Number of emitters: 4
  • wavelength 1 [nm]: 940 nm
  • wavelength 2 [nm]: 680 nm
  • wavelength 3 [nm]: 545 nm
  • Manufacturer: Lextar
P124H01 V0

P12IE01 V0

  • Number of emitters: 2
  • wavelength 1 [nm]: 660 nm
  • wavelength 2 [nm]: 940 nm
  • Manufacturer: Lextar
P12IE01 V0

P124H01 V1

  • Number of emitters: 2
  • wavelength 1 [nm]: 680 nm
  • wavelength 2 [nm]: 545 nm
  • Manufacturer: Lextar
P124H01 V1

PM53G01 V0

  • Number of emitters: 1
  • wavelength 1 [nm]: 525 nm
  • Manufacturer: Lextar
PM53G01 V0

IRY19-22C/TR8

  • Number of emitters: 2
  • wavelength 1 [nm]: 595 nm
  • wavelength 2 [nm]: 940 nm
  • Manufacturer: Everlight
IRY19-22C/TR8

BR15-22C-L586-R-TR8-V1

  • Number of emitters: 2
  • wavelength 1 [nm]: 905 nm
  • wavelength 2 [nm]: 660 nm
  • Manufacturer: Everlight
BR15-22C-L586-R-TR8-V1

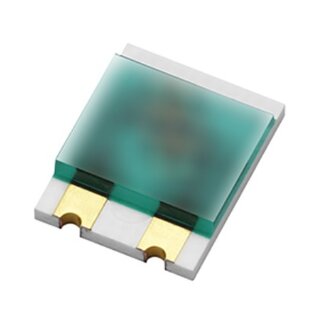

IRR60-48C/TR8

  • Number of emitters: 2
  • wavelength 1 [nm]: 660 nm
  • wavelength 2 [nm]: 905 nm
  • Manufacturer: Everlight
IRR60-48C/TR8
Number of emitters

Wavelength 1 [nm]

Wavelength 2 [nm]

Wavelength 3 [nm]
