Inductive Components
- Sizes 7.x6.0x3.5mm / 9.0x7.0x4.5mm / 12x11x6.0mm
- New size available: 15x13x6.0mm
- Customizsation possible
Features

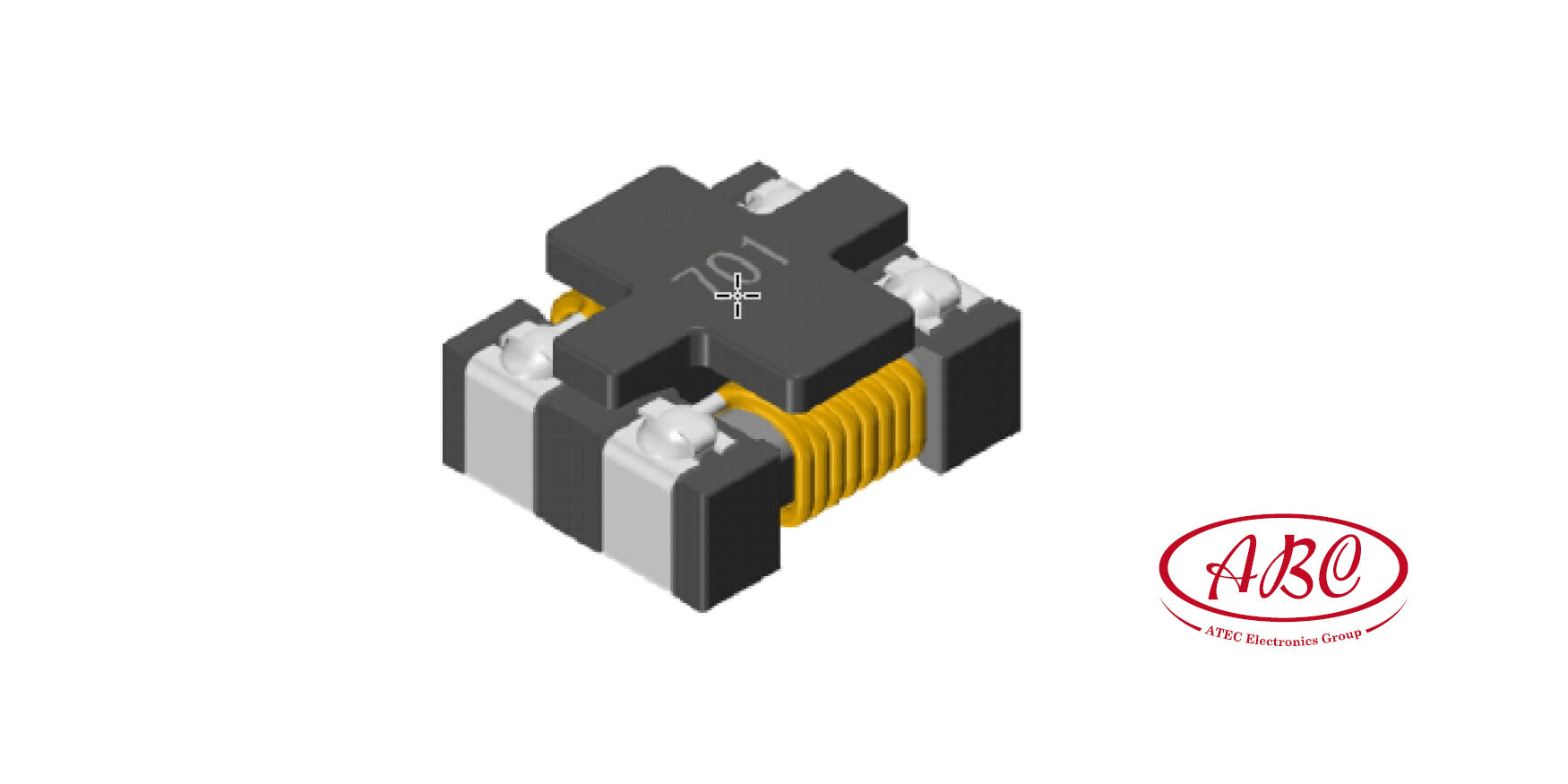

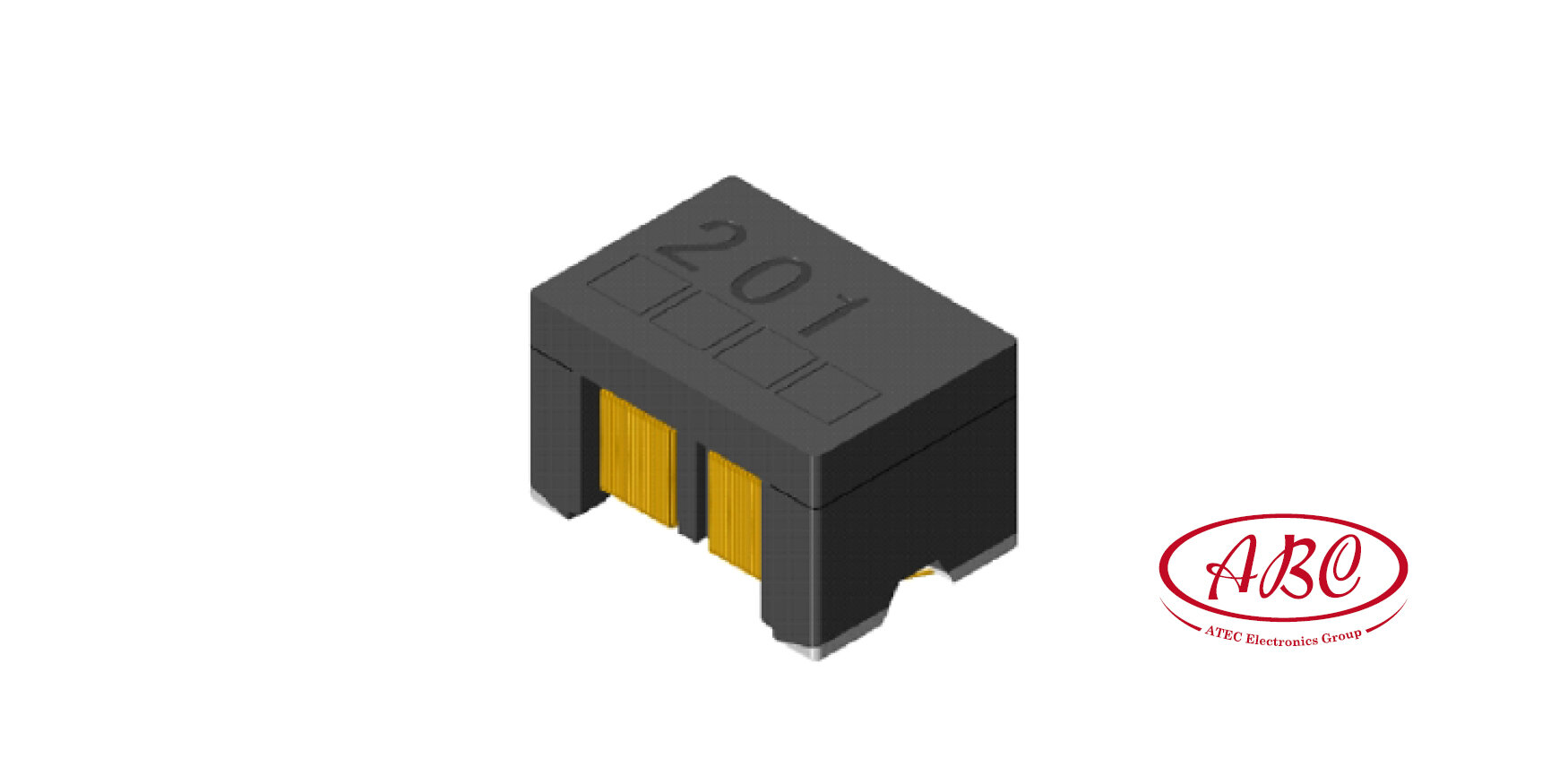

Large-current common-mode filters have higher common-mode impedance and can significantly reduce noise. Due to its low height and size, it is able to adapt to the trend toward higher density of portable devices that are becoming smaller and lighter. Noise countermeasures for adapter lines and battery lines or larger electronic equipment such as note PCs and word processors.
-
Suitable for Ethernet, CAN BUS, CAN-FD, 100 Base-T1 and PoC (power over coax)
-
Unique design with separate winding partitions
- Best reliability by AEC Q-200 qualification
Features
A common mode choke is an essential component in electrical and electronic circuits. They are specifically designed to suppress electromagnetic interference (EMI) and improve signal integrity and are often used in power supplies, communication devices and high-frequency applications.
- Iron or metal alloy powder
- Very high saturation current and soft saturation effect
- Customizsation possible
Features

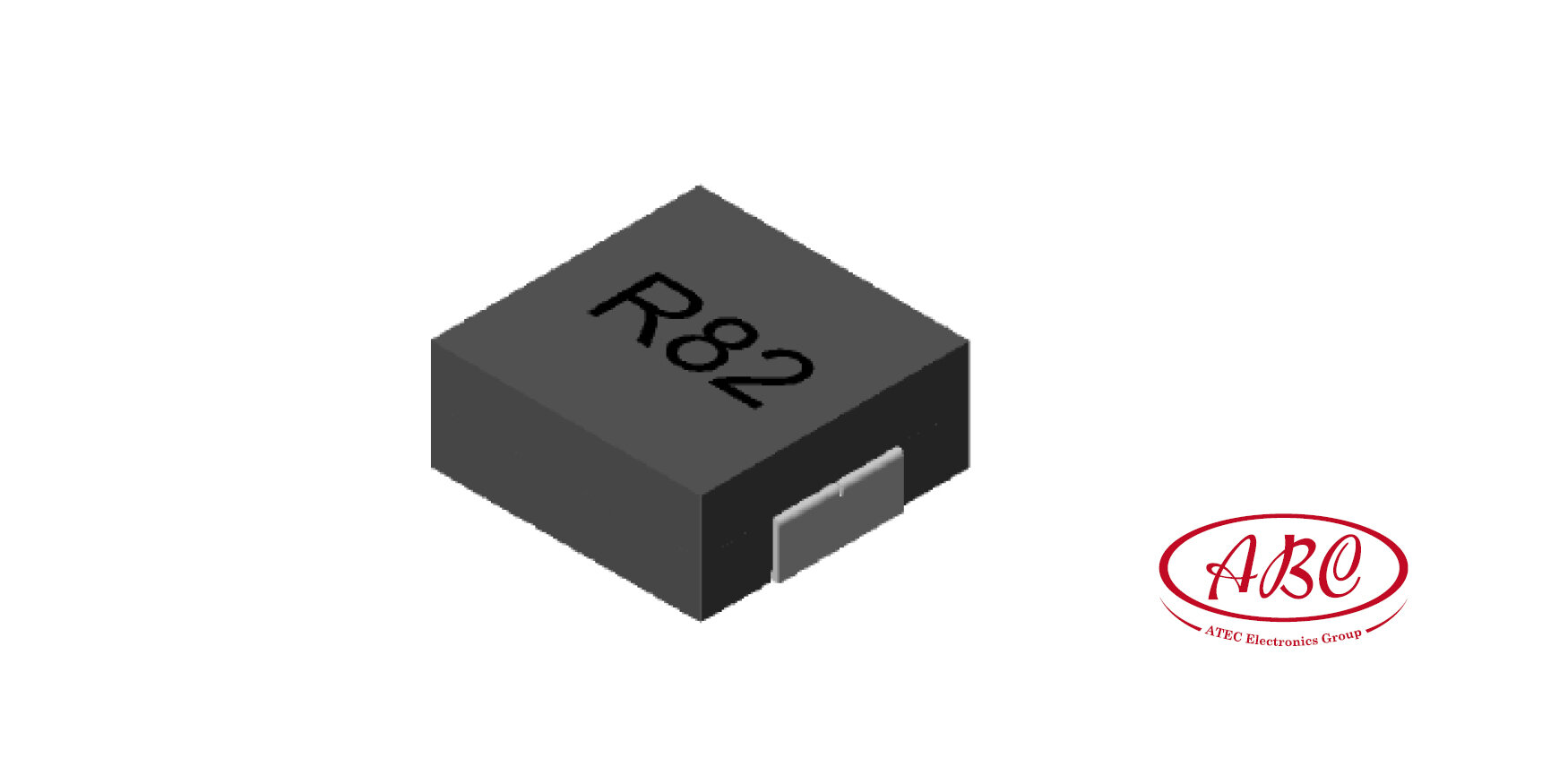

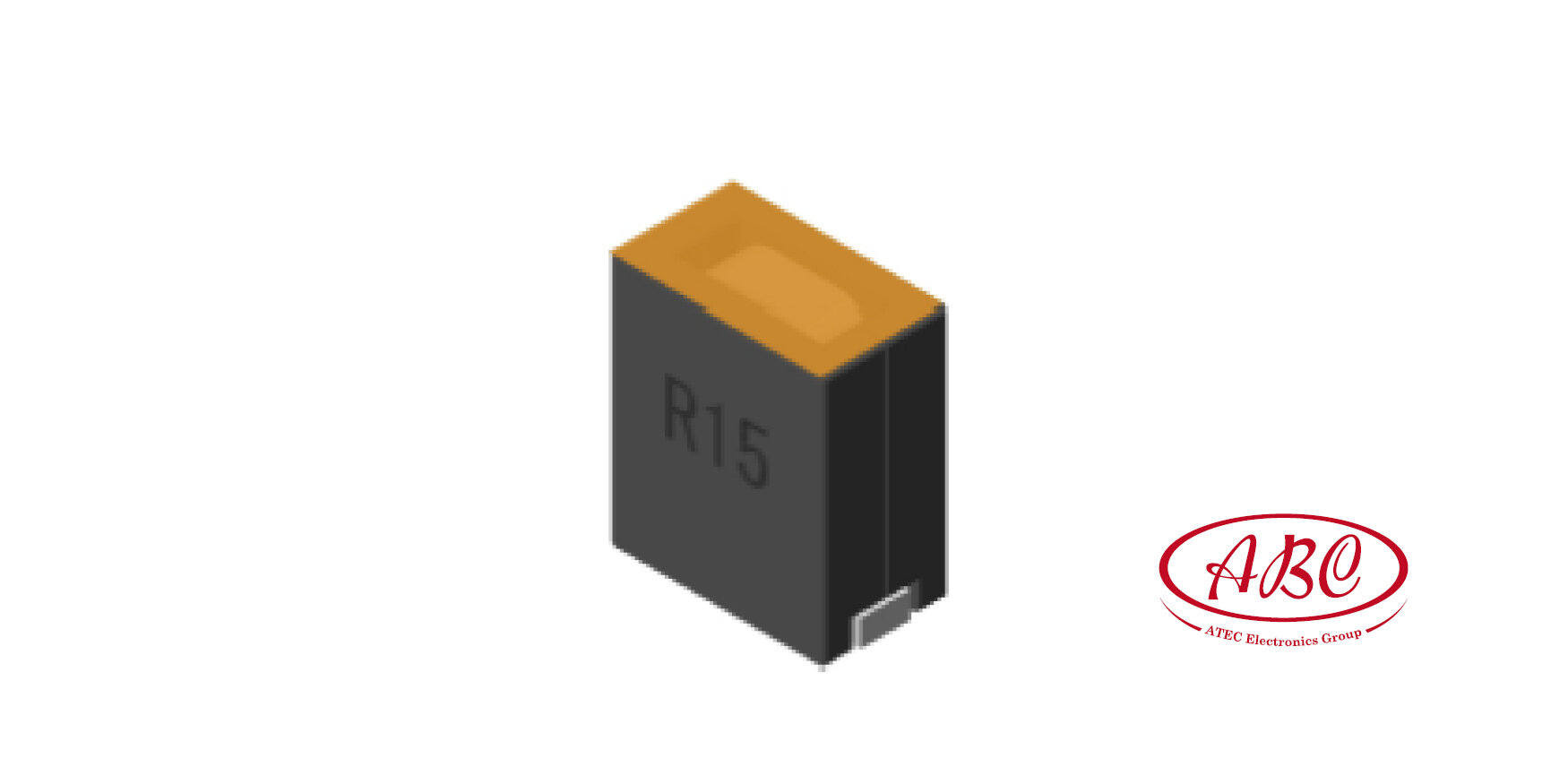

ABC ATEC offers a full range of iron powder / metal alloy powder high current power chokes, all made in Taiwan from 4x4mm to 18x17.15mm for currents up to 56A.
- Ferrite core construction
- For very high currents up to 92A
- Halogen free, lead free, RoHS compliant

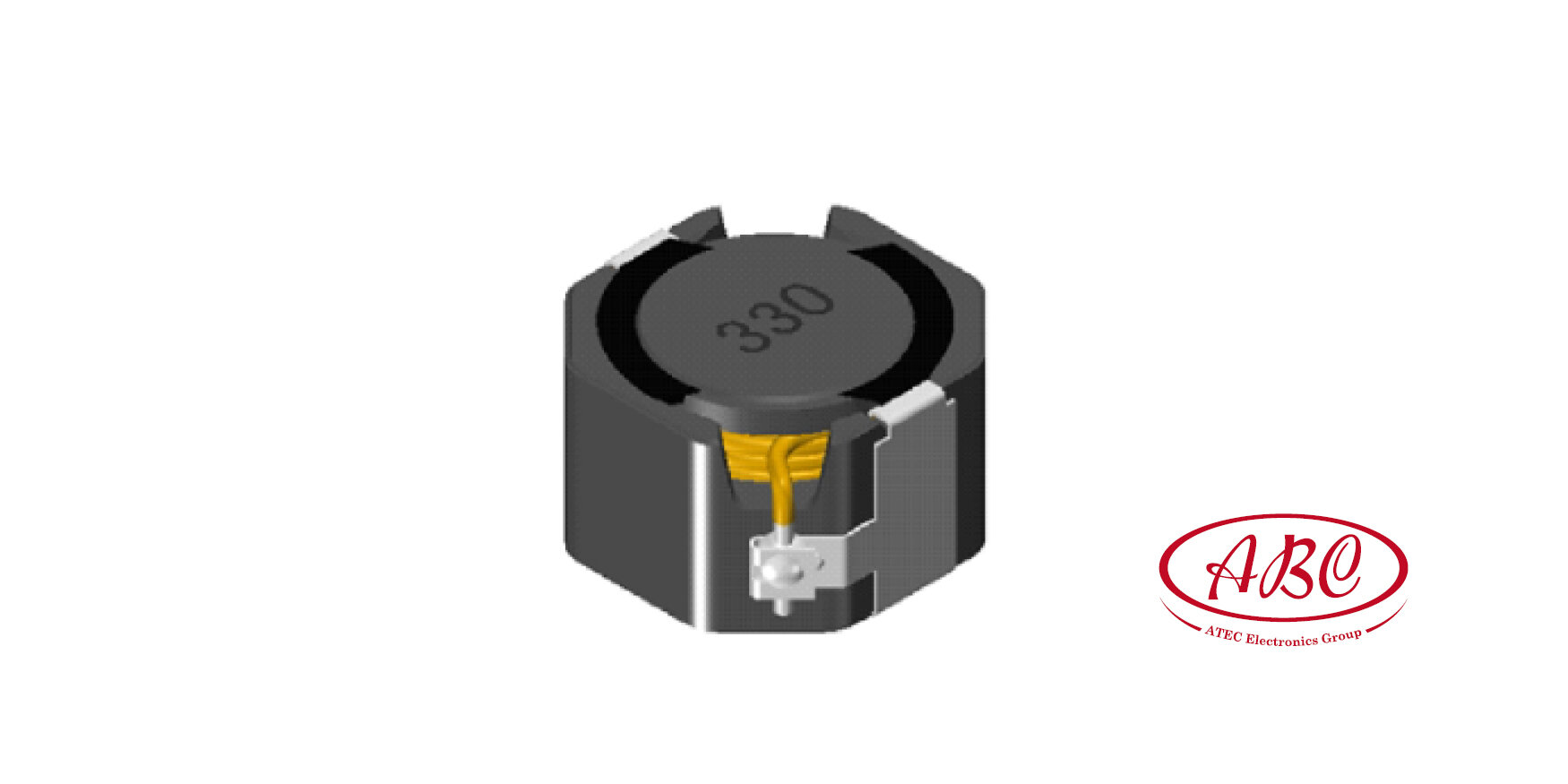

Features
Most suitable for DC/DC- converters, Point-of-load converters as used for processors in server and desktop applications to support GPU and CPU.
- Ferrite drum core construction with ring core shielding on metal terminal
- For very high currents up to 92A
- Halogen free, lead free, RoHS compliant

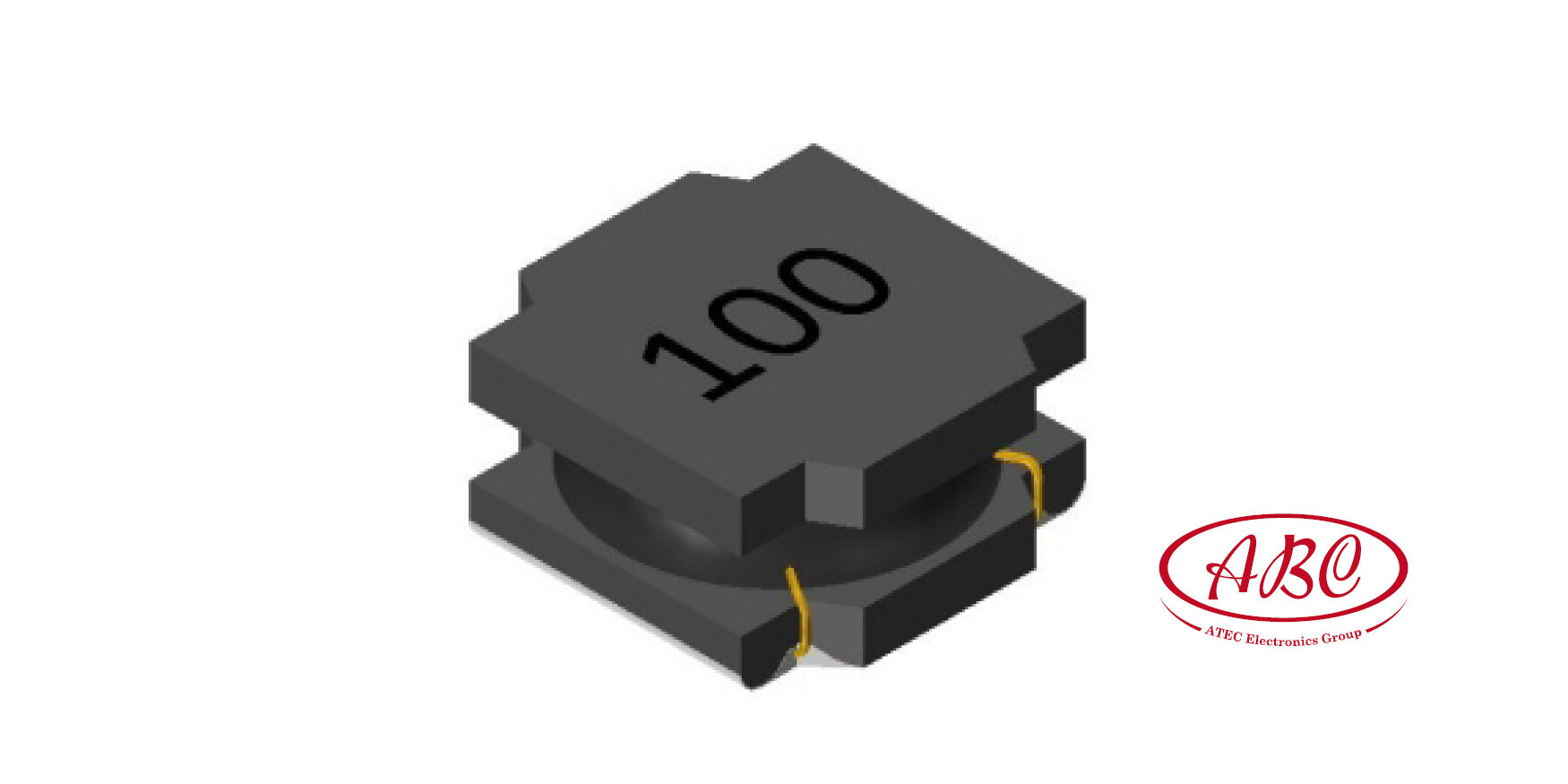

Features

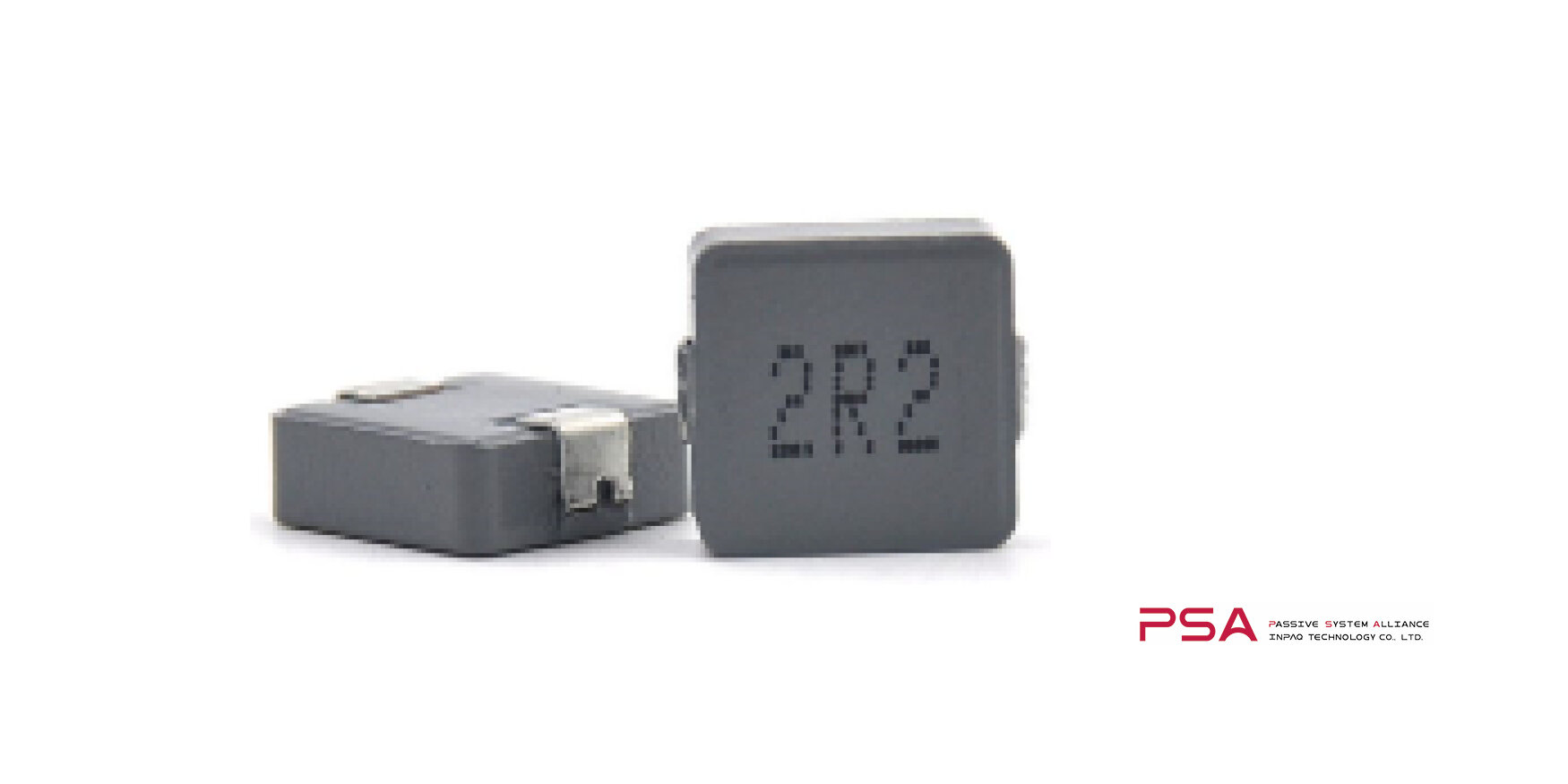

MCU series offers best in class Isat, Irms and RDC values and can therefore replace common alternatives on the market. By its strengthened structure and automated production, it meet automotive standards.
- SMD wire wound power inductor with magnetic glue coating structure, greatly reduces the noise.
- Closed magnetic circuit structure design for less magnetic leakage and strong EMI resistance.
- Small size and low profile save PCB space, which can be used in various applications.
- Product operating temperature range: -40 ˚C～ +125 ˚C
Features
The next generation semi-shielded inductors ESN-F series with 16 dimensions from 2.0x1.6mm to 8.0x8.0mm is available for wide range of applications. Products are produced on fully automated production and provide the advantage of cost saving.
- High saturation current, up to 10.5 A
- Low DCR, down to 9 mΩ
- Very low core loss
- Suitable for frequency up to 10 MHz
- Excellent EMI (magnetically shielded)
- Referenced by Qualcom / Snapdragon
Features

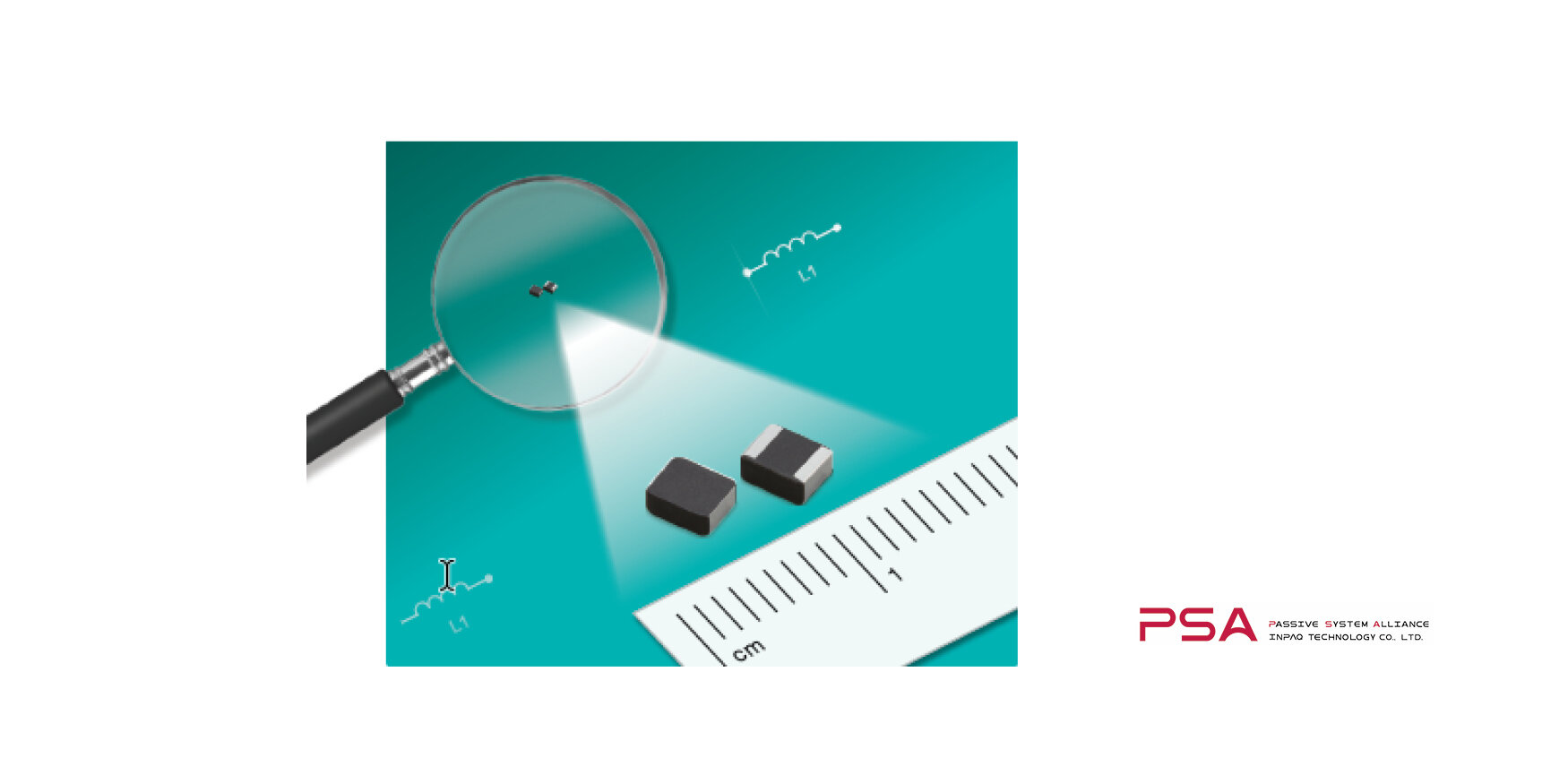

The new WIP series of Inpaq are wirewound power inductors in chip size. The construction consists of enamelled copper wire spring coil, molded inside a metal alloy powder paste. Core material with best permeability and lowest core loss, combined with a highly efficient production method result in coils with excellent performance and best competitiveness.
- Iron or metal alloy powder
- Very high saturation current and soft saturation effect
- Sizes 4x4mm to 10x10mm
Features
Inpaq Technology Co. Ltd. Have own materials research and development laboratory. The roadmap for development of material goes in these directions: higher temperature performance, better adhesion technology, balanced powder, uniform particle size, to make parts more compact, more efficient, and losses lower.

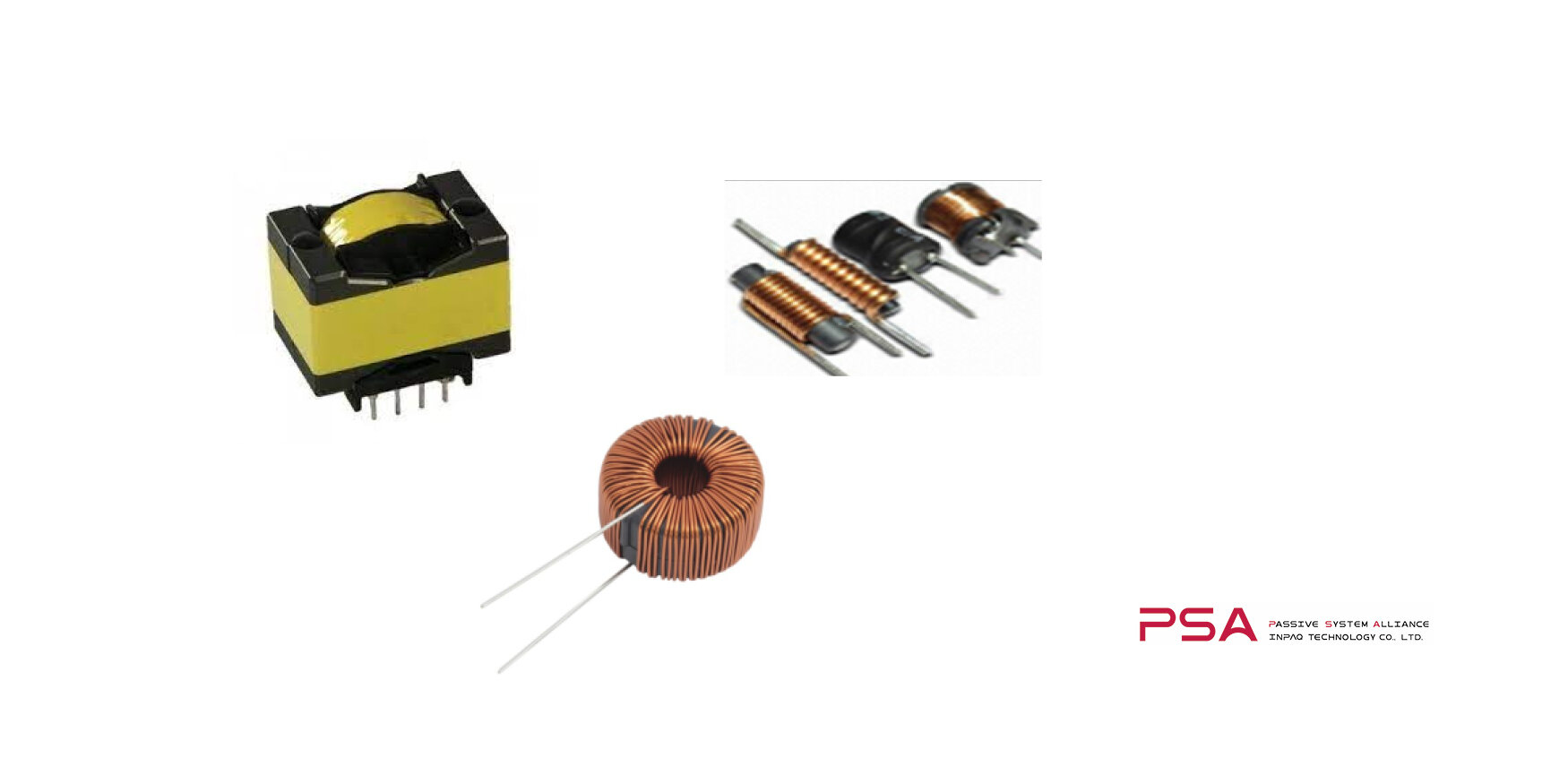

- Standard and customized transformer for flyback/forward/push-pull/ full bridge converters
- Toroid PFC choke for regulator circuits
- Rod core choke for use in p-filter applications such as DC motor
Features
By consolidating their resources in China, Wuxi, Inpaq Technology Co. Ltd, can offer HV, HF, LF transformers, common mode chokes in horizontal, vertical or toroid winding, as well as line and PFC chokes and rod core chokes for AC/DC, DC/DC and DC/AC applications.
- Inductors
- Common mode chokes
- Transformers

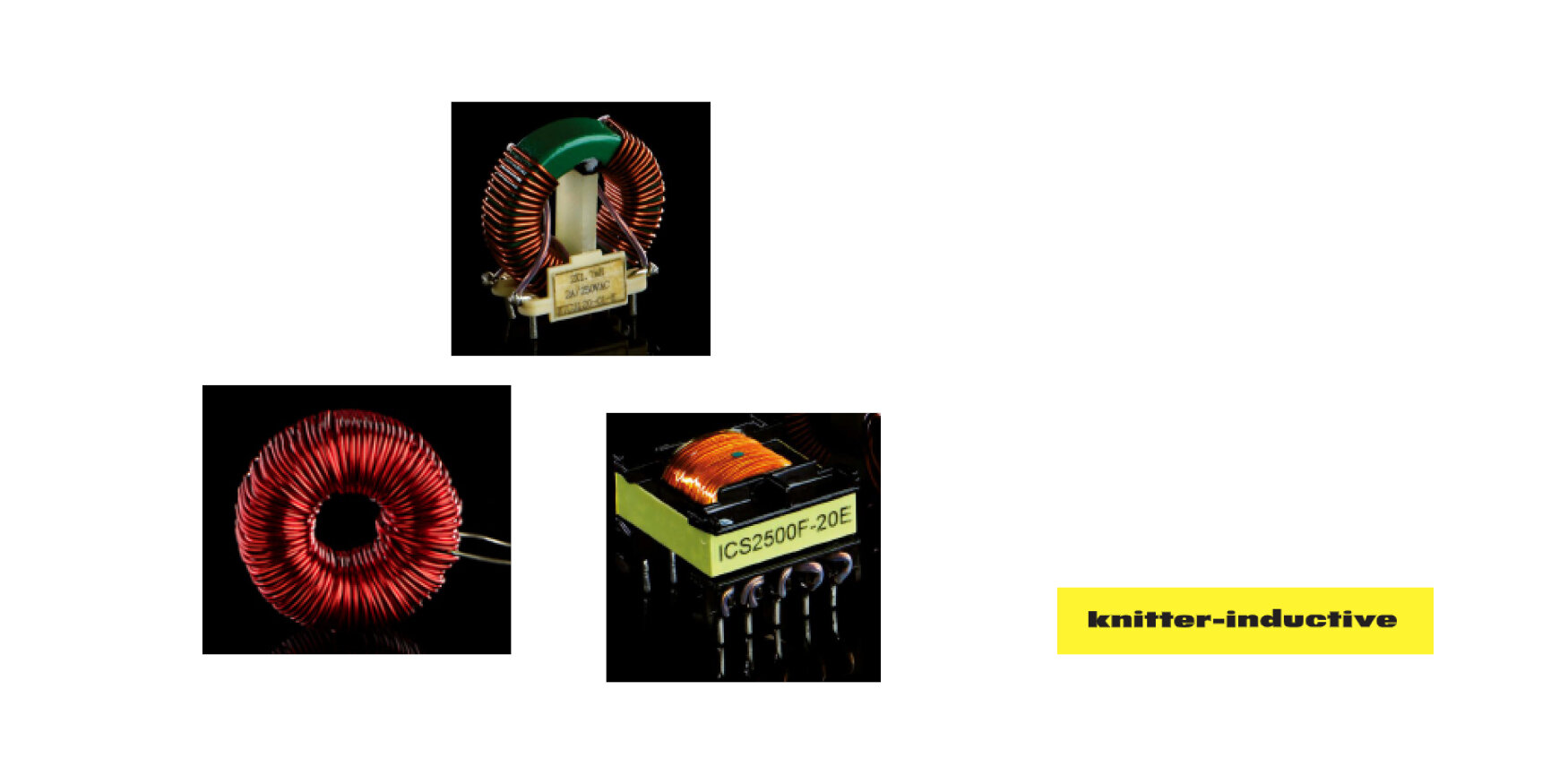

About Knitter Inductive
Knitter Inductive is specialized in customized Inductors, Common mode Chokes and Transformers even for smaller quantities. knitter-inductive is providing especially solutions for switch-mode power supplies, line filters, EMI protection, DC/AC converters for the solar and wind-power industry and many other applications.
Capacitors

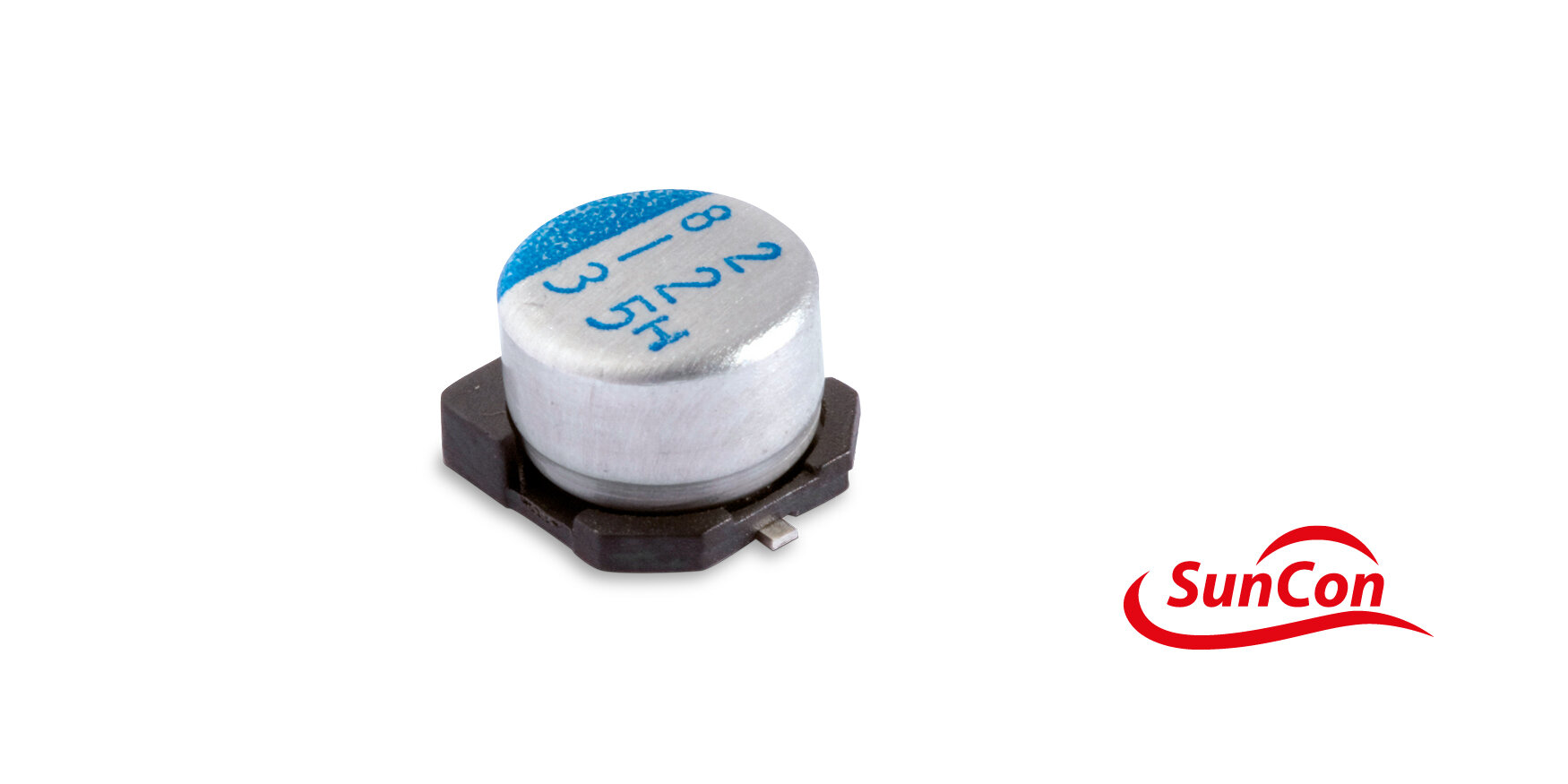

- Low height of down to 4.5 mm
- Long-life capacitors with a service life of up to 10,000 hours / 105°C
- High temperature types up to +150°C
- Components with a diameter of more than 6.3 mm are available with a vibration-resistant socket that can withstand 30 G.

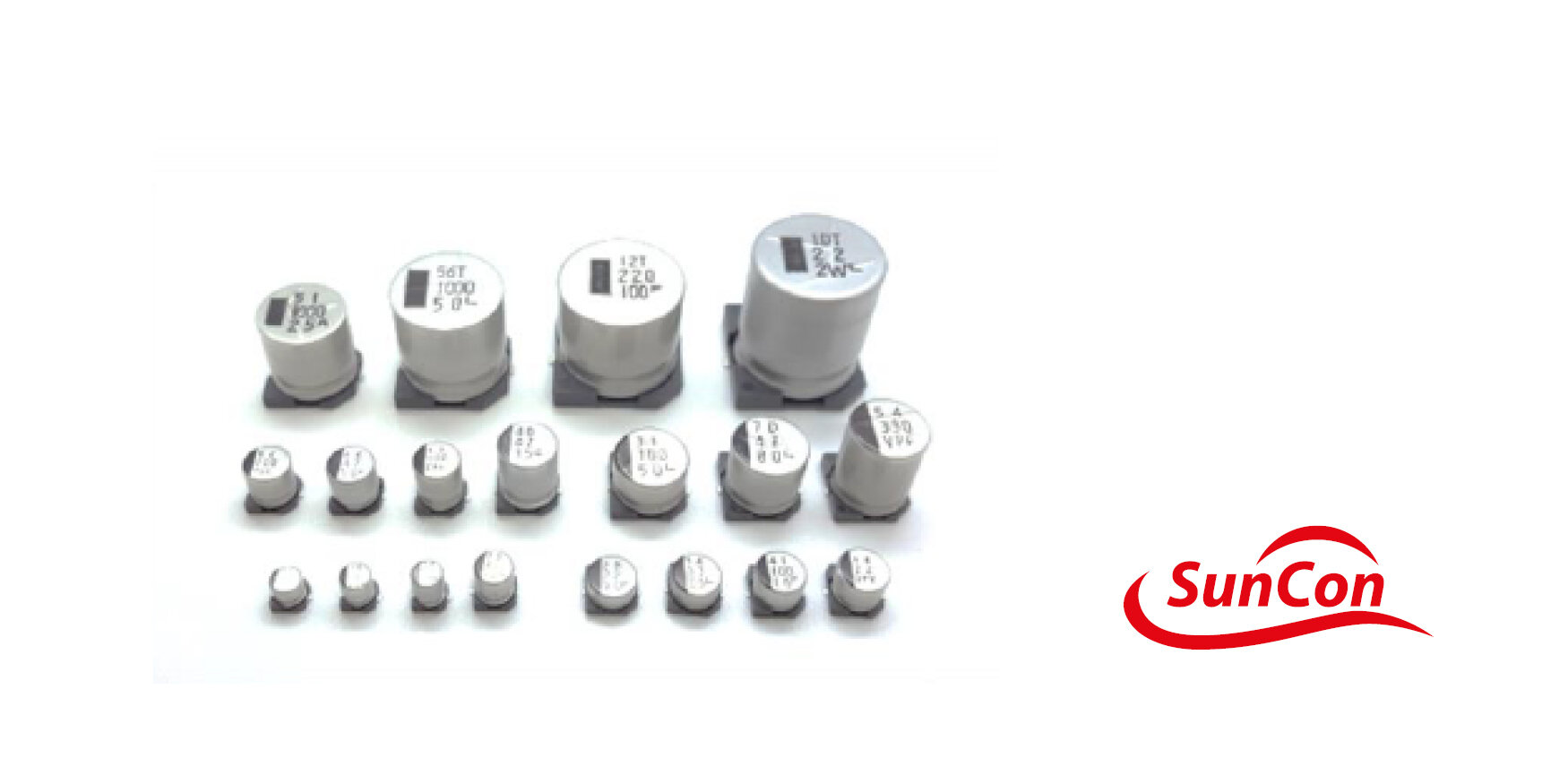

About SunCon
Sun Electronic Industries is a medium-sized Japanese manufacturer with headquarters in Osaka, two production sites in Izumo and Masuda (Japan) and one in Nantong (China). SUN's total production capacity is approximately 1.2 billion parts per year with an annual turnover of around €100 million. SUN concentrates on the future-proof area of SMD capacitors.
- Very high ripple current, very low ESR
- Long-life capacitors with a service life of up to 10,000 hours / 105°C
- High temperature types up to +150°C / 4.000 hrs.
- Components with a diameter of more than 6.3 mm are available with a vibration-resistant socket that can withstand 30 G.
About SunCon
Sun Electronic Industries is a medium-sized Japanese manufacturer with headquarters in Osaka, two production sites in Izumo and Masuda (Japan) and one in Nantong (China). SUN's total production capacity is approximately 1.2 billion parts per year with an annual turnover of around €100 million. SUN concentrates on the future-proof area of SMD capacitors.

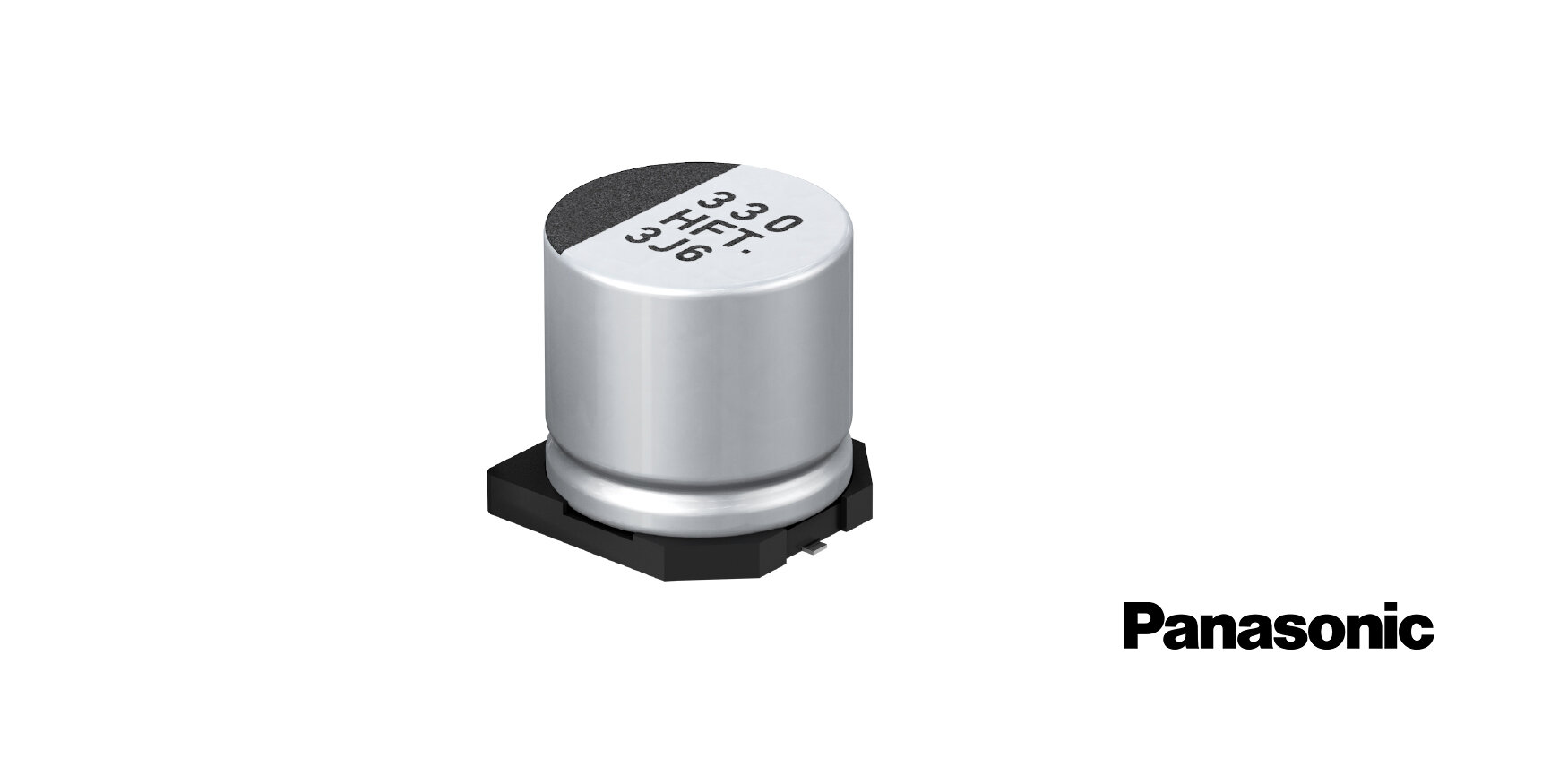

• Ultra-low profiles starting from 4.5 mm height
• Extended lifespan of up to 10,000 hours at 105°C
- High-temperature variants rated up to +150°C
- Models with diameters above 6.3 mm feature vibration-resistant construction, enduring up to 30 G

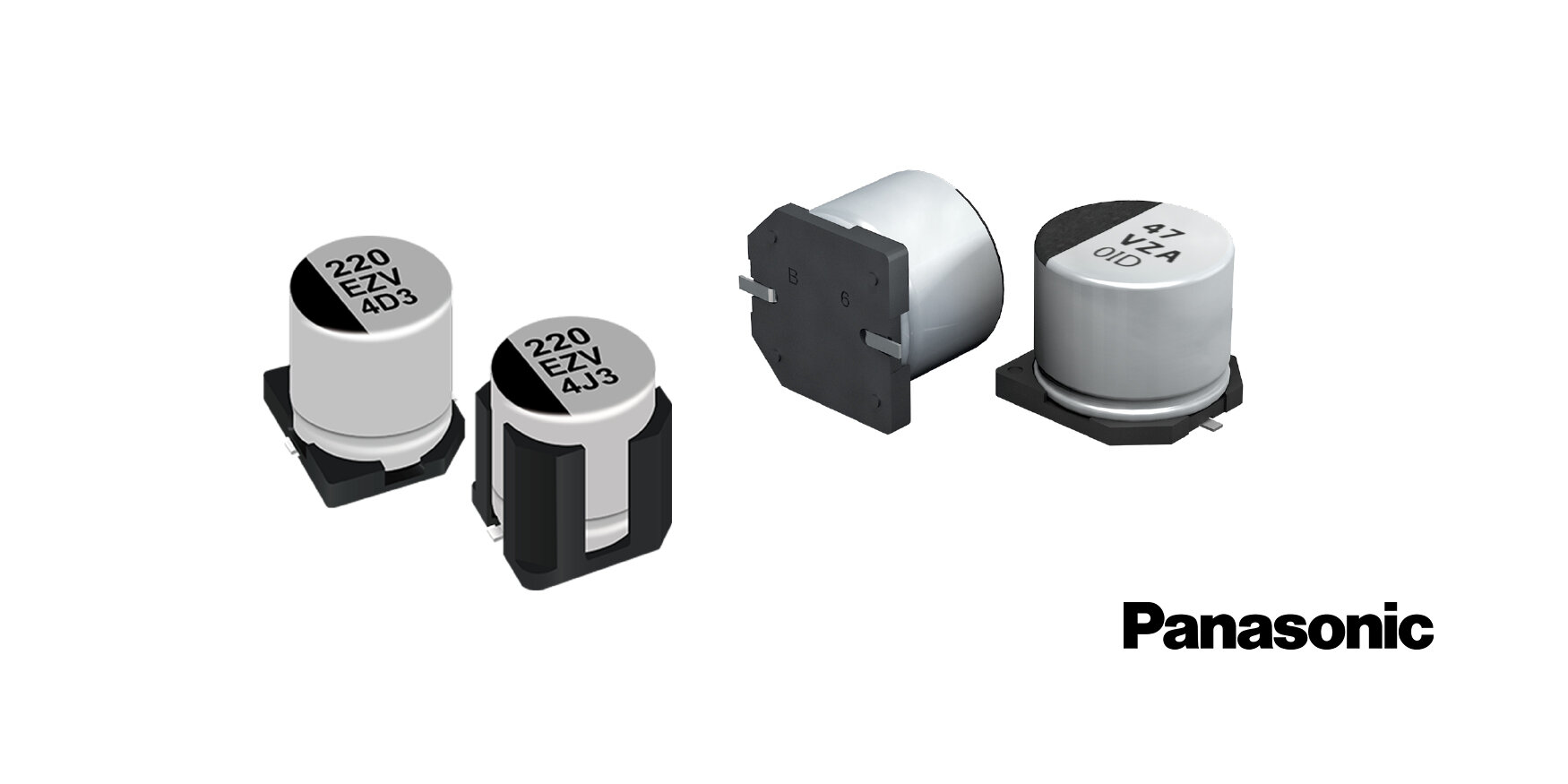

About Panasonic
Panasonic is a globally recognized electronics manufacturer headquartered in Osaka, Japan, with multiple production facilities worldwide. The company has an extensive portfolio, producing billions of components annually. Panasonic specializes in high-reliability SMD capacitors designed for demanding industrial and automotive applications, ensuring long operational life and superior performance.

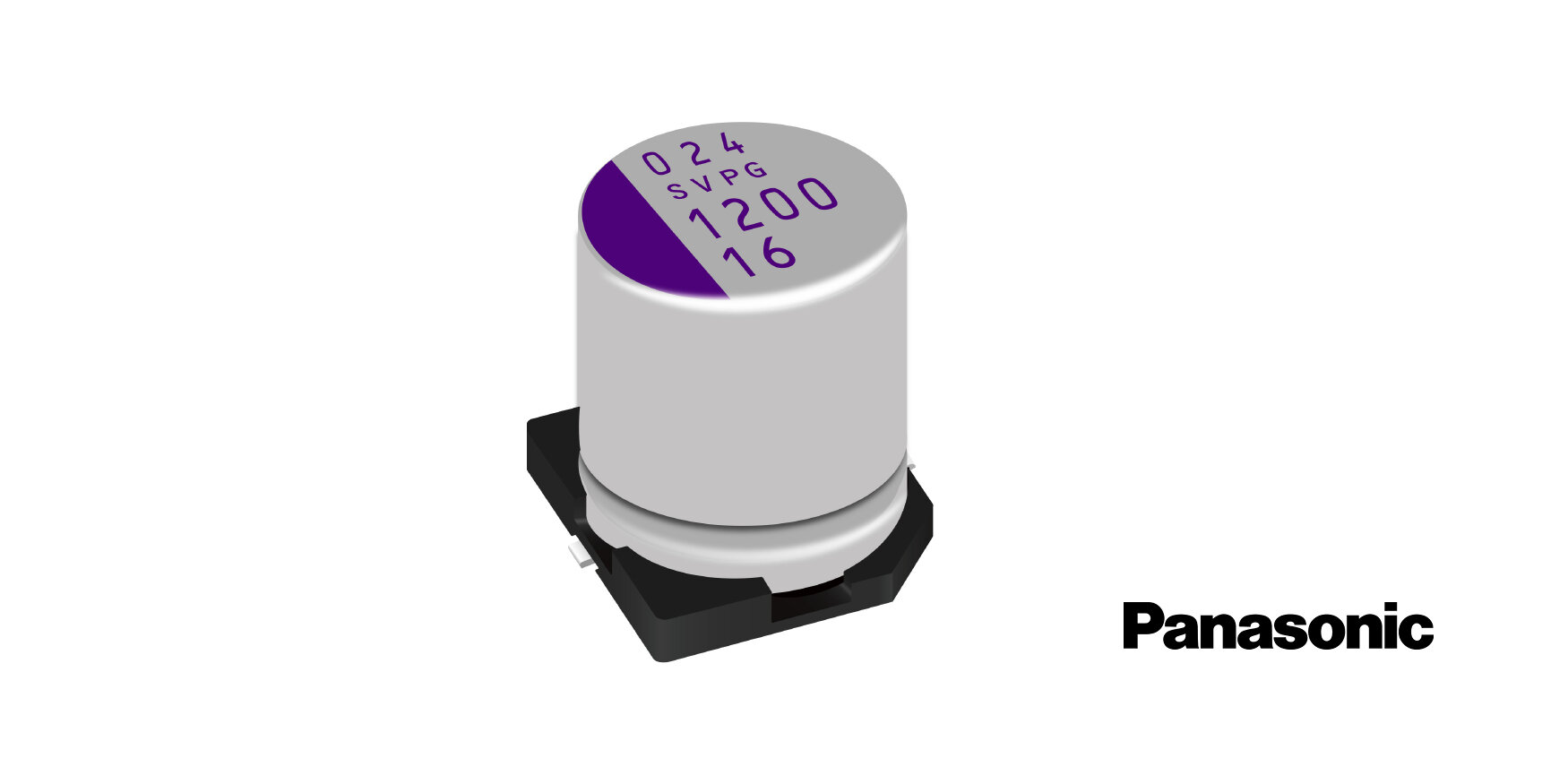

- Combines the benefits of electrolytic and polymer capacitors
- Low ESR and high ripple current handling for improved efficiency
- Long lifespan of up to 10,000 hours at 105°C
- High-temperature models available up to +150°C
- Enhanced durability with vibration resistance up to 30 G for components larger than 6.3 mm
About Panasonic
Panasonic is a globally recognized electronics manufacturer headquartered in Osaka, Japan, with multiple production facilities worldwide. The company has an extensive portfolio, producing billions of components annually. Panasonic specializes in high-reliability SMD capacitors designed for demanding industrial and automotive applications, ensuring long operational life and superior performance.
- Ultra-Low ESR: Enables superior efficiency and power integrity in high-frequency applications.
- High Ripple Current Handling: Enhances system stability and performance under demanding conditions.
- Compact and Lightweight Design: Allows for space savings on circuit boards while maintaining robust electrical characteristics.
- Long Lifespan: Designed for durability, ensuring extended operational life even in harsh environments.
- High Temperature Tolerance: Models available with temperature ratings up to +125°C, ensuring reliability in extreme conditions.
- Excellent Stability and Reliability: Provides stable capacitance over a wide temperature and frequency range.
About Panasonic
Panasonic is a globally recognized electronics manufacturer headquartered in Osaka, Japan, with multiple production facilities worldwide. The company has an extensive portfolio, producing billions of components annually. Panasonic specializes in high-reliability SMD capacitors designed for demanding industrial and automotive applications, ensuring long operational life and superior performance.
- Ultra-Low ESR: Ensures superior efficiency and minimal power losses in high-frequency circuits.
- High Ripple Current Handling: Enhances system stability and reliability under demanding conditions.
- Extended Lifespan: Provides long operational life, even in extreme environments.
- High Temperature Tolerance: Available models support temperatures up to +125°C, ensuring performance in harsh conditions.
- Excellent Stability and Reliability: Maintains capacitance and electrical characteristics across a wide temperature and frequency range.
About Panasonic
Panasonic is a globally recognized electronics manufacturer headquartered in Osaka, Japan, with multiple production facilities worldwide. The company has an extensive portfolio, producing billions of components annually. Panasonic specializes in high-reliability SMD capacitors designed for demanding industrial and automotive applications, ensuring long operational life and superior performance.

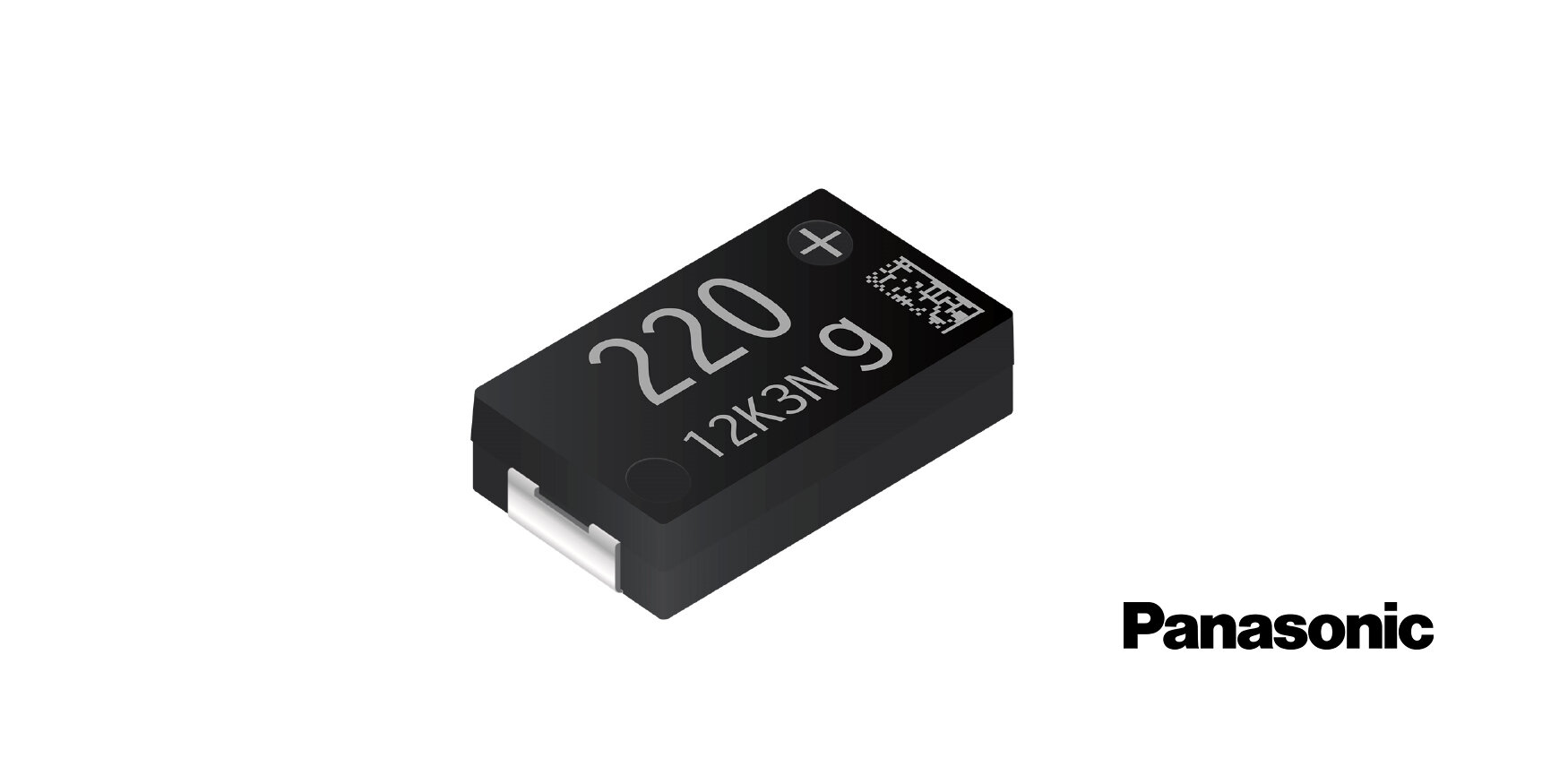

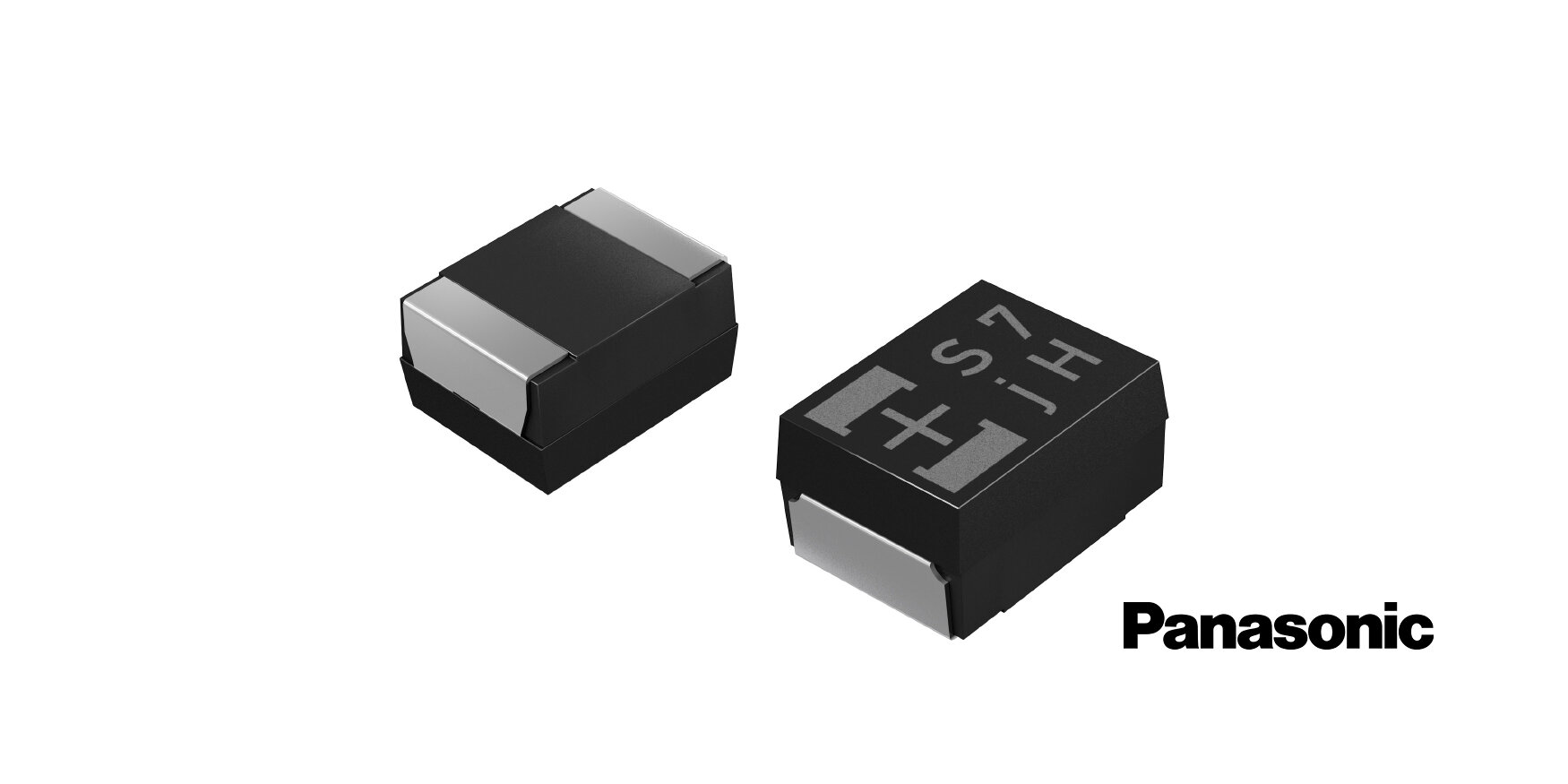

- Ultra-low ESR for excellent performance in high-frequency applications
- High ripple current capability for stable power delivery
- Compact design with low profiles starting from 1.0 mm height
- High reliability with long operational life and stable capacitance over time
- Suitable for automotive, industrial, and high-performance computing applications
About Panasonic
Panasonic is a globally recognized electronics manufacturer headquartered in Osaka, Japan, with multiple production facilities worldwide. The company has an extensive portfolio, producing billions of components annually. Panasonic specializes in high-reliability SMD capacitors designed for demanding industrial and automotive applications, ensuring long operational life and superior performance.

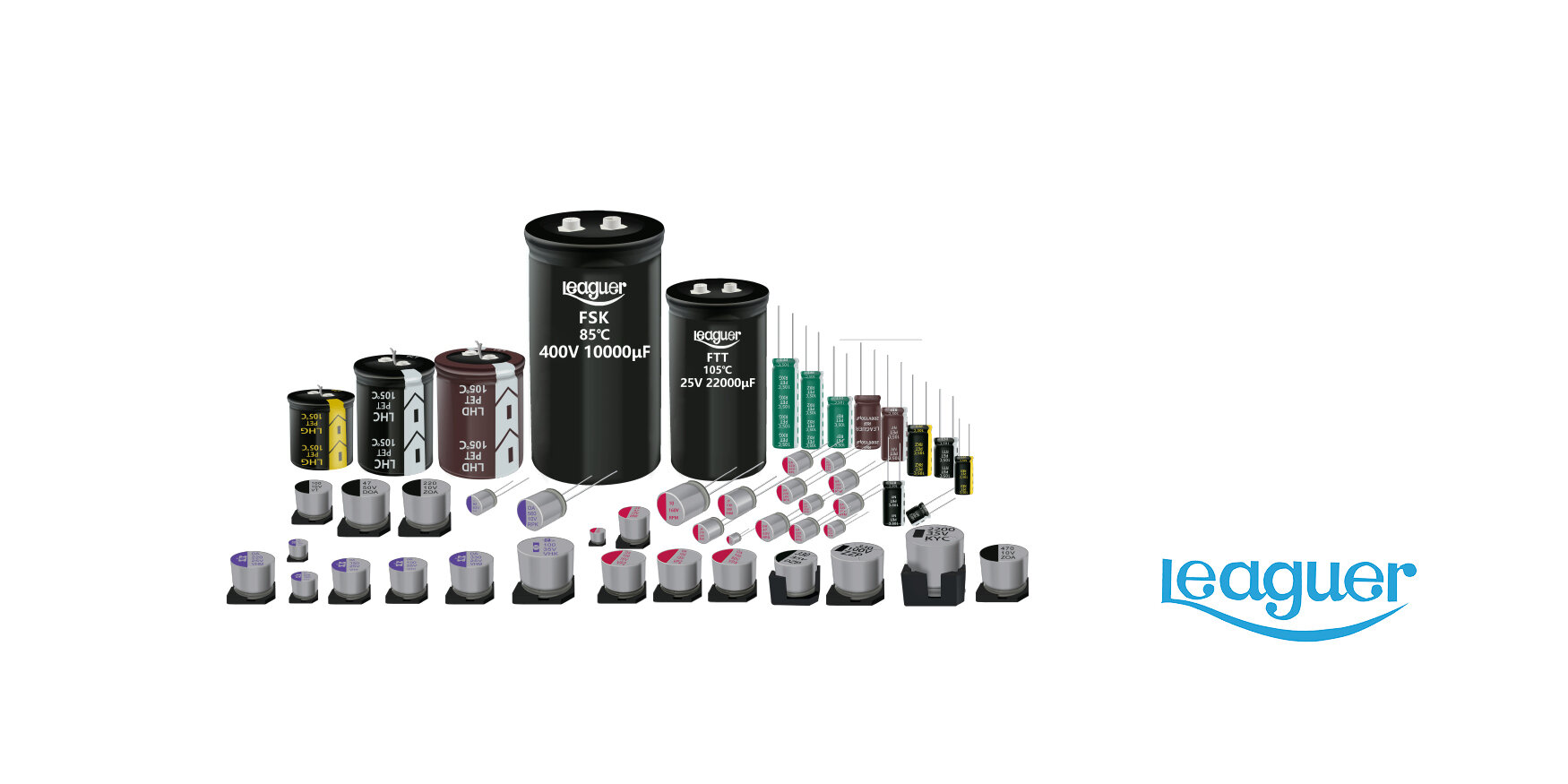

Leaguer produces Conductive Polymer Solid Capacitors, Conductive Polymer Hybrid Capacitors, SMD Aluminum Electrolytic Capacitors, Radial Lead Aluminum Electrolytic Capacitors, and Radial Lead Miniature Aluminum Electrolytic Capacitors. In addition Leaguer's capacitor portfolio includes:
- Snap-in Aluminum Electrolytic Capacitors: Ideal for space-saving designs, these capacitors offer reliable performance with easy PCB mounting, making them suitable for power electronics and industrial equipment.
- Screw Terminal Aluminum Electrolytic Capacitors: Designed for high-ripple current applications, these capacitors provide robust performance and durability, ensuring stable operation in demanding environments.
About Leaguer
Zhuhai Leaguer Capacitor Co., Ltd., established in November 2002,is a Chinese company specializing in the development, production, and sales of a comprehensive range of aluminum electrolytic capacitors. The company has a production capacity of 150 million SMD and lead aluminum electrolytic capacitors per month, covering a wide range of specifications.
The company sources key raw materials, such as aluminum foil and electrolytic paper, from renowned Japanese suppliers like JCC, KDK, and NKK, ensuring product quality and reliability. Leaguer has obtained certifications including ISO9001 for Quality Management, ISO14001 for Environmental Management, QC 080000, and IATF16949, reflecting its commitment to maintaining high standards.
With a focus on innovation and quality, Leaguer's capacitors meet industry standards and deliver efficiency, longevity, and performance across various applications.

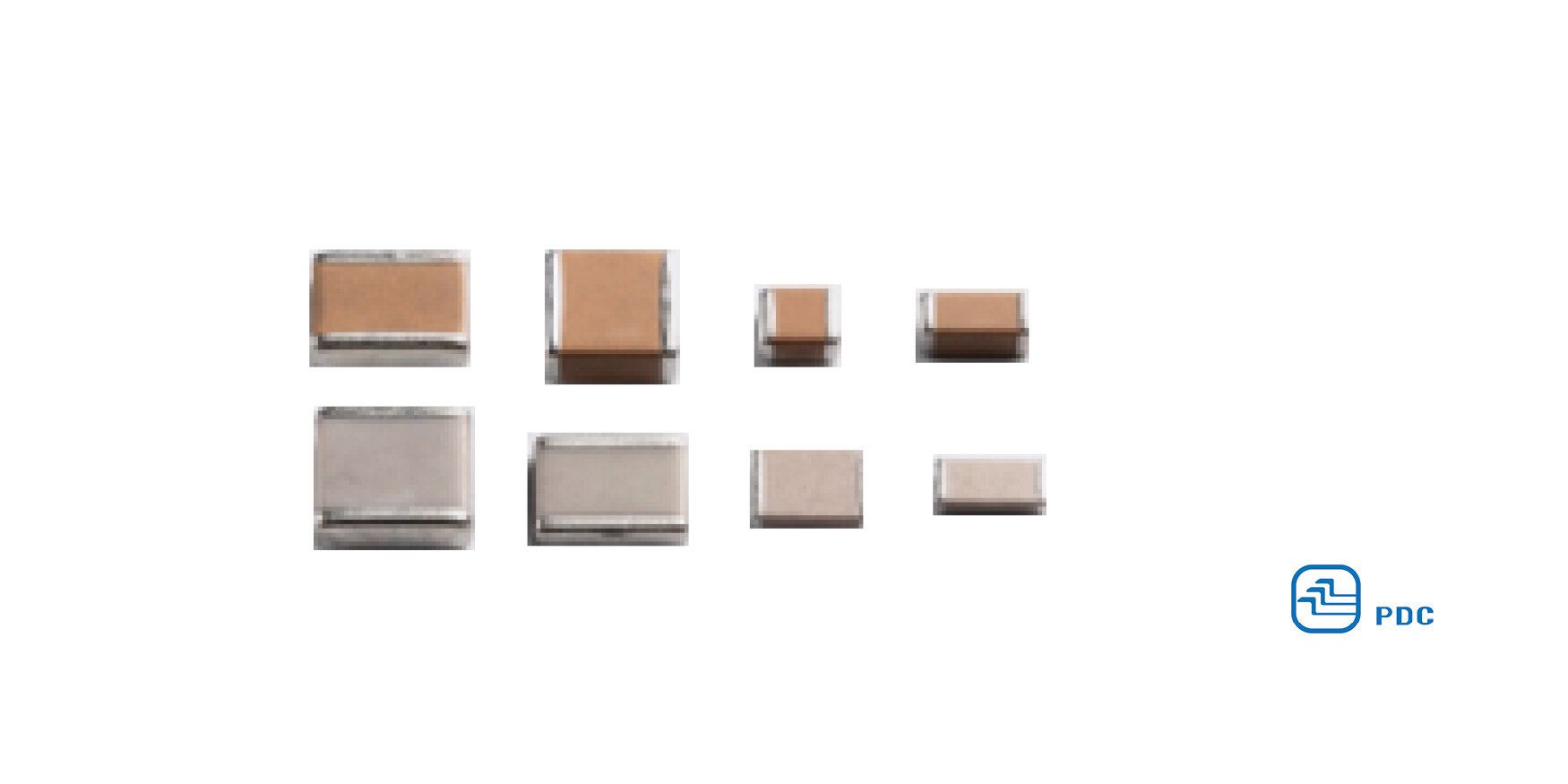

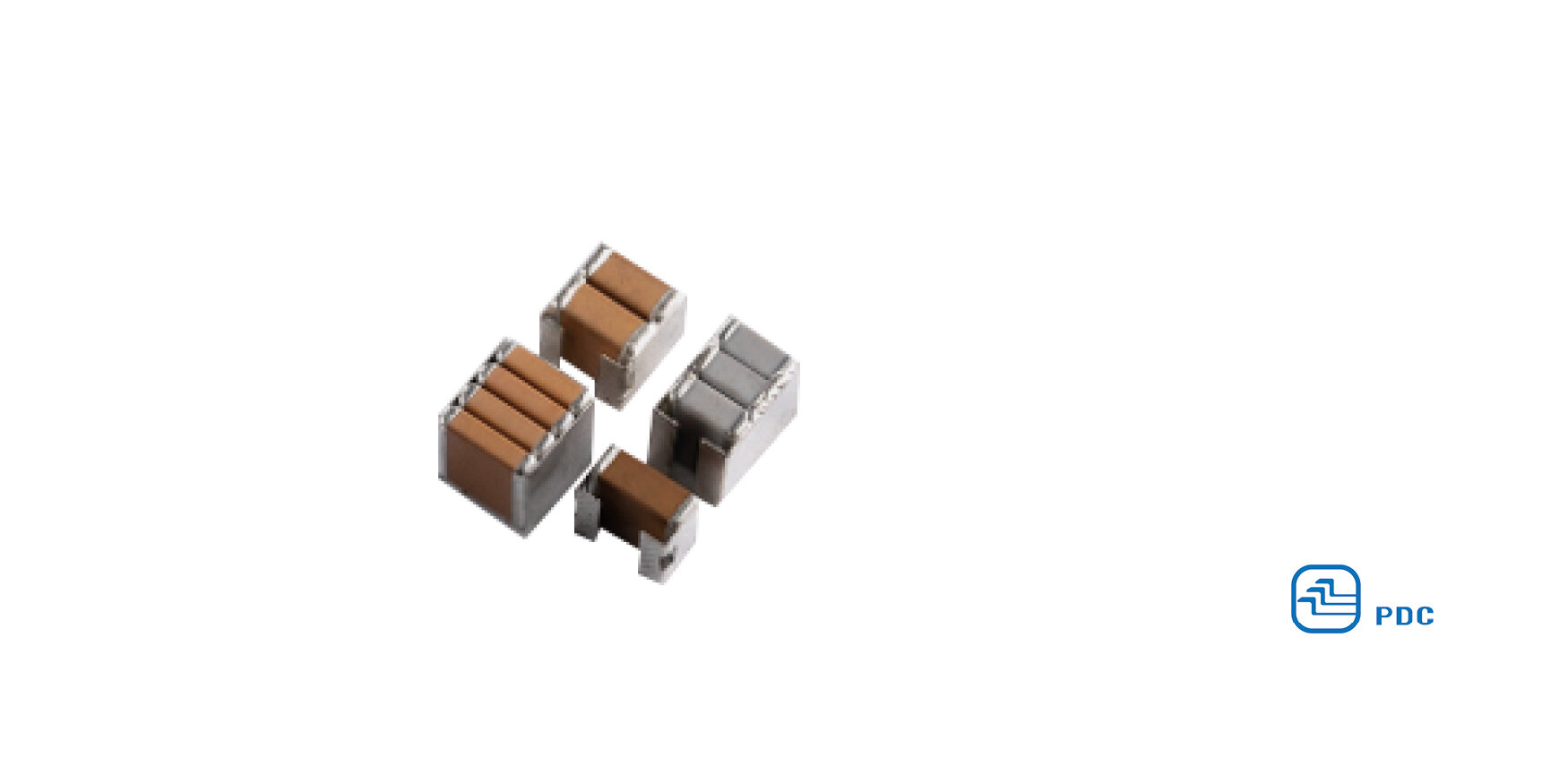

- FE series provides 1210~2225 sizes, small size and high capacitance, with excellent heat dissipation and vibration resistance
- Unique structure achieves high reliability. With metal lead , thermal and mechanical stress can be absorbed. ESR, ESL are small, and are most suitable for rectified power supplies operating at high frequencies
Features
PDC is a manufacturer of special MLCC. Its application markets mainly include automotive, industrial, networking, new energy, aviation, medical products. PDC provides special MLCC series, including safety-certified MLCC, high-voltage MLCC, medium-voltage high-capacitance MLCC, automotive certification, stacked MLCC, high reliability and other high-power special MLCC.
- FK series can correspond to safety Y2/X1 class, FH series can correspond to safety X2 class, PDC safety products are designed for surge or lightning immunity and have the feature of high reliability and stability
Features
PDC is a manufacturer of special MLCC. Its application markets mainly include automotive, industrial, networking, new energy, aviation, medical products. PDC provides special MLCC series, including safety-certified MLCC, high-voltage MLCC, medium-voltage high-capacitance MLCC, automotive certification, stacked MLCC, high reliability and other high-power special MLCC.
Resistors

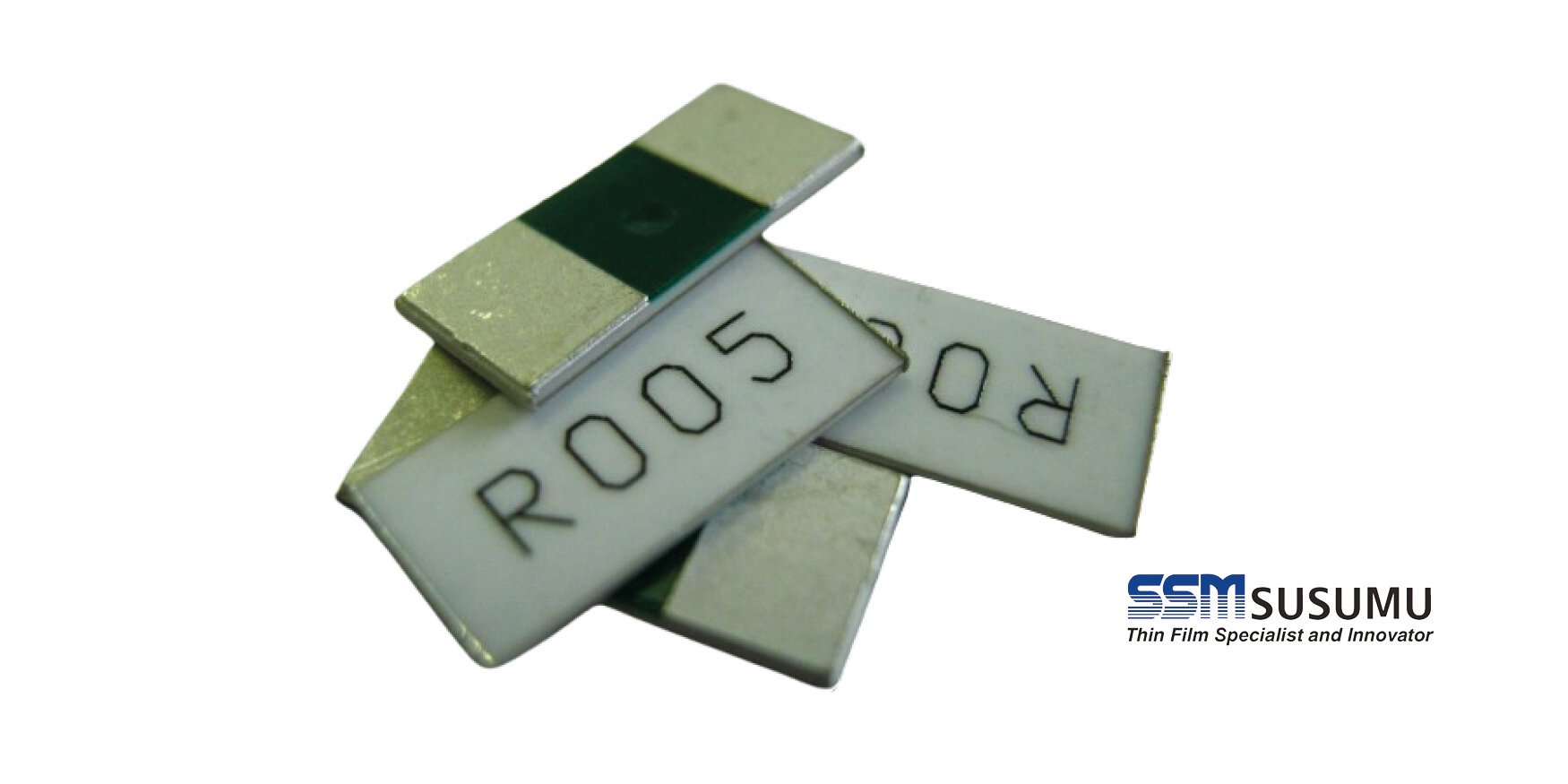

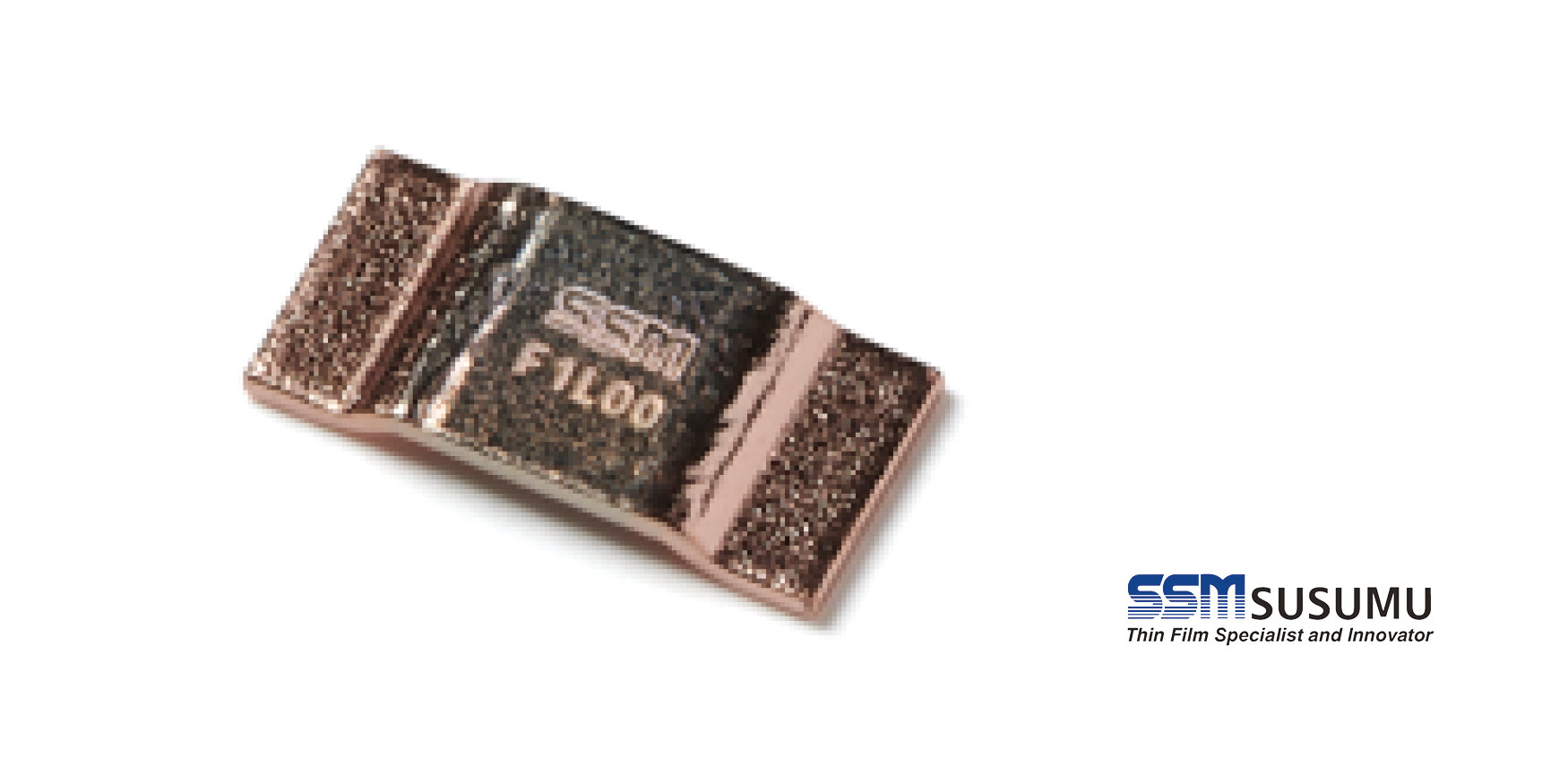

- They enable highly precise current measurements, thanks to their low tolerance (down to ±0.5%) and low TCR (down to ±25ppm/°C) at super low ohmic ranges (range from 0.2 mOhm to 5 mOhm)
- The trimming free technology and welding the shunt with a vacuum electron beam enables even lower EMF values and a highly consistent performance accross lots
- Available in 2512, 3920 and 5930 sizes, rated power up to 15W
About Susumu
With more than 60 years of experience, Susumu leverages its core competencies to develop new products for high end markets. Susumu has three factories in Obama, Itoigawa, and Minamiterashima in Japan, as well as a backend factory in China.
Today, more than two-thirds of Susumu's revenue comes from the high-end market segment, which consists of the automotive, industrial, and measurement technology sectors
- The „face down“ construction improves thermal management and avoids hot spot formation
- An adhesive resin functions as a buffer and improves reliability by alleviating mechanical stress caused by CTE mismatch and avoiding terminal cracks
- Available with terminals on the short or long side
- Sizes from 0402 to 5930, resistance range 1 mOhm – 1 Ohm
About Susumu
With more than 60 years of experience, Susumu leverages its core competencies to develop new products for high end markets. Susumu has three factories in Obama, Itoigawa, and Minamiterashima in Japan, as well as a backend factory in China.
Today, more than two-thirds of Susumu's revenue comes from the high-end market segment, which consists of the automotive, industrial, and measurement technology sectors.
-

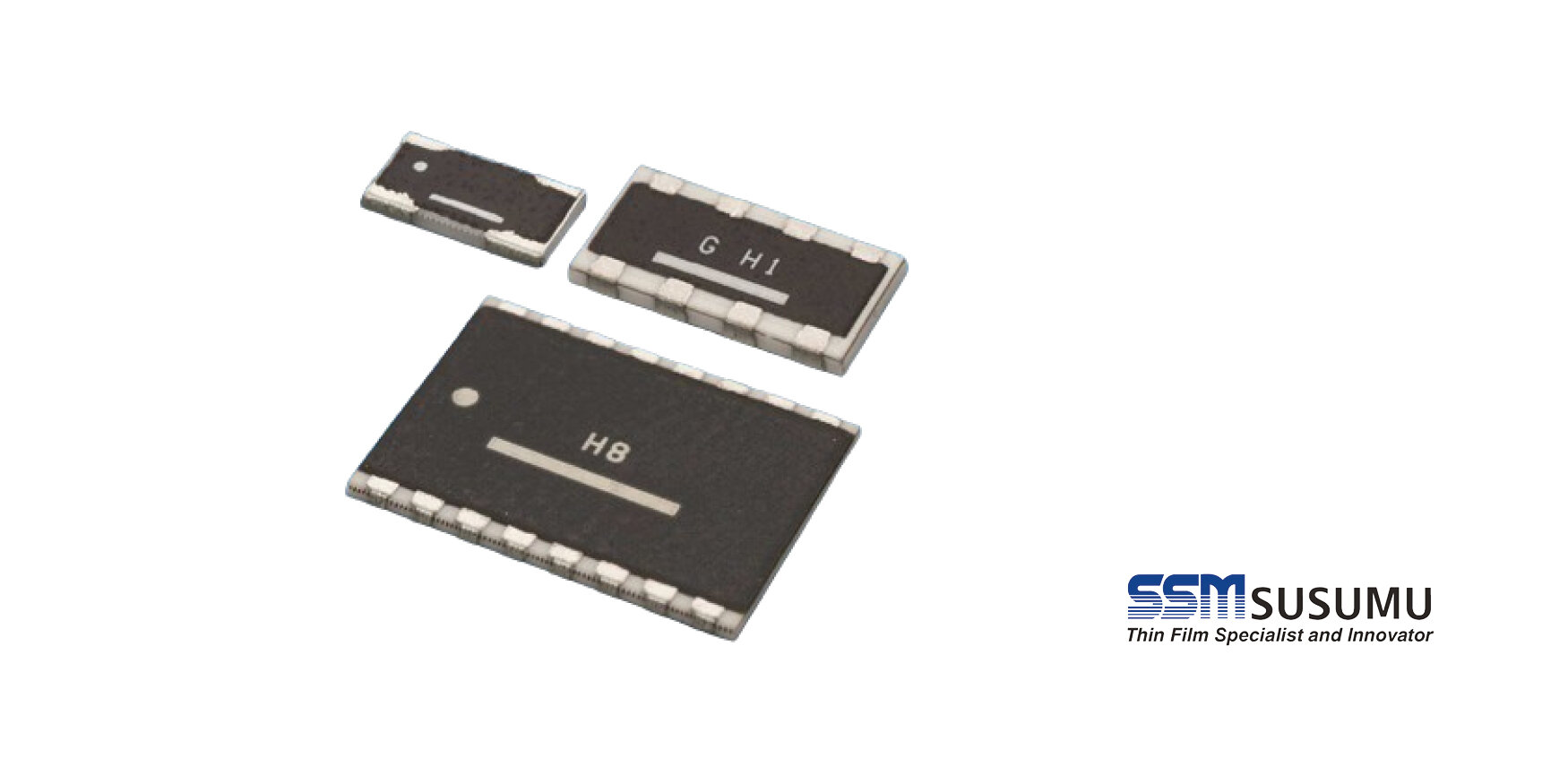

Thin film precision resistor network - RM series
-
Tracking tolerances down to ±0.01%, tracking TCR down to ±1ppm/°C
-
Versatile number of resistors in package, starting from 2 and higher
-
Ultrahigh reliability, less than ±0.1% resistance drift after 10.000 hour test
-
Customized resistance values, sizes and packages available
About Susumu
With more than 60 years of experience, Susumu leverages its core competencies to develop new products for new markets. Susumu has three factories in Obama, Itoigawa, and Minamiterashima in Japan, as well as a backend factory in China. Today, more than two-thirds of Susumu's revenue comes from the high-end market segment, which consists of the automotive, industrial, and measurement technology sectors
- Designed to bride the gap between traditional thick film and metal foil shunts, offering a balance of performance and cost-effectiveness
- Resistance range 10 mOhm to 910 mOhm
- Available from 0603 to 2512, tolerances down to ±0.5%
About PDC
Prosperity Dielectrics Co., Ltd. (PDC), is a Taiwanese manufacturer specializing in passive electronic components. Notably, PDC is among the few manufacturers that produce their own ceramic dielectric powders, ensuring consistent quality and enabling the development of high-end applications.
PDC's MLCC offerings encompass various specialized series, such as high-voltage, safety-certified, stacked, and automotive-grade capacitors.
In the realm of chip resistors, PDC provides a comprehensive range that includes current sensing, precision thick film, surge, sulfur-resistant, high power, and high voltage resistors.

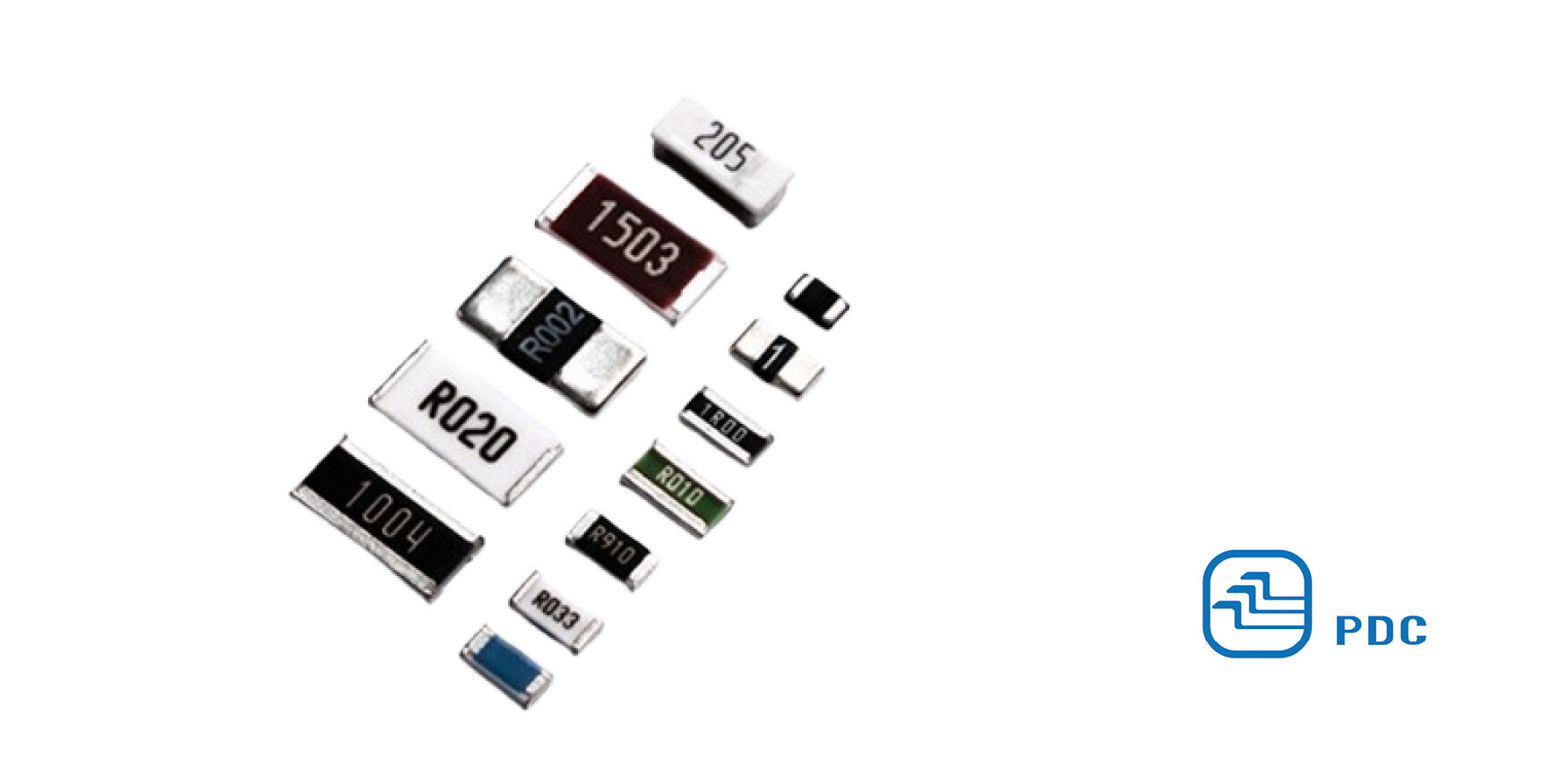

- FPS series: thick film resistors available with double/triple rated power
- FVS series: UL-certified safety chip resistors
- FMF series: metal strip low resistance resistors, resistance range 0.5 mOhm – 150 mOhm
- WFC series: wide terminal chip resistors, ideal for downsizing
About PDC
Prosperity Dielectrics Co., Ltd. (PDC), is a Taiwanese manufacturer specializing in passive electronic components. Notably, PDC is among the few manufacturers that produce their own ceramic dielectric powders, ensuring consistent quality and enabling the development of high-end applications.
PDC's MLCC offerings encompass various specialized series, such as high-voltage, safety-certified, stacked, and automotive-grade capacitors.
In the realm of chip resistors, PDC provides a comprehensive range that includes current sensing, precision thick film, surge, sulfur-resistant, high power, and high voltage resistors.
Thermal Management

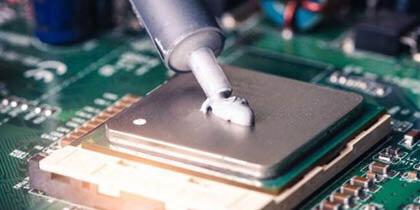

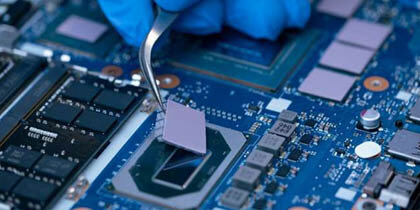

FORMAPad® is specially formulated to offer excellent wetting and minimum pump out property with tacky texture. Dispensable and screen printable consistency makes easy in production environment. Offers excellent stability over a wide temperature range with high thermal conductivity and low thermal resistance. It’s a high-performance thermal grease designed to meet the thermal, reliability and low-price requirements of high-end chipset, graphic processors trend ever-faster clock speeds. RoHS compliant and halogen-free.
Features
- High thermal conductivity (2.6 W/m-K),Tacky, Thixotropic paste
- Excellent wetting property
- RoHS compliant-halogen Free
- Thin bond line thickness <25 micron

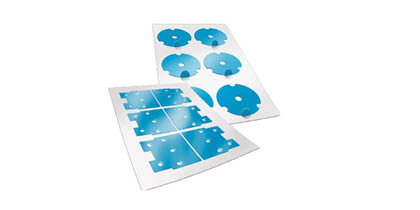

The COOLPhase® series is made up of non-silicone high-performance polymer matrix materials that have exceptional wettability, reducing the thermal contact resistance between heat-generating and heat-dissipating surfaces. At operating temperatures between 50 °C and 60 °C, this tough PCM material will soften, naturally flowing to fill the air gaps between contact surfaces and providing long-term reliability with no degradation like those found in thermal pastes.
Features
- h-Thermal condutivity
- Super low contact resistance
- Easy to assemble
- RoHs & REACH compliant

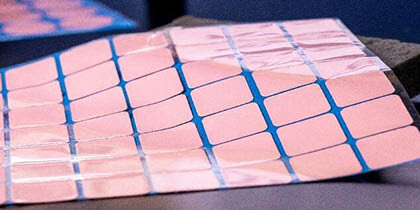

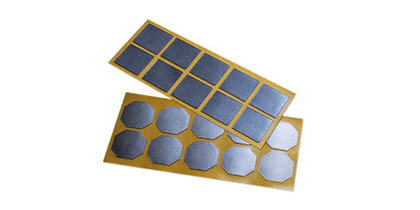

COOLPad® is a line of high-performance thermal interface pads, developed to address the industry’s growing requirements for easy application, low levels of thermal resistance and high conformability, even at the most challenging and uneven surfaces. COOLPad® is especially suitable for applications with low clamping forces between the heat generating component and the heat dissipation surface.
Features
- Low thermal resistance
- High conformability
- Electrically insulating
- RoHS & REACH compliant
FlexGRAF® is a thermal interface material with superior thermal conductivity, both in and trough-plane, which enables a homogenous thermal distribution inhibiting the formation of hot-spots. Its flexible nature allows it to be cut into diverse geometries and its good compressibility reduces thermal contact resistance, making it a good choice for applications that require long-term performance. FlexGRAF® is RoHS and Reach Compliant.
Features
• High operating temperature resistance up to 400°C
• Very high heat dissipation
• Might be laminated with a electrical
• Insulation foil to offer dielectric resistance
ThermalTAPE® is a thermally conductive double sided adhesive tape with a very high mechanical strength and good thermal transfer performance. It is made from a fiber glass base combined to ceramic nanoparticles. ThermalTAPE® uses an acrylic PSA Adhesive with superior adhesion properties and can be used on a wide variety of substrates such as aluminum, Plastics, PMMA, etc.
Features
- High mechanical and adhesive strength
- To attach heat-sinks to aluminum or
- FR4 PCBs, replacing screws,
holders and fasteners - Electrically insulating
- RoHS and REACH compliant
- Good thermal conductivity
Semiconuctors

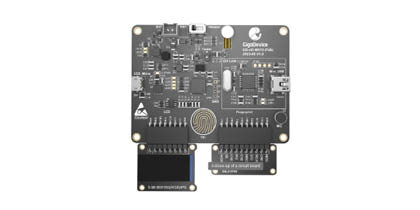

The xD (Multidimension) series evaluation platform utilizes Multiple GD products, provides possibility of Multiple HW/SW combinations, and aims to support evaluation of Multiple application in one kit.
GD-xD-W515-EVAL including:
- Main control board with GigaDevice
- GD32W515PIQ6 MCU
- GD30BC2416 BMIC
- GD30LD1002 LDO
- GD25Q128E NOR Flash
- GD-Link Debugger. etc.
Fingerprint Board with GigaDevice GSL6157 Fingerprint sensor
- Display board with 0,96-inch OLED
Sensors

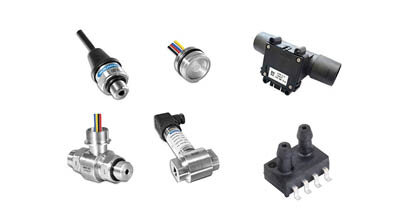

Pressure sensors
Manufacturer: CF-Sensor, Micro Sensor
- CF-Sensor: inexpensive analogue and digital piezoresistive PCB-MEMS-pressure sensors for non-corrosive gases or air as well as for liquids.
- Micro Sensor: wide range of pirzoresistive pressure sensors and pressure-transmitter for industrial applications like industrial control and automation, level sensors and submersible probes for efficient tank level measuring.
Flow Sensors
Manufacturer: CF-Sensor
- Gas-Flow sensor, air-flow sensor for industrial or home automation.
Manufacturer: Azoteq
- Based on supplier own technology.
- Well-known capazitive touch solutions.
- Buttons, sliders, wheels, trackpads.
New: Inductive touch solutions
- Also based on supplier own technology.
- Robust against EMI and salt water.
- Thickness of cover is almost unlimited.
- Light finger pressure is necessary.

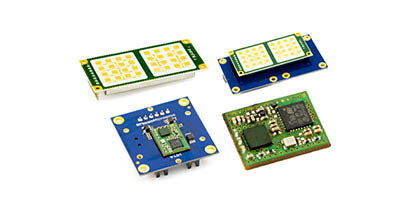

Manufacturer: RFbeam, Nisshinbo Micro Devices, OmniPreSense
Frequency range: 24 GHz and 61 GHz Module types:
- Analog modules
- Digital modules with internal signal processing
- Measurement of speed, distance and angle possible
Applications:
- Level metering
- Movement detectors for lighting
- Home security (burglar alarm)
- Traffic control
- Automated guided vehicle system

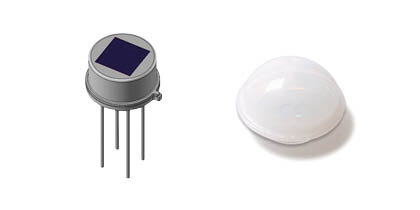

IR-Sensor (Pyro sensor, PIR)
- analog and digital types (with I2C or UART interface)
(evaluation boards available) - TO-5 housing, 2 and 4 elements, SMD available
- various Fresnel lenses available
Applications: movement detector and presence detector

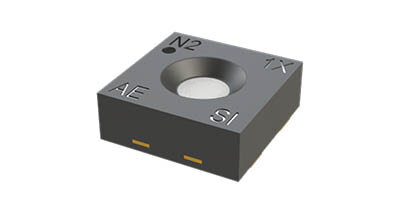

ENS21x High Performance Family of Digital Humidity and Temperature Sensors
The ENS21x sensors offer industry-leading accuracy (up to ±0.1 °C / ±0.8 % RH) and fast response times, making them ideal for home appliances, HVAC systems, cold chain monitoring, personal health devices, and industrial automation.
Housed in a compact QFN4 package, they feature an I²C interface and provide pre-calibrated digital outputs (Kelvin, % RH). ENS21x sensors are also compatible with ScioSense’s gas sensor portfolio.
- Catalytic Sensors
- Infra-red gas sensors
- Solid Plymer sensors
- Metal Oxide sensors
Manufacturer: Everlight, Delta, Sciosense, Azoteq, Nisshinbo, Panasonic

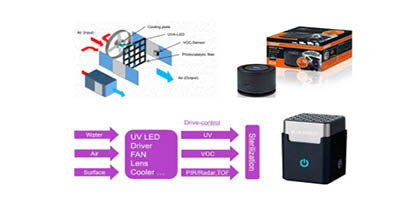

Features
- No maintenance and inactivation of bacteria
- Protozoa, viruses and algea (Filter)
- Energy efficient and infinite on/off switching > battered, wearable solutions
- Ecologically friendly (no produce hazardous air pollutants > Ozone...)
- Contain no mercury
Applications:
Air conditioning, Odour and VOC removal generation
Adventages of UV LED vs. Traditional Mercury Vapor Lamps:
- Consistent UV spectral output for a given temperature
- Flexibility: broad range of wavelengths
- Package from: smaller and more robust, SMD available
- No degradation of intensity with toggling
- Contain no mercury, obviating need for dis [1]posal/recycling
- Energy efficient and infinite On/Off Swit[1]ching battered, portable solutions with instant full light output
- Efficiency UV-A LED 30%
SmartMotion: Motion at Every Performance Level
ICM-45605/ICM-45686
Mobile, Wearless, TWS, AR/VR
- Industrys lowest power consumption
- Wide FSR up to ±32g and ±4000dps (ICM-45686)
- 6-axis LNM: 420µA; 3-axis UPLM: 15µA
- Balanced Gyro technology enables supreme vibration rejection and temperature stability
ICM-42688-P AR/VR/MR, Robotics
- Lowest Noise: Gyro LNM 2.8 mpds √Hz
- High Precision: 19-bits gyro data
- Embedded features: tilt dedection, tap detection, significant motor detection and pedometer
ICM-40609-D Flight Control and Image Stabilization in Drones
- Lowest sensitivity and offest stability error over temp.
- Up to 32Hz ODR for low system latency
- High accel FSR up to ±32g
ICM-42670-P Wearables, TWS, Gaming, IoT Best performance / cost balance
- Lower Power: 9.8µA (ALP mode @25Hz)
- Thinnest package: 0.76mm
- Embedded features: APEX pedometer, built-in gestures
