SMD reflowable

Overview of the advantages of SMD Type Vibration Motors:

  • Zylinder Type Diameter Ø3mm and Ø4mm
  • Length between 10,9mm and 14,3mm
  • Rated Voltage 1,3V, 2,7V and 3V
  • Vibrating force in X-Y direction
  • Tape&reel packaging for fully automated processing
  • Other versions on request
  • Automotive solutions for haptic feedback on request

There are 5 of 5 products shown.

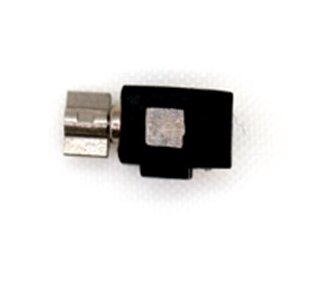

BLT-3211H

  • Height [mm]: 9.5 mm
  • Rated Voltage [V]: 1.6 V
  • Max. Rated Speed [rpm]: 16,000 rpm
  • Max. Rated Current [mA]: 80 mA
  • Manufacturer: Baolong
BLT-3211H

BLT-4311

  • Height [mm]: 10.5 mm
  • Rated Voltage [V]: 2.7 V
  • Max. Rated Speed [rpm]: 14,000 rpm
  • Max. Rated Current [mA]: 75 mA
  • Manufacturer: Baolong
BLT-4311

BLT-4315B

  • Height [mm]: 12.7 mm
  • Rated Voltage [V]: 2.3 V
  • Max. Rated Speed [rpm]: 8,500 rpm
  • Max. Rated Current [mA]: 130 mA
  • Manufacturer: Baolong
BLT-4315B

BLT-5513

  • Height [mm]: 12 mm
  • Rated Voltage [V]: 1.3 V
  • Max. Rated Speed [rpm]: 9,000 rpm
  • Max. Rated Current [mA]: 110 mA
  • Manufacturer: Baolong
BLT-5513

BLT-5513CD6

  • Height [mm]: 12 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Manufacturer: Baolong
BLT-5513CD6
Height [mm]

Rated Voltage [V]

Max. Rated Speed [rpm]

Max. Rated Current [mA]
