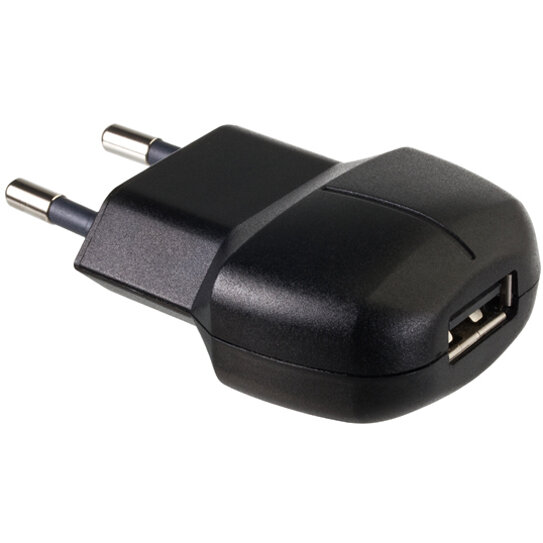

PP series, worldwide, USB output

Compared to conventional devices, switching power supplies are around 50% lighter, suitable for worldwide use. Thanks to the wide-range input, the devices can be operated on all standard sockets worldwide. Thanks to the low device leakage current of ≤ 10μA, which is unique for devices in protection claβ II, they are suitable for medical applications. The output line can be fitted with the desired plug-in attachment as required.

  • Input voltage: 100-240 VAC ±10% / 50-60 Hz
  • High voltage resistant: 4 kV
  • Temperature range:
    Operation: 0°C...+40°C
    Storage: -40°C...+70°C
  • Device leakage current: ≤ 10μA
  • Standard: EN60950/VI
  • Output line: -
  • Not included in the delivery:
    For plug-in attachments for the secondary cable, see the power supply acceβories chapter

There are 10 of 38 products shown.

5385-FW8001M/0.75

  • Description: FOX18-XM/7.5V
  • Length [mm]: 77 mm
  • Width [mm]: 50 mm
  • Height [mm]: 34 mm
  • Voltage [V]: 7.5 V
  • Current [A]: 2.4 A
  • Manufacturer: FRIWO
5385-FW8001M/0.75

5401-FW8030M/05

  • Description: FOX30-XM/5V
  • Weight [g]: 0.187 g
  • Length [mm]: 90 mm
  • Width [mm]: 55 mm
  • Height [mm]: 34 mm
  • Voltage [V]: 5 V
  • Current [A]: 5 A
  • Manufacturer: FRIWO
5401-FW8030M/05

5383-FW8001M/05

  • Description: FOX18-XM/5V
  • Length [mm]: 77 mm
  • Width [mm]: 50 mm
  • Height [mm]: 34 mm
  • Voltage [V]: 5 V
  • Current [A]: 3 A
  • Manufacturer: FRIWO
5383-FW8001M/05

5365-FW8000M/05

  • Description: FOX12-XM/5V
  • Length [mm]: 75 mm
  • Width [mm]: 31.5 mm
  • Height [mm]: 41 mm
  • Voltage [V]: 5 V
  • Current [A]: 2.2 A
  • Manufacturer: FRIWO
5365-FW8000M/05

5347-FW8002M/05

  • Description: FOX6-XM/5V
  • Length [mm]: 55 mm
  • Width [mm]: 31.5 mm
  • Height [mm]: 41 mm
  • Voltage [V]: 5 V
  • Current [A]: 1.4 A
  • Manufacturer: FRIWO
5347-FW8002M/05

5402-FW8030M/06

  • Description: FOX30-XM/6V
  • Weight [g]: 0.187 g
  • Length [mm]: 90 mm
  • Width [mm]: 55 mm
  • Height [mm]: 34 mm
  • Voltage [V]: 6 V
  • Current [A]: 4.2 A
  • Manufacturer: FRIWO
5402-FW8030M/06

5384-FW8001M/06

  • Description: FOX18-XM/6V
  • Length [mm]: 77 mm
  • Width [mm]: 50 mm
  • Height [mm]: 34 mm
  • Voltage [V]: 6 V
  • Current [A]: 3 A
  • Manufacturer: FRIWO
5384-FW8001M/06

5366-FW8000M/06

  • Description: FOX12-XM/6V
  • Length [mm]: 75 mm
  • Width [mm]: 31.5 mm
  • Height [mm]: 41 mm
  • Voltage [V]: 6 V
  • Current [A]: 2 A
  • Manufacturer: FRIWO
5366-FW8000M/06

5348-FW8002M/06

  • Description: FOX6-XM/6V
  • Length [mm]: 55 mm
  • Width [mm]: 31.5 mm
  • Height [mm]: 41 mm
  • Voltage [V]: 6 V
  • Current [A]: 1.2 A
  • Manufacturer: FRIWO
5348-FW8002M/06

6256-FW8002.1M/07.5

  • Description: FOX6-XM/7.5V
  • Length [mm]: 55 mm
  • Width [mm]: 31.5 mm
  • Height [mm]: 41 mm
  • Voltage [V]: 7.5 V
  • Current [A]: 0.8 A
  • Manufacturer: FRIWO
6256-FW8002.1M/07.5
Description

Voltage [V]

Current [A]
