Active Components
Semiconductors
Photo Coupler
Standard and special customised solutions
High Voltage Device from EDI
Protection Device
We can support nearly all request from TVS-Diode, MLV, GDT and other combined solutions
HenLv
insulated power supplies

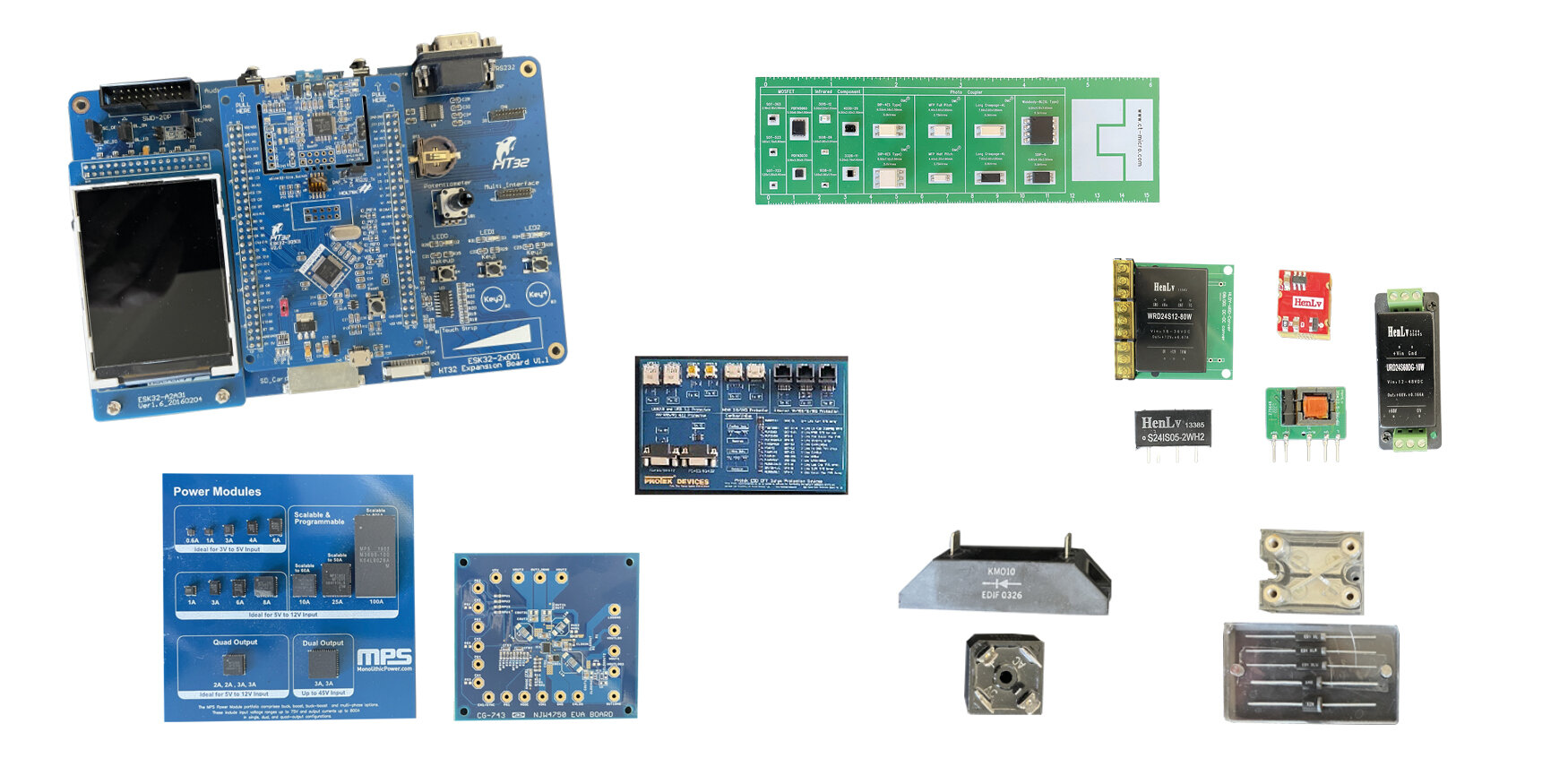

Different Power solution
MPS-Modules, PMIC and standard DC/DC converter DC/DC converter also available from Nisshinbo, ESMT, Giga Device and Holtek
32 Bit MCU Giga Device and Holtek From GD is only a STARTER-Kit and from Holtek a full EVB
Thermal Management

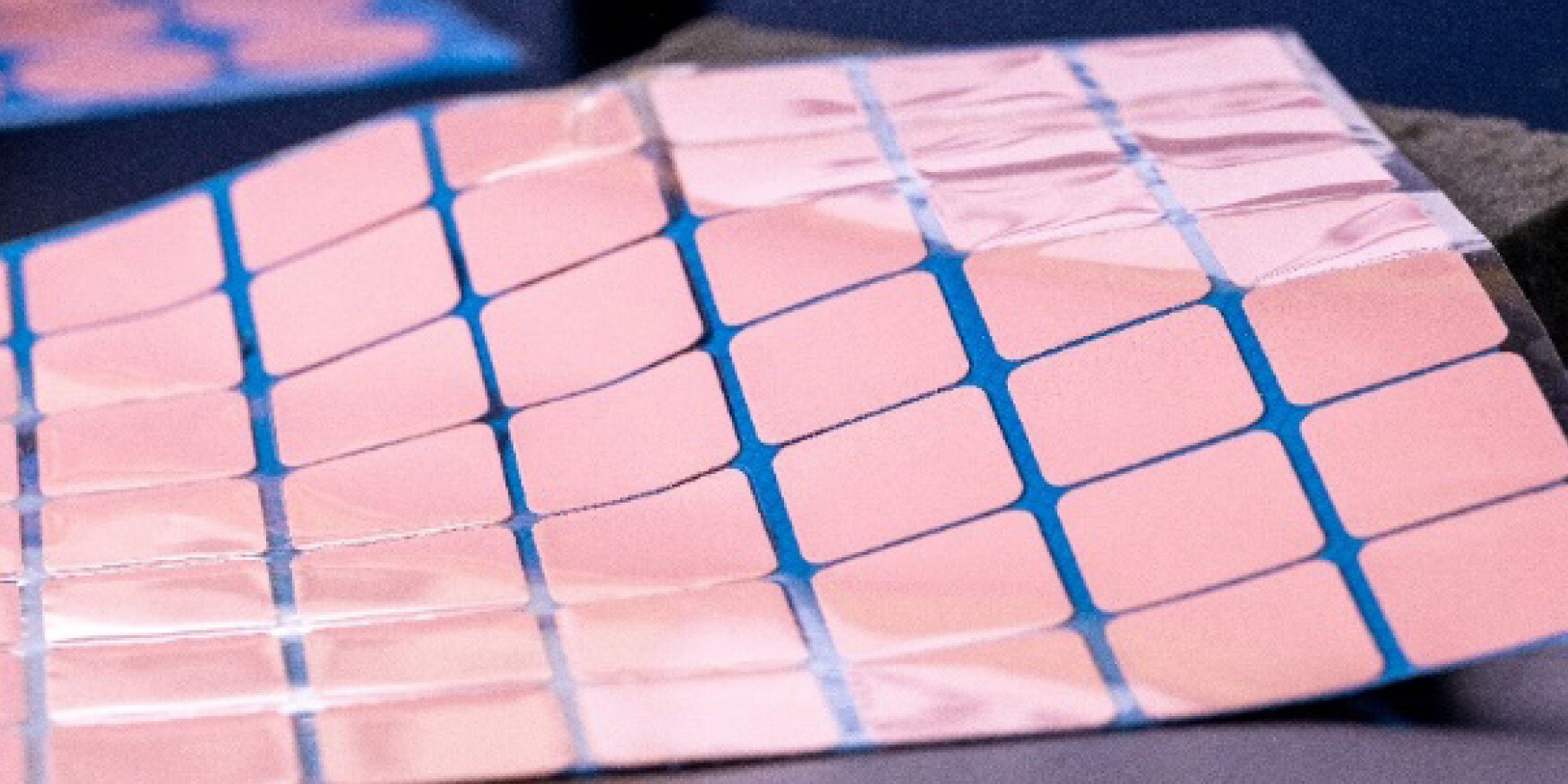

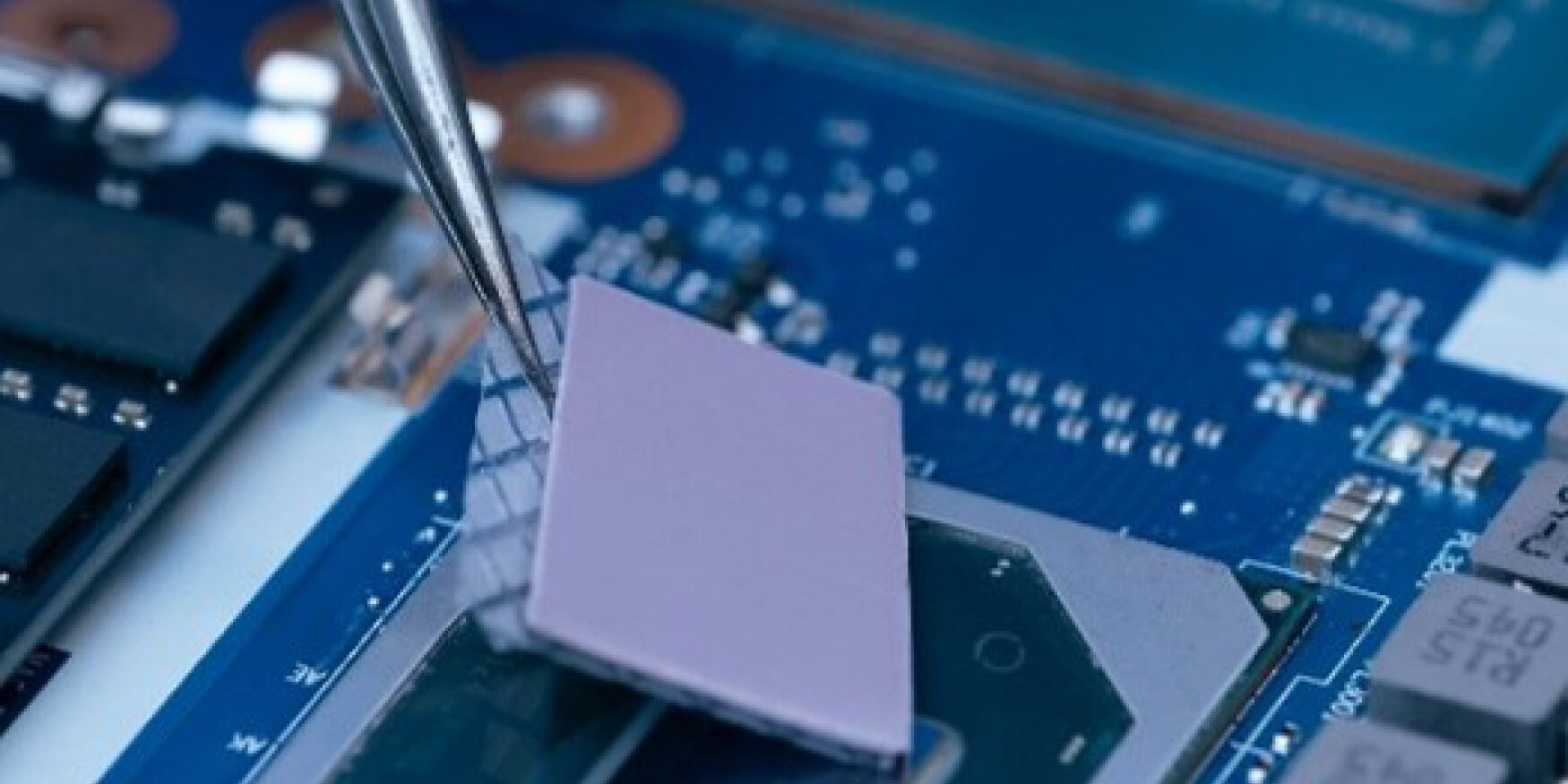

COOLPad® is a line of high-performance thermal interface pads, developed to address the industry’s growing requirements for easy application, low levels of thermal resistance and high conformability, even at the most challenging and uneven surfaces. COOLPad® is especially suitable for applications with low clamping forces between the heat generating component and the heat dissipation surface.
Features
Low thermal resistance
- High conformability
- Electrically insulating
- RoHS & REACH compliant
ThermalTAPE® is a thermally conductive double sided adhesive tape with a very high mechanical strength and good thermal transfer performance. It is made from a fiber glass base combined to ceramic nanoparticles. ThermalTAPE® uses an acrylic PSA Adhesive with superior adhesion properties and can be used on a wide variety of substrates such as aluminum, Plastics, PMMA, etc.
Features
High mechanical and adhesive strength
- To attach heat-sinks to aluminum or
- FR4 PCBs, replacing screws,
holders and fasteners - Electrically insulating
- RoHS and REACH compliant
- Good thermal conductivity

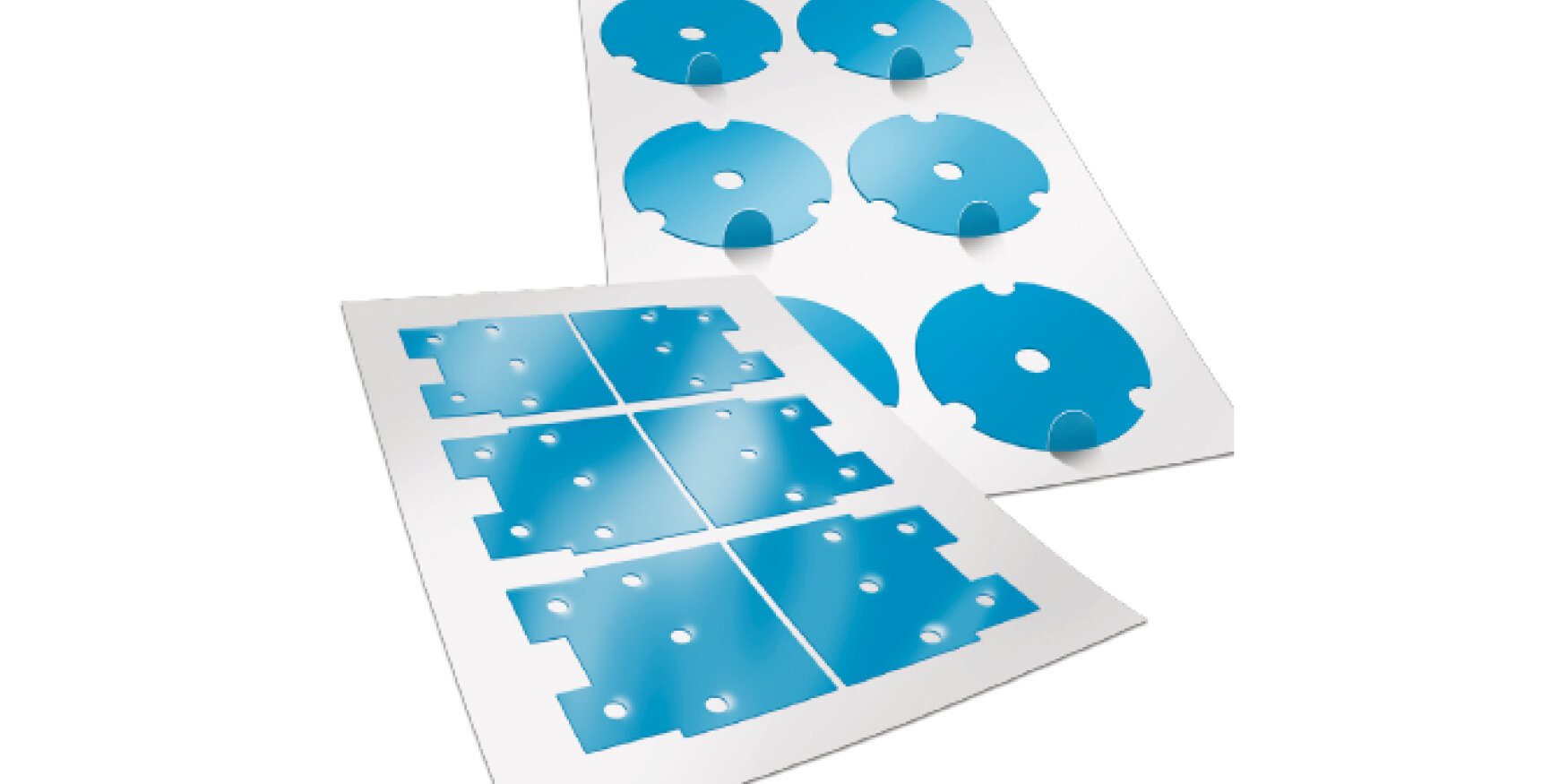

The COOLPhase® series is made up of non-silicone high-performance polymer matrix materials that have exceptional wettability, reducing the thermal contact resistance between heat-generating and heat-dissipating surfaces. At operating temperatures between 50 °C and 60 °C, this tough PCM material will soften, naturally flowing to fill the air gaps between contact surfaces and providing long-term reliability with no degradation like those found in thermal pastes.
Features
- High-Thermal condutivity
- Super low contact resistance
- Easy to assemble
- RoHs & REACH compliant

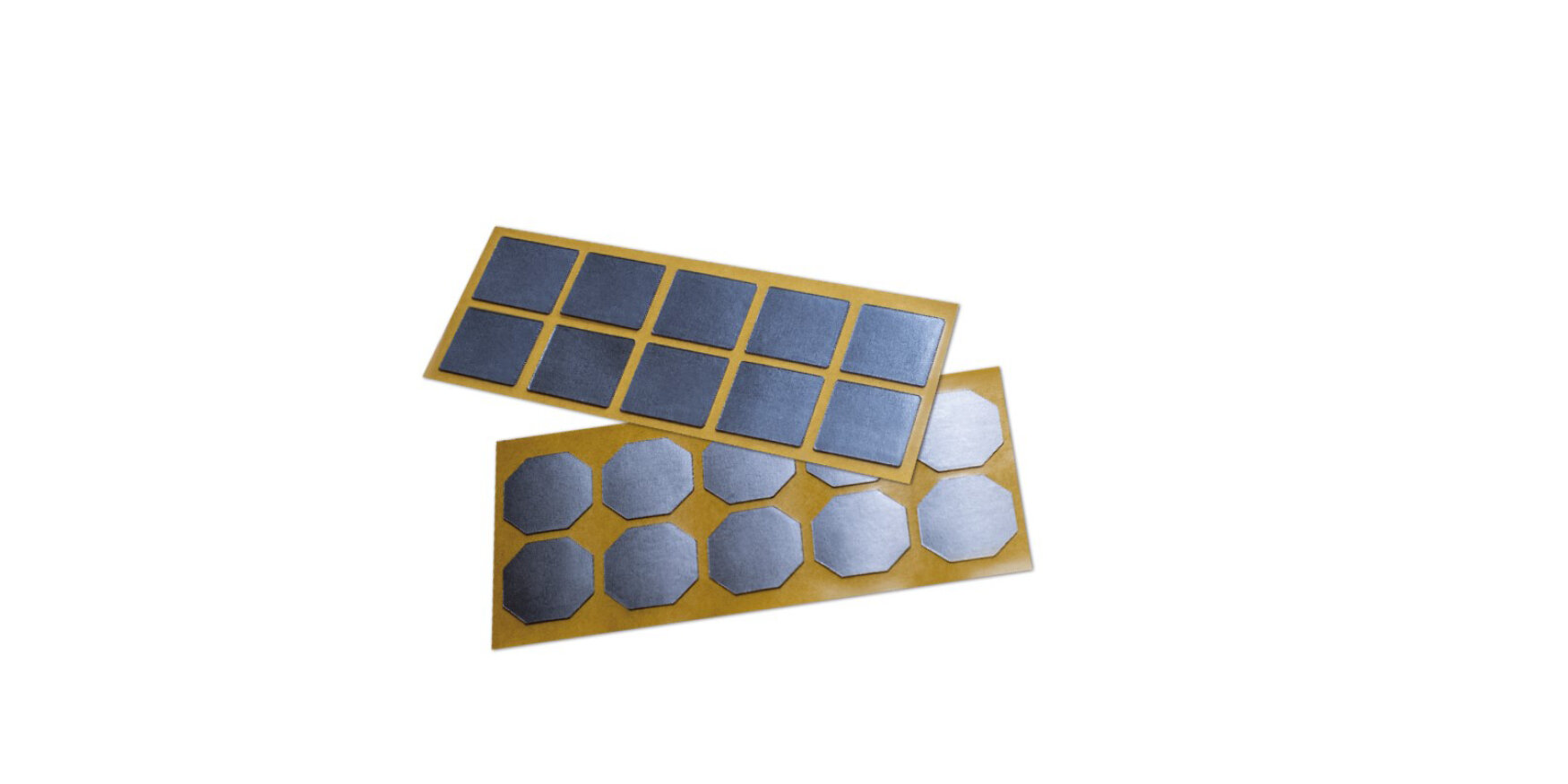

FlexGRAF® is a thermal interface material with superior thermal conductivity, both in and trough-plane, which enables a homogenous thermal distribution inhibiting the formation of hot-spots. Its flexible nature allows it to be cut into diverse geometries and its good compressibility reduces thermal contact resistance, making it a good choice for applications that require long-term performance. FlexGRAF® is RoHS and Reach Compliant.
Features
- High operating temperature resistance up to 400°C
- Very high heat dissipation
- Might be laminated with a electrical
- Insulation foil to offer dielectric resistance

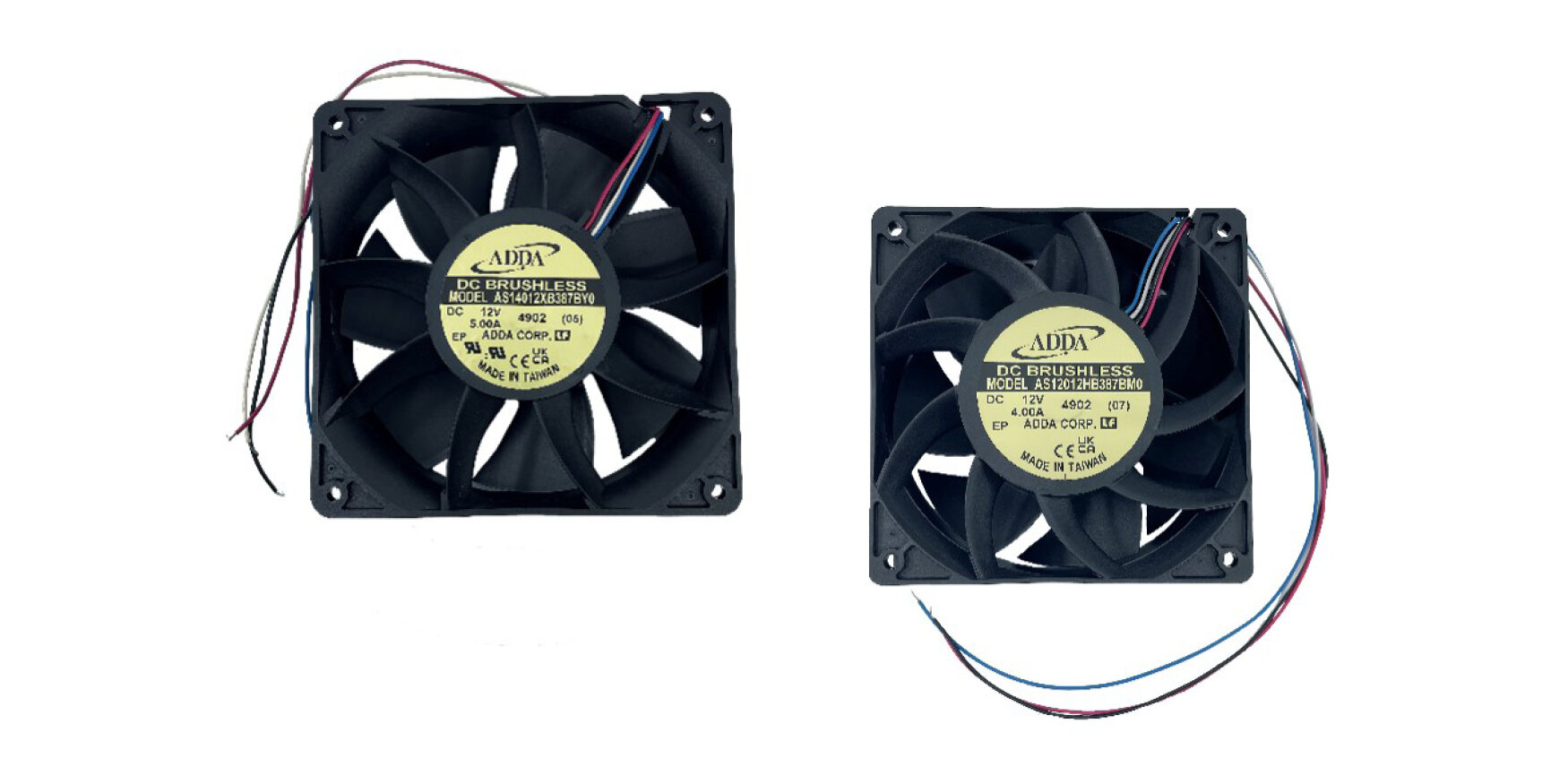

Manufacturer: ADDA
Part number: AS14012XB387BY0
Dimensions: 140 x 140 x 38 mm
Max. air volume: 324,313 CFM
Rated voltage: 12 V DC
Protection class: according IP68
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication
Manufacturer: ADDA
Part number: AS12012HB387BM0
Dimensions: 120 x 120 x 38 mm
Max. air volume: 210,29 CFM
Rated voltage: 12 V DC
Protection class: according IP68
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication

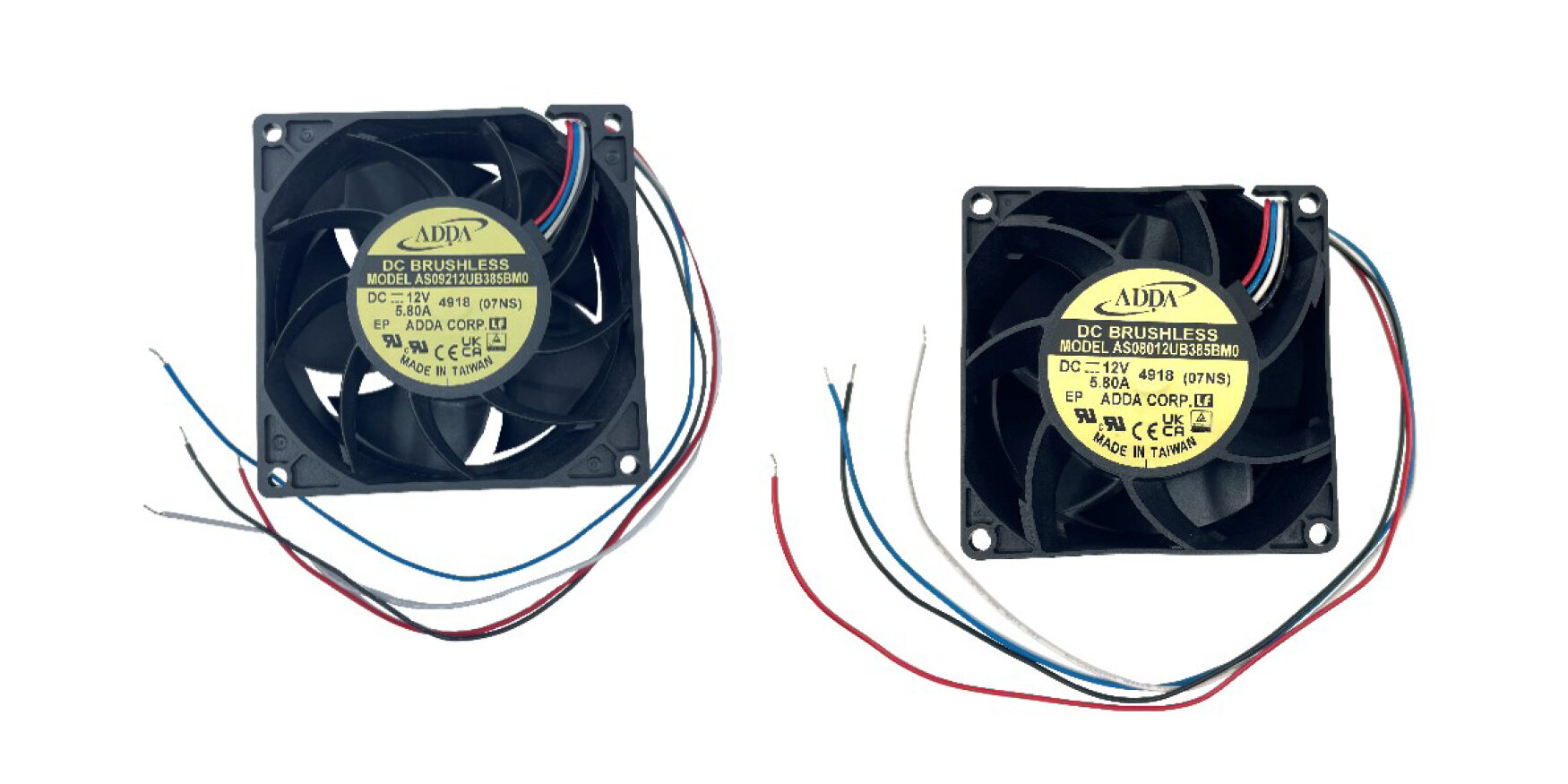

Manufacturer: ADDA
Part number: AS08012UB385BM0 (07NS)
Dimensions: 80 x 80 x 38 mm
Max. Air volume: 132,031 CFM
Rated Voltage: 12 V DC
Protection class: according IP68
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication
Manufacturer: ADDA
Part number: AS09212UB385BM0(07NS)
Dimensions: 92 x 92 x 38 mm
Maximum air volume: 178,910 CFM
Rated voltage: 12 V DC
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication
EC fans for cooling applications
Manufacturer: Sinwan
Part number: SE925PT-FR-HTB(Ex67Z)(MS)
Dimensions: 92 x 92 x 25,2 mm
Max. Air volume: 56 CFM
Rated Voltage: 110/220 V AC
Protection class: according IP67
EX protection according to DIN UL 60079
AC fan for cooling applications or industrial applications

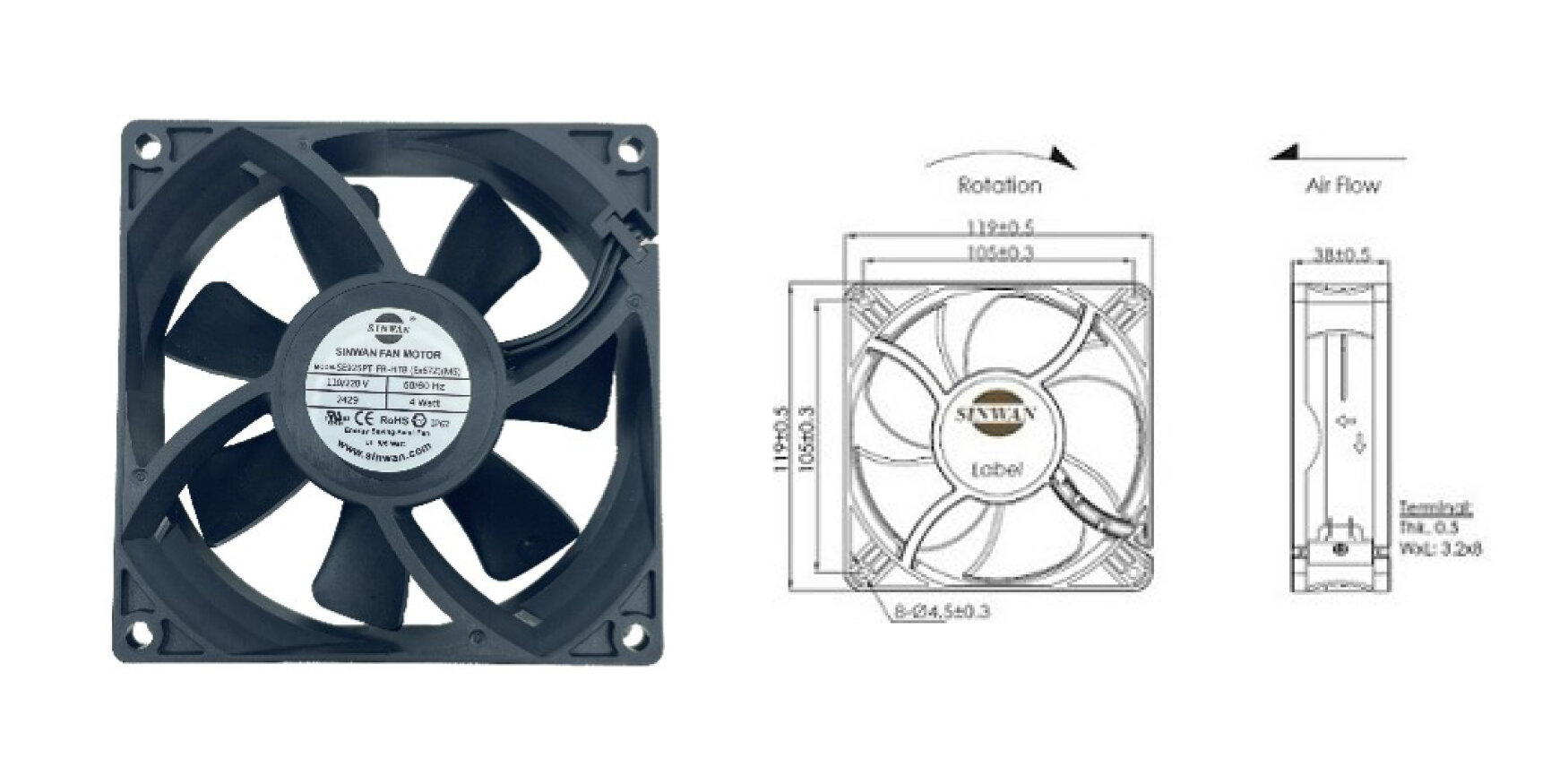

Manufacturer: Sinwan
Part number: S109PT-11-1TB(68)
Dimensions: 119 x 119 x 38 mm
Max. Air volume : 112 CFM
Rated Voltage: 115 V AC
Protection class: according IP68
Connectors & Cable Assembly

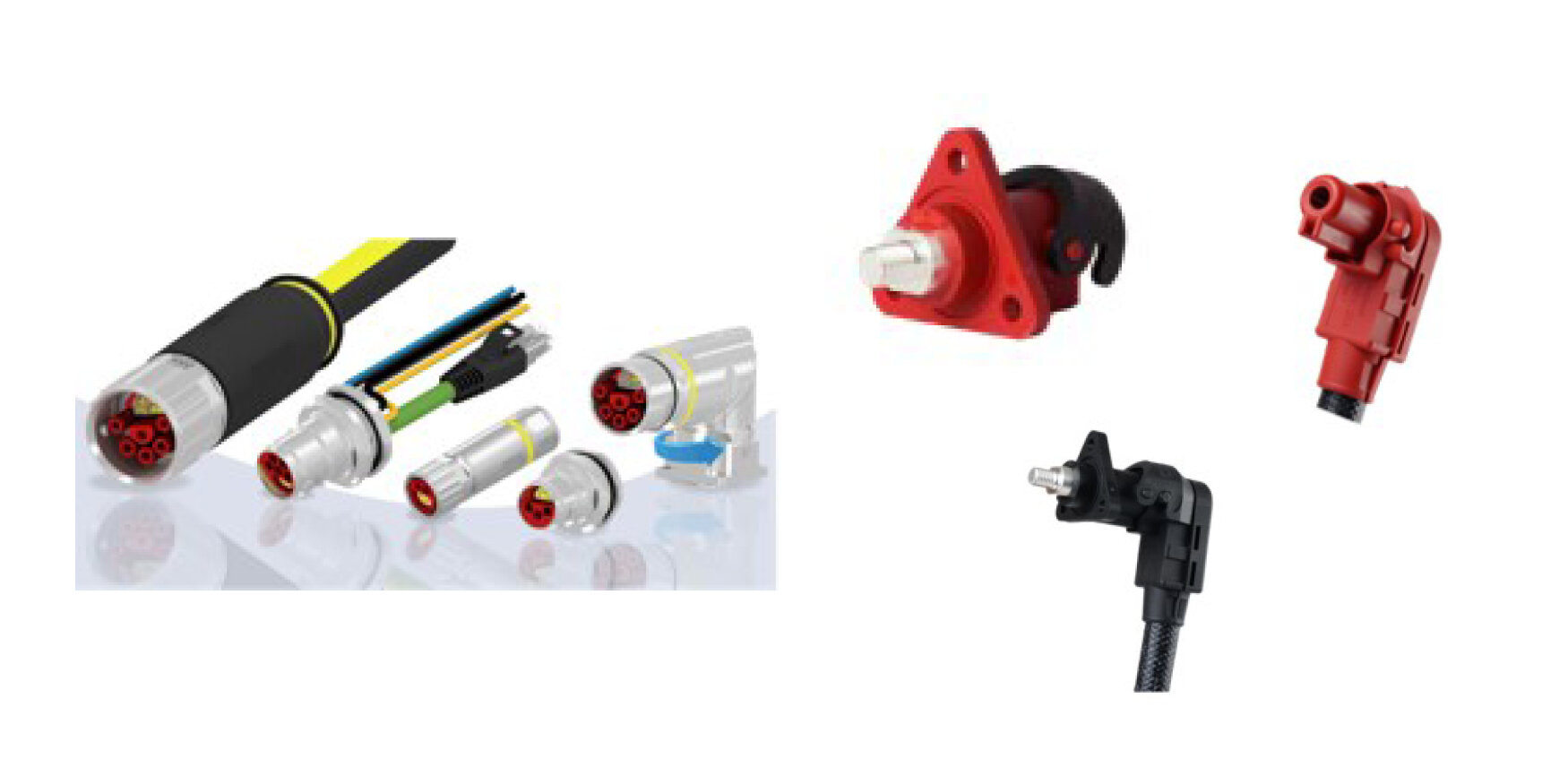

CONEC hybrid connectors
- Over molded connectors
- Connectors can be assembled
- Mounting flanges
- Sizes B12 / B17 / B23 / B40
- Front mounting square
Battery connector
- Protection class IP30 mated
- Rated current up to 200A / 40°C
- Rated voltage up to 1500V
- Coding: mechanical, coloured
- Visible locking protection
- Limit temperature from -40°C ... + 140°C
- Touch-protected
- Cable diameter 35mm² and 50mm²

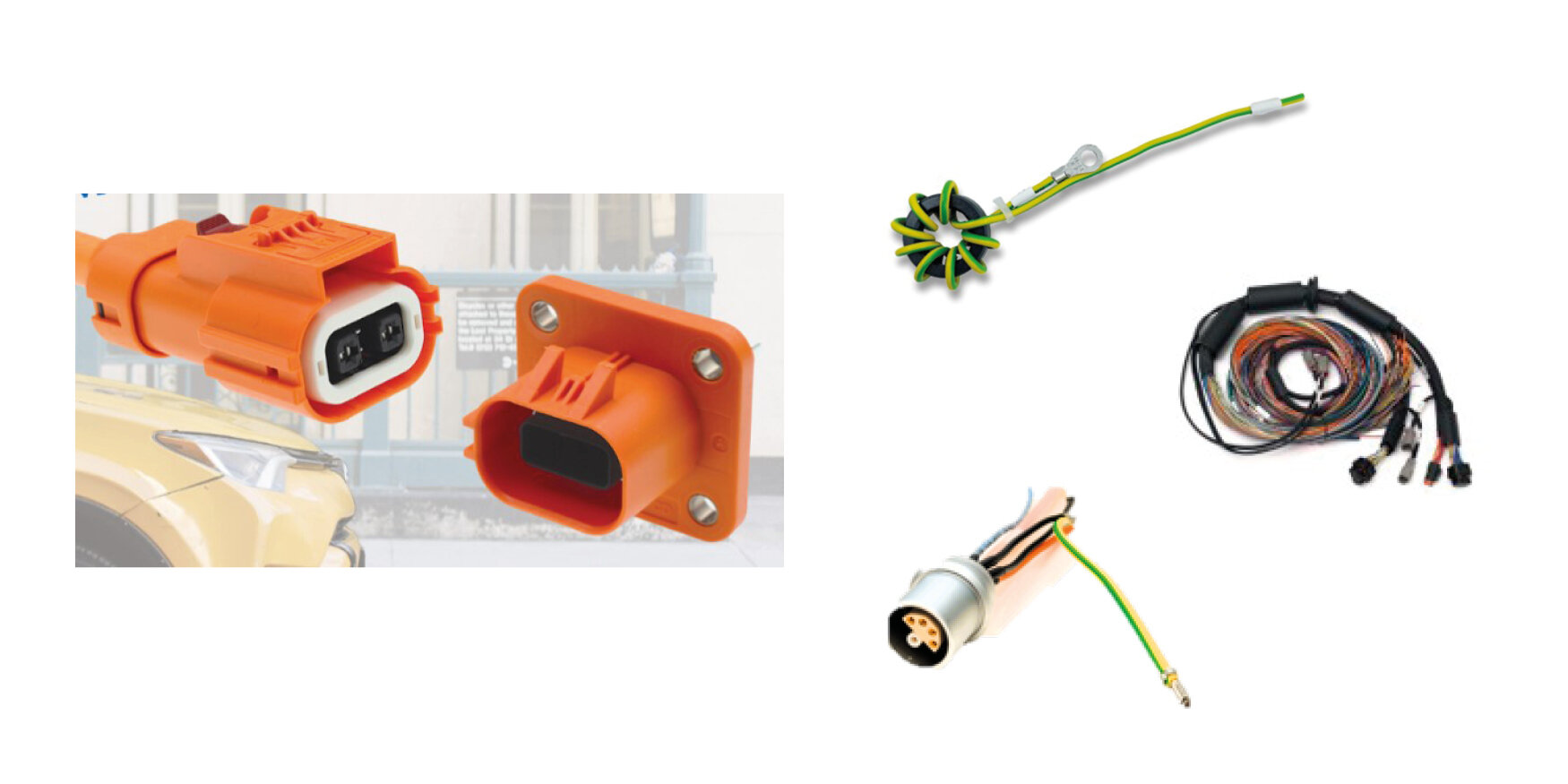

EXCEL|MATE
- Connectors for high voltage
- Electric vehicles (EV)
- EMC protection
- Easy installation
- Waterproof (IP protection classes)
- Industrial applications
Battery connectors
- Connectors with individual strands, Flat plug connector and silicone tube
- Ferrite wrapped with PE
- Various cable harnesses
EXCEL|MATE IEC Type 2 power connector
- Compatible with IEC 62196-1/2/3, IEC 61851-1
- Connector: EN17186
- Vehicle connector: CE, EV ready & UKCA
- 1-Phase: 250V | 20A, 32A
- 3-Phase: 480V | 20A, 32A
- Connector with shutter
