TT-7 Serie

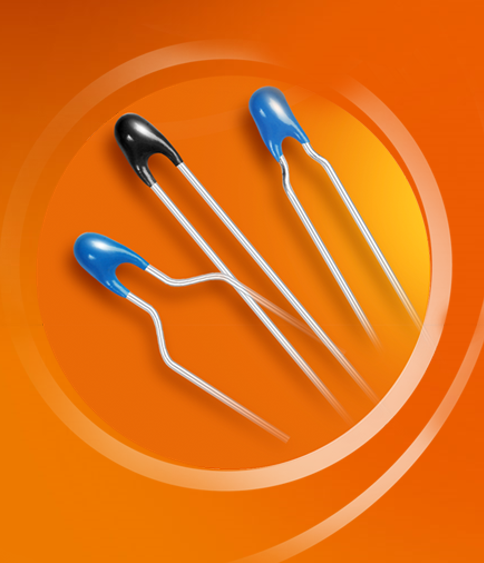

Characteristic: Lead frame NTC thermistor, low cost, epoxy coated. Point matched characteristics.
Specification
- Resistance Value at 25° [KOhm]: 1-500
- Resistance Tolerance [%]: 1, 2, 3, 5
- B Values (25/85) [K]: 3300K to 4390K, custom
- Minimum operating temperature range [°C]: -40
- Maximum operating temperature range [°C]: 125
- Wires/C ables: non insulated Sn plated Cu wire
- Features: High long term stability, very good endurance against thermal shock, tape and reel box/packing available.
Start product inquiry
If you are interested, start your non-committal product inquiry below:
request for sample
Technical contact
Ute Widmaier-Kopp
Manufacturer
TEWA Temperature Sensors
TEWA (a CTS Company) offers a wide range of high quality temperature sensor solutions.
TEWA is a manufacturer that develops and produces high-quality, assembled temperature sensors. The focus is on customer and application-specific temperature sensors, which are characterized by a variable adaptation of all electrical and mechanical parameters and a very good price/performance ratio.
Product portfolio
The portfolio of temperature sensors includes all sensor elements commonly used in the industry, including PTC and NTC thermistors, RTDs and thermocouples. By using special materials for the housing (e.g. stainless steel, steel, copper, etc.) and for cable insulation (e.g. PVC, silicone, FEP, fiberglass, etc.), the temperature range can be from -100°C to +600°C, depending on the sensor variant.
Suitable applications
Industrial electronics
Medical technology
Automotive
Consumer electronics
Certifications and quality management
- ISO 9001
- ATEX
