TT-2 - Serie

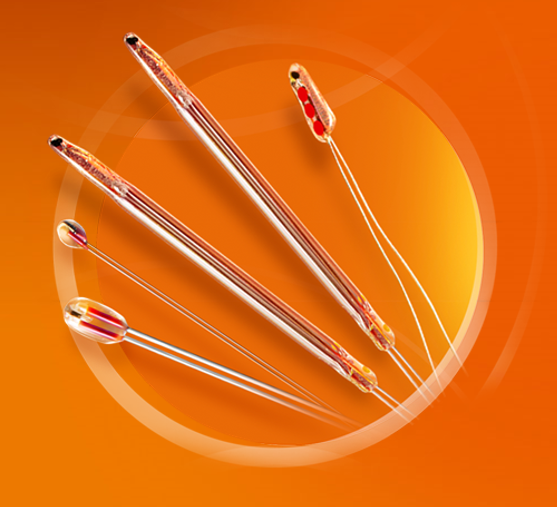

Characteristic: Glass encapsulated NTC "pearl" thermistors with standard electrical characteristics. Custom electrical characteristics also possible. Glass encapsulation for excellent stability and durability.
Specification
- Resistance Value at 25° [KOhm]: 1-1400
- Resistance Tolerance [%]: 1, 2, 3, 5, 10, 20
- B Values (25/85) [K]: 2700-4535 custom
- Minimum operating temperature range [°C]: -50
- Maximum operating temperature range [°C]: 500
- Wires/C ables: bare dumet wire polyimide tubes insulation
- Features: Available in custom probe assemblies, diameter 0.75mm-3.0mm, glass body up to 50mm long. Glass encapsulation for extra moisture protection and interchangeability.
Start product inquiry
If you are interested, start your non-committal product inquiry below:
request for sample
Technical contact
Ute Widmaier-Kopp
Manufacturer
TEWA Temperature Sensors
TEWA (a CTS Company) offers a wide range of high quality temperature sensor solutions.
TEWA is a manufacturer that develops and produces high-quality, assembled temperature sensors. The focus is on customer and application-specific temperature sensors, which are characterized by a variable adaptation of all electrical and mechanical parameters and a very good price/performance ratio.
Product portfolio
The portfolio of temperature sensors includes all sensor elements commonly used in the industry, including PTC and NTC thermistors, RTDs and thermocouples. By using special materials for the housing (e.g. stainless steel, steel, copper, etc.) and for cable insulation (e.g. PVC, silicone, FEP, fiberglass, etc.), the temperature range can be from -100°C to +600°C, depending on the sensor variant.
Suitable applications
Industrial electronics
Medical technology
Automotive
Consumer electronics
Certifications and quality management
- ISO 9001
- ATEX
