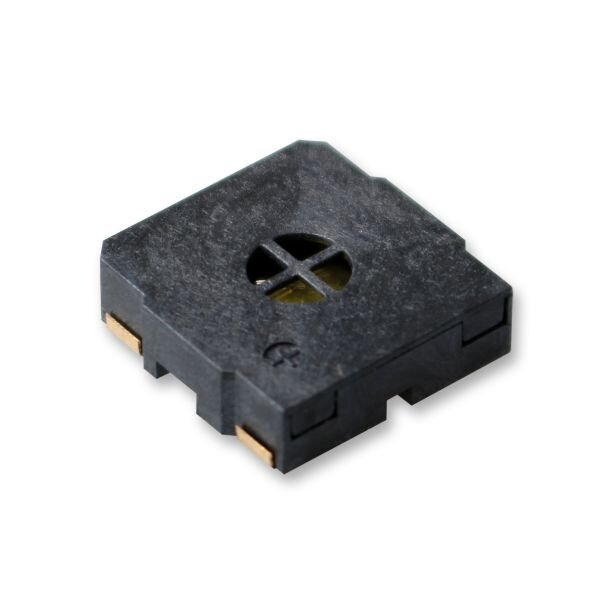

SMD speaker

Overview of the advantages of SMD Loudspeaker:

  • Widest frequency range and best sound, compared with other sound solutions
  • Different impedance values available upon request
  • Different dimensions and frequencies available
  • SMD capable
  • Automotive specification and sound solution available on request

There are 9 of 9 products shown.

SP-1308SD01

  • Length [mm]: 13 mm
  • Width [mm]: 13 mm
  • Height [mm]: 4 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 700 mW
  • SPL [dB]: 88 dB
  • Lowest Resonant Frequency [Hz]: 850 Hz
  • Manufacturer: Qinlon
SP-1308SD01

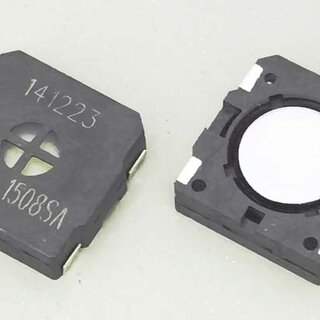

SP-1508SA

  • Length [mm]: 15 mm
  • Width [mm]: 15 mm
  • Height [mm]: 4 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 500 mW
  • SPL [dB]: 87 dB
  • Lowest Resonant Frequency [Hz]: 800 Hz
  • Manufacturer: Qinlon
SP-1508SA

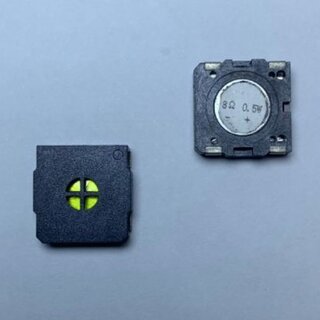

PCXS1515040-R08W0.5-A-SM-187

  • Length [mm]: 15 mm
  • Width [mm]: 15 mm
  • Height [mm]: 4 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 500 mW
  • SPL [dB]: 87 dB
  • Lowest Resonant Frequency [Hz]: 850 Hz
  • Manufacturer: Veco
PCXS1515040-R08W0.5-A-SM-187

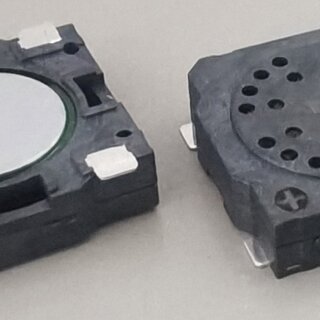

SP-2055SA08

  • Length [mm]: 20 mm
  • Width [mm]: 20 mm
  • Height [mm]: 5.4 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 0.7 mW
  • SPL [dB]: 93 dB
  • Lowest Resonant Frequency [Hz]: 800 Hz
  • Manufacturer: Qinlon
SP-2055SA08

PCXS1313040-R08W0.7-A-SM-266

  • Length [mm]: 13 mm
  • Width [mm]: 13 mm
  • Height [mm]: 4 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 700 mW
  • SPL [dB]: 90 dB
  • Lowest Resonant Frequency [Hz]: 1,000 Hz
  • Manufacturer: Veco
PCXS1313040-R08W0.7-A-SM-266

CSMS15S4.3-4S0.3-P950F

  • Length [mm]: 15 mm
  • Width [mm]: 15 mm
  • Height [mm]: 4.3 mm
  • Impedance [Ω]: 4 Ω
  • Normal Power [mW]: 300 mW
  • SPL [dB]: 89 dB
  • Lowest Resonant Frequency [Hz]: 950 Hz
  • Manufacturer: Chinasound
CSMS15S4.3-4S0.3-P950F

CSMS18S4.8-8S0.3-P580F

  • Length [mm]: 18 mm
  • Width [mm]: 18 mm
  • Height [mm]: 4.8 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 300 mW
  • SPL [dB]: 89 dB
  • Lowest Resonant Frequency [Hz]: 580 Hz
  • Manufacturer: Chinasound
CSMS18S4.8-8S0.3-P580F

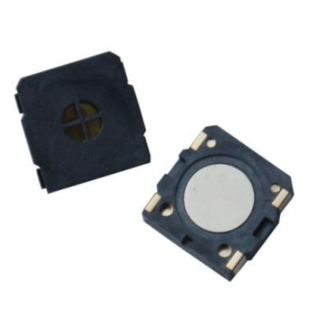

CSMS13S4-8S0.3-P950F

  • Length [mm]: 13 mm
  • Width [mm]: 13 mm
  • Height [mm]: 4 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 300 mW
  • SPL [dB]: 87 dB
  • Lowest Resonant Frequency [Hz]: 950 Hz
  • Manufacturer: Chinasound
CSMS13S4-8S0.3-P950F

CSMS29R8-8S0.6-P700F

  • Height [mm]: 8 mm
  • Diameter [mm]: 28.8 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 600 mW
  • SPL [dB]: 97 dB
  • Lowest Resonant Frequency [Hz]: 700 Hz
  • Manufacturer: Chinasound
CSMS29R8-8S0.6-P700F
Length [mm]

Width [mm]

Height [mm]

Diameter [mm]

Impedance [?]

Normal Power [mW]

SPL [dB]

Lowest Resonant Frequency [Hz]
