Sensors

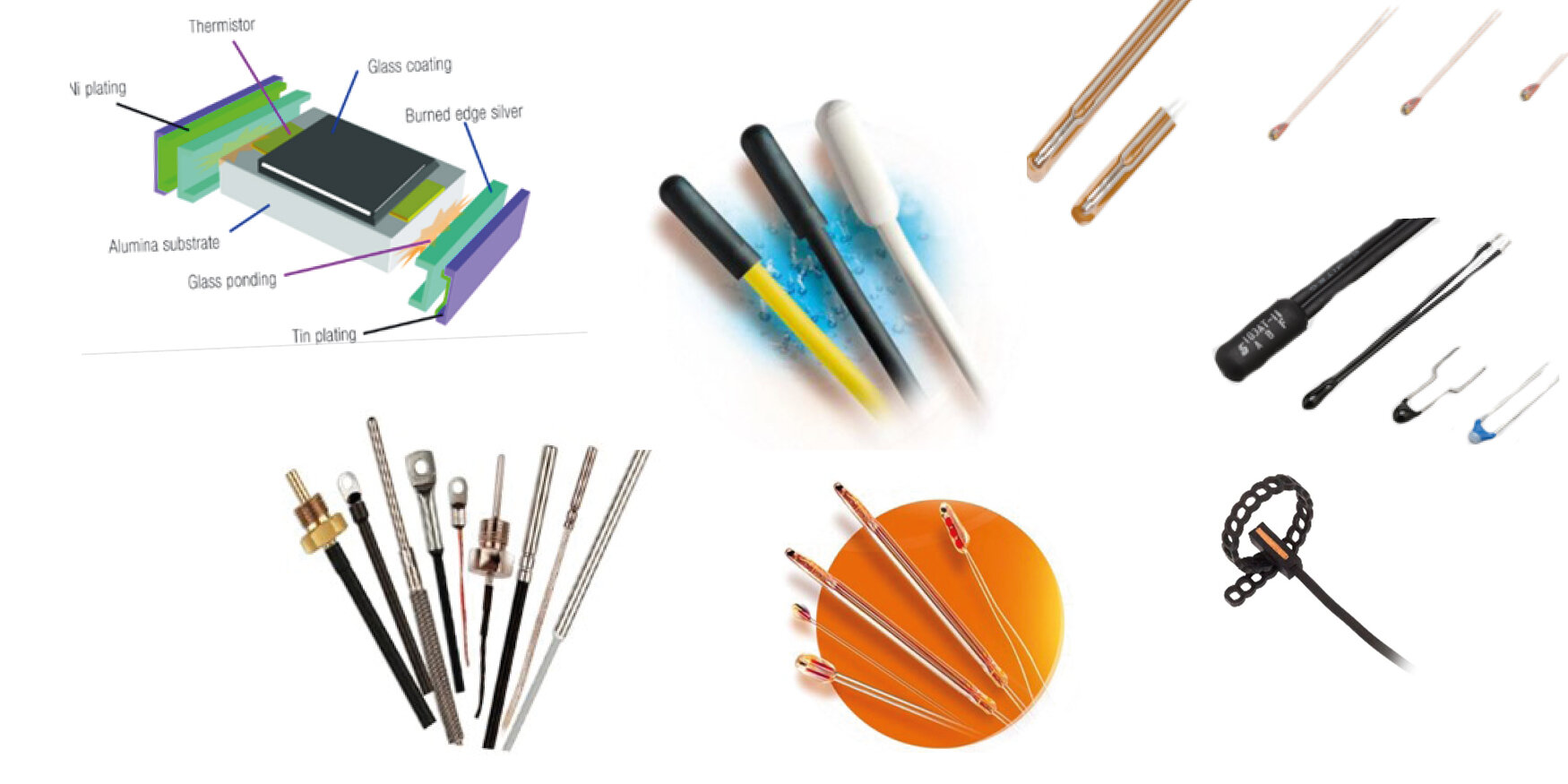

Manufacturer: Semitec, Tateyama, CTS TEWA

Semitec
Semiconductor based ceramic resistors, guaranteed long term stability of minimum 10 years, high precision thermistors featuring extremely small B-value tolerance and resistance

Tateyama
Thick film thermistors based on AI² O³ substrate, patented core material technology, wide variety and customization of R/T curves, guaranteed long-term stability of minimum 10 years

CTS TEWA
Semiconductor based ceramic resistors, wide range of assembled NTC/PTC/PtRTD temperature probes, customized sensors on demand with different cables and connectors

RHT1 Humidity and temperature module
The RHT1 is an accurate and reliable temperature and humidity module. Thanks to its adaptable design, the RHT1 can be tailored to a multitude of applications.

Equipped with a state-of-the-art temperature and relative humidity sensor, the RHT1  excels in accurate dew point detection at any given location.

Ideal for consumer and industrial use, it offers plug -and-play integration for OEM applications. Not only the form factor and connector type, but also cable length and output levels can be adjusted on request.

The RHT1 is the ideal solution for a range of scenarios, including:

  • Regulation of door heating in refrigerators to optimize energy consumption.
  • Fine-tuning humidity levels in air conditioners
    to ensure maximum efficiency and prevent mold formation.
  • Ensuring optimal toner adhesion and preventing
    curling in printers and copiers.



Manufacturer: Magnesensor

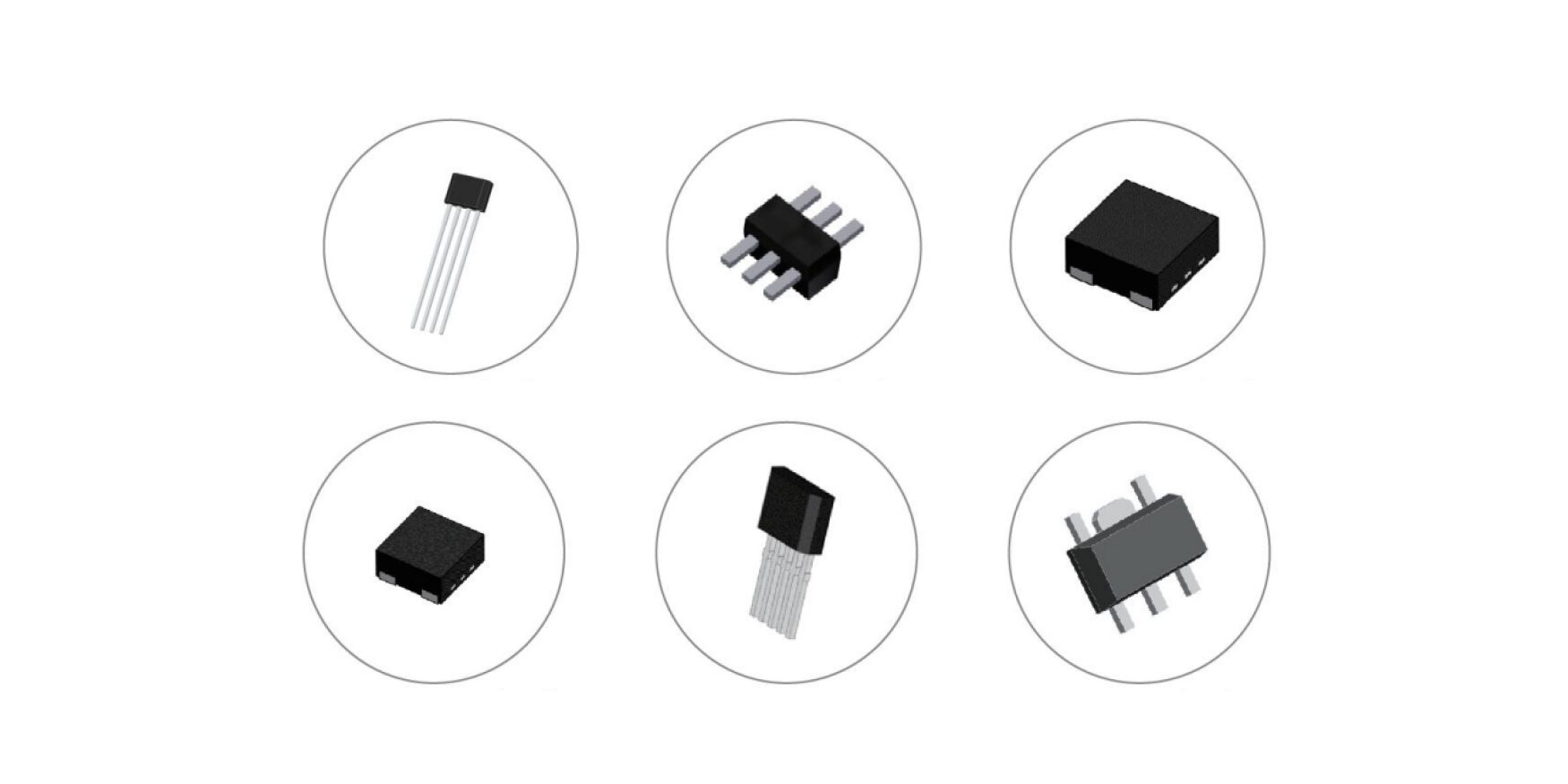

Magnesensor: Large portfolio of magnetic field sensors

• Hall switches
• Analogy Hall Sensors
• Angular Sensors
• Current sensors

Manufacturer: TDK-Micronas
Large portfolio of high-performance hall sensors

• Hall switches
• Linear Hall sensors
• 2d- and 3d-Hall angle sensors, programmable
• Fully automotive certified, partially ASIL-ready, redundant types and types with integrated capacitors
• Current sensors

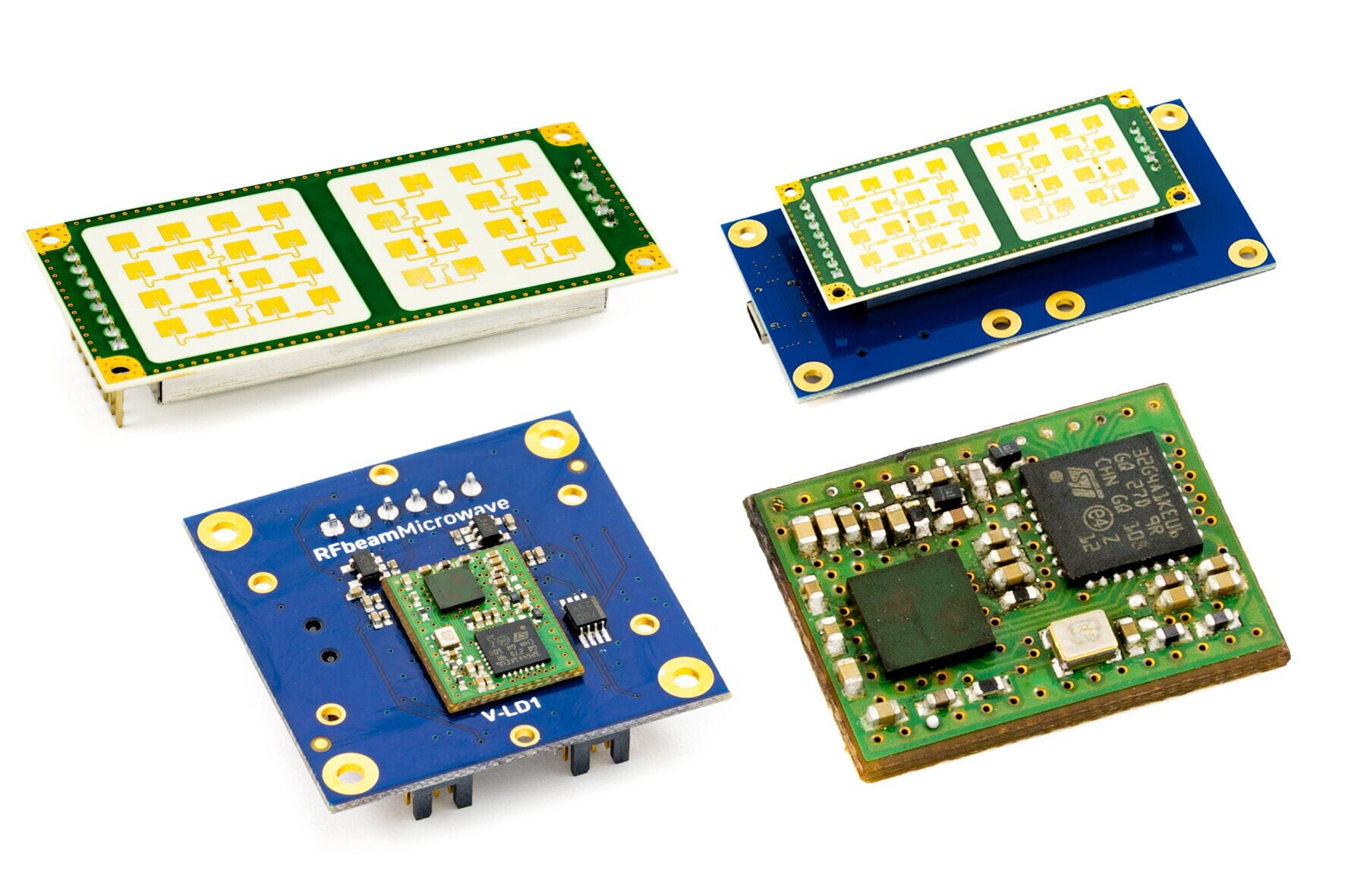

Rader Sensors

Manufacturer: RFbeam, Nisshinbo Micro Devices, OmniPreSense

Frequency range: 24 GHz and 61 GHz Module types:

Analog modules

  • Digital modules with internal signal processing
  • Measurement of speed, distance and angle possible

 Applications

  • Level metering
  • Movement detectors for lighting
  • Home security (burglar alarm)
  • Traffic control
  • Automated guided vehicle system

Thermopile

Manufacturer: NiCeRa: Nippon Ceramic Co., Ltd

Demoboard Thermopile Array:

Thermopile, a thermal infrared sensor that generates a thermoelectromotive force that depends on the incident energy

when it receives infrared radiation emitted from an object and can detect the absolute amount of energy (temperature).

It is suitable to detect absolute temperature value of the object.





Machine Learning
All-in-One Wireless Sensor Module for Your IoT Applications

  • All-in-one multi-sensor wireless solution with ICM-45686-S BalancedGyro™ IMU platform
  • Machine learning enabled – to build, test, and deploy ML models on the IMU
  • Head tracking solution added for TWS (true wireless stereo) and AR/VR/MR glass solutions

SmartBug 2.0 is a smart remote data-collection module for IoT, developed after the success of the original SmartBug. A key attribute of the SmartBug 2.0 is the replacement of the ICM-42688-P IMU with ICM-45686-S, the latest BalancedGyro™ IMU and the world’s lowest power IMU (220 µA @ 50 Hz 6-Axis) from TDK.

BalancedGyro™ technology enables developers to collect high quality IMU data for a longer period of time, due to the 3x battery life. The new IMU also provides premium temperature stability and vibration rejection, making SmartBug 2.0 useful for products such as AR glasses, VR, OIS, drones, MR, TWS, and robotics for prototyping, data collection, and machine learning-based algorithm development.

 Software Features & Benefits

  • Sensor Data: Raw sensor data streaming and logging with configurable FSR and ODR
  • Spatial Audio Head Tracking: Demonstrate TDK’s headtracking solution by output real time position data (roll/pitch/yaw), raw angles and offset data at different power mode and ODR combinations
  • Sensor Fusion: Detects orientation accurately with 6-axis and 9-axis sensor fusion using advanced calibration. Enables logging Quaternion, Yaw, pitch and roll outputs
  • APEX: 6-axis IMU provides Tap, Tilt, Raise to Wake, Pedometer, WOM outputs
  • HVAC filter Monitoring: Two Pressure sensors accurately measure the ΔPressure and show alerts based on ΔP thresholds. Enables logging of differential pressure data
  • Asset Monitoring: 6-axis IMU, pressure, magnetometer, temperature and humidity sensor monitor the condition of an asset with configurable thresholds and provide event outputs such as Freefall, Shock, Magnetic Change etc. Enables logging event history
  • Air Mouse: 6-axis IMU maps the movement of an Air Mouse
  • Smart Door Lock: 6-axis IMU detects if door is in open or close state (< 3-degree accuracy). Enables logging angle output and open/close states
  • Over the Air (OTA) Firmware upgrade: Upgrade the firmware on the SmartBug using the OTA FW upgrade feature available on the SmartBug Application
  • Multiple Options for Data Acquisition: Bluetooth Low Energy (BLE), USB, WiFi, SD Card

Key Hardware Components

  • ICM-45686-S 6-Axis Motion Sensor
  • Barometric Pressure Sensor
  • CH101 Ultrasonic Time-Of-Flight Range Sensor
  • High Precision Tri-axis Magnetic Sensor
  • Digital Humidity and Temperature Sensor
  • Advanced Bluetooth 5 SOC with ARM® Cortex™-M4 CPU
  • 32-bit MCU & 2.4 GHz Wi-Fi

 Applications

  • Hearables: Stick SmartBug to headphones for easy collection of head position tracking data that can be used for Spatial Audio algorithm development. No need to wait for new hardware development.
  • Wearables: Enable easy activity classification by collecting activity data wirelessly and using sensor inference frameworks to build machine learning solution and test these ML model in real use-case.
  • Smart Home: Collect smart sensor data from smart home applications such as smart door lock, smart window lock, or HVAC filter
  • Appliances Stick the SmartBug on home appliances such as robotic vacuum cleaners or smart washing machines and start getting smart appliance data.
