Transient Voltage Suppressor Diodes (TVSD)

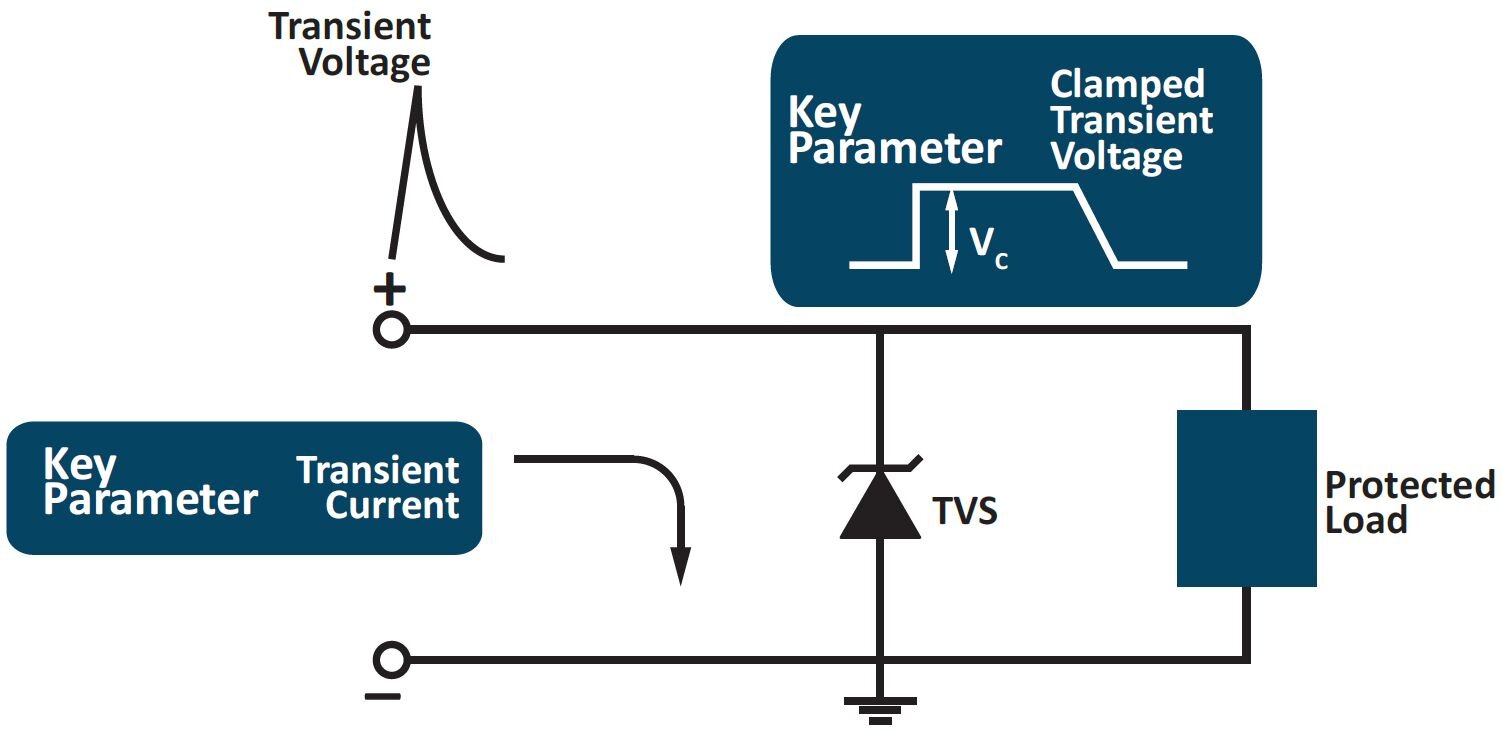

Transient Voltage Suppressor Diodes (TVSD) and steering diodes of the manufacturer ProTek Devices and Eris are silicon based protection devices. Due to their very short response time, pulse resistance and exact limitation of the voltage they are suited to protect semiconductor devices against ESD (electrostatic discharge), EFT/burst (electrical fast transient) and surge events. The low capacitance of these components also permit the protection of high speed data lines. Small packages and arrays save PCB space.

Features

  • size: from 0201
  • SMD and through-hole types available
  • uni- and bipolar devices protect up to 15 lines
  • low leakage current; no gedration over time
  • working voltage: 1VDC- 513VDC
  • peak pulse power up to 100kW
  • ultra low capacitances down to 0.15pF


Benefits

  • customized solutions possible
  • steering diode arrays /TVS combinations available
  • predesinated for handling of multiple overvoltage events
  • used to protect against voltages with a fast rise time
  • REACH & RoHS compliant

There are 10 of 3003 products shown.

EM1631-08DSLP

  • VWM [V]: 5 V
  • VBR [V]: 6 V
  • VC [V]: 0 V
  • C [pF]: 30 µF
  • Lines [No.]: 8
  • Manufacturer: ProTek Devices
EM1631-08DSLP

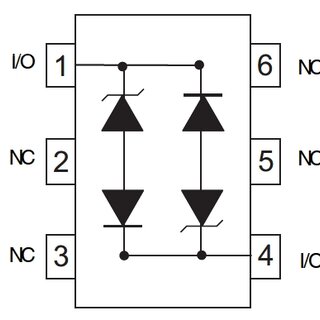

ESOT12LCC-1

  • Package: SOT-23-6
  • VWM [V]: 12 V
  • VBR [V]: 13.3 V
  • VC [V]: 19 V
  • C [pF]: 3 µF
  • PPP [W]: 250 W
  • Lines [No.]: 2
  • Manufacturer: ProTek Devices
ESOT12LCC-1

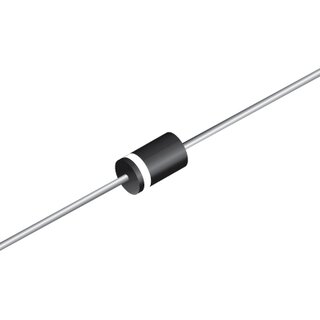

1.5KE100A

  • VWM [V]: 85.5 V
  • VBR [V]: 95 V
  • VC [V]: 137 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE100A

1.5KE100CA

  • VWM [V]: 85.5 V
  • VBR [V]: 95 V
  • VC [V]: 137 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE100CA

1.5KE10A

  • VWM [V]: 8.6 V
  • VBR [V]: 9.5 V
  • VC [V]: 14.5 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE10A

1.5KE10CA

  • VWM [V]: 8.6 V
  • VBR [V]: 9.5 V
  • VC [V]: 14.5 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE10CA

1.5KE110A

  • VWM [V]: 94 V
  • VBR [V]: 104.5 V
  • VC [V]: 152 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE110A

1.5KE110CA

  • VWM [V]: 94 V
  • VBR [V]: 104.5 V
  • VC [V]: 152 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE110CA

1.5KE11A

  • VWM [V]: 9.4 V
  • VBR [V]: 10.45 V
  • VC [V]: 15.6 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE11A

1.5KE11CA

  • VWM [V]: 9.4 V
  • VBR [V]: 10.45 V
  • VC [V]: 15.6 V
  • PPP [W]: 1,500 W
  • Lines [No.]: 1
  • Manufacturer: Eris
1.5KE11CA
Package

Vwm [V]

Vc [V]

Vbr [V]

C [pF]

Ppp [W]

Lines [No.]

Application

Automotive
