Customized Temperature Sensors

Together with our manufacturer TEWA Temperature Sensors (a CTS Company), we develop application-specific temperature sensors for you. This manufacturer is characterised by a very wide product range with an excellent price/performance ratio and outstanding electrical properties. Due to the high degree of flexibility, it is possible to realise customer-specific requirements even for small quantities in corresponding sensors.

By using special materials for the housing (e.g. stainless steel, steel, copper, etc.) and for cable insulation (e.g. PVC, silicone, FEP, fibreglass, etc.), the temperature range can be from -100°C to +600°C, depending on the sensor variant. Sensors with IP68 protection class are also possible

These sensors are used in the fields of industrial electronics, medical technology, automotive, consumer, consumer electronics and many more.

  Resistance values:  NTC, PTC, PtRTD, KTY
  Resistance tolerance:  ±0.25% - 5%
  B values:  2700K – 5100K
  Minimum operating temperature:  -100°C
  Maximum operating temperature:  +600°C
  Wires/Cables:  PVC, Silicone, FEP, Fiberglass, Other
  Certification:  ISO 9001, ISO 14001, UL, ATEX

There are 7 of 7 products shown.

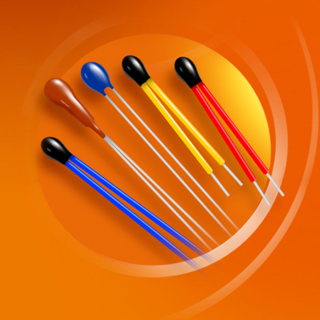

TT-3 - TTS-Serie

  • Resistance Value at 25° [KOhm]: 0.1-1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3190, 3500, 3435, 3690, 3977, 4280, custom
  • Minimum operating temperature range [°C]: -40
  • Maximum operating temperature range [°C]: 150
  • Manufacturer: TEWA Temperature Sensors
TT-3 - TTS-Serie

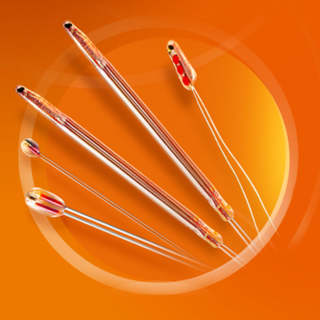

TT-2 - Serie

  • Resistance Value at 25° [KOhm]: 1-1400
  • Resistance Tolerance [%]: 1, 2, 3, 5, 10, 20
  • B Values (25/85) [K]: 2700-4535 custom
  • Minimum operating temperature range [°C]: -50
  • Maximum operating temperature range [°C]: 500
  • Manufacturer: TEWA Temperature Sensors
TT-2 - Serie

TT-4 Serie

  • Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000 5000, 50000, custom Pt100, Pt500, Pt1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 2700-5100 custom
  • Minimum operating temperature range [°C]: -200
  • Maximum operating temperature range [°C]: 600
  • Manufacturer: TEWA Temperature Sensors
TT-4 Serie

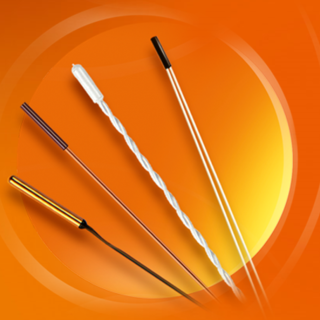

TT-5 Serie

  • Resistance Value at 25° [KOhm]: 0.5-100
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3348-4261 custom
  • Minimum operating temperature range [°C]: -40
  • Maximum operating temperature range [°C]: 125
  • Manufacturer: TEWA Temperature Sensors
TT-5 Serie

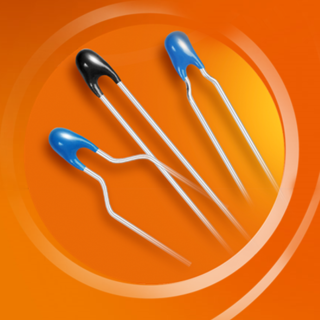

TT-7 Serie

  • Resistance Value at 25° [KOhm]: 1-500
  • Resistance Tolerance [%]: 1, 2, 3, 5
  • B Values (25/85) [K]: 3300K to 4390K, custom
  • Minimum operating temperature range [°C]: -40
  • Maximum operating temperature range [°C]: 125
  • Manufacturer: TEWA Temperature Sensors
TT-7 Serie

TTOP Serie

  • Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000, 5000, 50000, custom Pt100, PT500, Pt1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3325-4750 custom
  • Minimum operating temperature range [°C]: -50
  • Maximum operating temperature range [°C]: 105
  • Manufacturer: TEWA Temperature Sensors
TTOP Serie

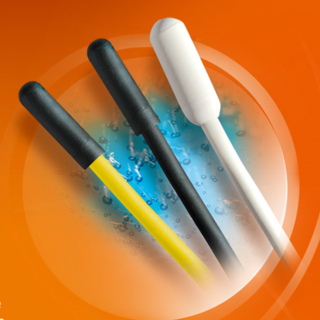

TT-O Serie

  • Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000, 5000, 50000, custom Pt100, PT500, Pt1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3325-4750 custom
  • Minimum operating temperature range [°C]: -50
  • Maximum operating temperature range [°C]: 105
  • Manufacturer: TEWA Temperature Sensors
TT-O Serie
