Cellular

Cellular technologies enable the wireless transmission of voice, data and multimedia content via radio frequencies and a cellular network architecture.

Overview of the technologies:

  • LTE Cat 1to
  • LTE Cat 1
  • LTE Cat 4
  • LTE Cat 6
  • LPWAN
  • 5G Redcap

Applications:

  • Automotive and micromobility
  • Transportation and logistics
  • Agriculture
  • Healthcare
  • smart city
  • Industry

downloads

There are 7 of 7 products shown.

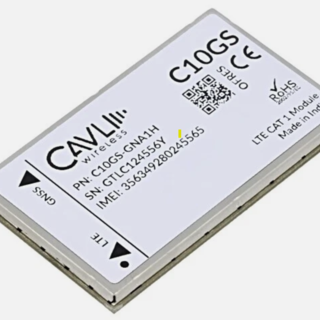

C10GS -LTE Cat 1

  • Cellular Bands: NA : 2/ 4/ 5/ 12/ 13/ 25/ 66 AN : 1/ 3/ 5/ 8/ 18/ 19/ 26/ 28 EU : 1/ 3/ 7/ 8/ 20/ 28 IN : 1/ 3/ 5/ 8/ 40/ 41
  • Download speed [peak value]: 10Mbps
  • Uplink speed [peak value]: 5Mbps
  • Location services: non
  • OS: FreeRTOS
  • Packaging: 17.7 x 15.8 x 2.5 mm, LGA
  • Interfaces: 3xUART, 1xUSB2.0, 1xUSIM, 2xADC**, 1xI2S**, 1xI2C**, 1xSPI**, 3xGPIO**, 1xMain ANT *Optional feature | **Requires SDK
  • Manufacturer: Cavli Wireless
C10GS -LTE Cat 1

C10QM - LTE Cat 1/2G

  • Cellular Bands: EAJ:1/3/5/7/8/18/19/20/26/28/38/40/41 NA : 2/4/5/12/13/17/25/66 EU : 1/3/7/8/20/28 IN : 1/3/5/8/40/41 AN : 1/3/5/8/18/19/26/28
  • Download speed [peak value]: LTE Cat 1 : 10 Mbps 2G : 236.8 Kbps
  • Uplink speed [peak value]: LTE Cat 1 : 5 Mbps 2G : 236.8 Kbps
  • Location services: GPS / GLONASS / BeiDou / Galileo /QZSS Capable
  • OS: Yocto Linux (Kernel 4.14)
  • Packaging: 37 x 21.8 x 2.8 mm, LGA Package
  • Interfaces: 9xGPIO*, 1xUSB HS , 3xUART, 1xSDH , 2xADC**, 1xPCM*, 1xUSIM, 1xI2C*, 1xSPI*, 1xSDC, 1xSGMII, 1xJTAG, 1xLCD**, 1xMAIN_ANT, 1xGNSS_ANT *Optional feature | **Requires SDK
  • Manufacturer: Cavli Wireless
C10QM - LTE Cat 1/2G

CQ16 - LTE Cat 1bis

  • Cellular Bands: NA : 2/ 4/ 5/ 12/ 13/ 25/ 66 AN :1/ 3/ 5/ 8/ 18/ 19/ 26/ 28 EU :1/ 3/ 7/ 8/ 20/ 28 IN :1/ 3/ 5/ 8/ 40/ 41
  • Download speed [peak value]: 10Mbps
  • Uplink speed [peak value]: 5Mbps
  • Location services: Non
  • OS: FreeRTOS
  • Packaging: 17.7 x 15.8 x 2.5 mm, LGA
  • Interfaces: 3xUART, 1xUSB2.0, 1xUSIM, 2xADC**, 1xI2S**, 1xI2C**, 1xSPI**, 3xGPIO**, 1xMain ANT *Optional feature | **Requires SDK
  • Manufacturer: Cavli Wireless
CQ16 - LTE Cat 1bis

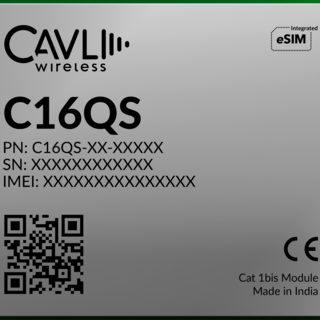

C16QS - LTE Cat 1bis

  • Cellular Bands: EMEA / APAC : B1 / B3 / B5 / B8 / B20 NA : B2 / B4 / B5 / B12 / B13 / B66 LA : B2 / B3 / B4 / B7 / B8/ B28 AN : B1 / B3 / B5 / B8 / B18 / B19 / B26 / B28 WW (Global) : B1/ B2 /B3 /B4 /B5 /B7 /B8 /B12 /B18 /B19 /B20 /B25 /B26 /B28 /B40 /B41 /B66
  • Download speed [peak value]: 10Mbps
  • Uplink speed [peak value]: 5Mbps
  • Location services: GPS / BeiDou
  • OS: FreeRTOS
  • Packaging: 26.5 x 22.5 x 2.3 mm, LGA Package
  • Interfaces: 3xUART, 1xUSB2.0, 1xUSIM, 1xSWD, 2xADC**, 1xI2S**, 1xI2C**, 1xSPI**, 4xGPIO**, 1xMain ANT, 1xGNSS ANT* *Optional feature | **Requires SDK
  • Manufacturer: Cavli Wireless
C16QS - LTE Cat 1bis

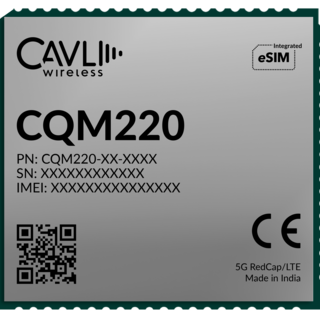

CQM220 -5G redCap

  • Cellular Bands: 5G : n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n19/n20/n25/n26/n28/ n30/n38/n40/n41/n48/n66/n70/n71/n77/n78 4G : B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B18/ B20/ B25/ B26/ B28A/ B28B/ B30/B38/ B40/ B41/ B66/ B70/ B71
  • Download speed [peak value]: 5G RedCap : 226 Mbps 4G : 150 Mbps
  • Uplink speed [peak value]: 5G RedCap : 121 Mbps 4G : 50 Mbps
  • Location services: GPS, GLONASS, NavIC, BEIDOU, Galileo SBAS + QZSS Capable
  • OS: Linux / OpenWrt
  • Packaging: 25.0 x 28.0 x 2.4, LGA FF
  • Interfaces: 1xI2C*, 3xUART, 1x12S, 1xPCM, 1xMAIN_ANT, 1xGNSS_ANT, 1xDIV_ANT, 1xSDC*, 1xSGMII *Optional feature | **Requires SDK
  • Manufacturer: Cavli Wireless
CQM220 -5G redCap

C42GM - Cat M1 & NB-IoT

  • Cellular Bands: B1/ B2/ B3/ B4/ B5/ B6/ B8/ B10/B12/ B13/ B14/ B15/ B16/ B17/ B18/ B19/ B20/ B24/ B25/ B26/ B27/ B28/ B39/ B54/ B65/ B66/ B68/ B71/ B90
  • Download speed [peak value]: Cat M1: 588Kbps Cat NB2: 127Kbps LTE Cat NB1: 20Kbps
  • Uplink speed [peak value]: Cat M1: 1119Kbps Cat NB2: 158.5Kbps LTE Cat NB1: 60Kbps
  • Location services: GPS / BEIDOU
  • OS: Zephyr
  • Packaging: 26.5 x 22.5 x 2.3 mm LGA
  • Manufacturer: Cavli Wireless
C42GM - Cat M1 & NB-IoT

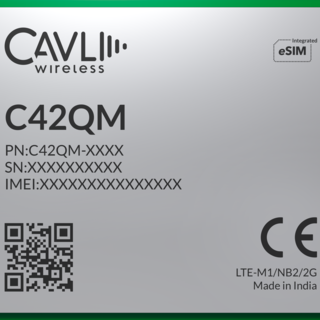

C42QM -Cat M1/ NB2/ EGPRS

  • Cellular Bands: EMEA / APAC : LTE -B1/B3/B5/B8/B20/B40 GSM -900/1800 MHz NA : LTE -B2/B4/B5/B12/B13/B25/B26/B66 GSM - 900 / 1800 MHz
  • Download speed [peak value]: LTE Cat M1: 588 Kbps NB2 : 127Kbps 2G/EGPRS : 236.8Kbps
  • Uplink speed [peak value]: LTE Cat M1: 1199 Kbps NB2: 158.5Kbps 2G/EGPRS : 236.8 Kbps
  • Location services: GPS/GLONASS/BeiDou/Galileo
  • OS: ThreadX OS
  • Packaging: Dimension : 26.5 x 22.5 x TBD mm
  • Interfaces: 1xUSB 2.0 , 3xUART, 2xADC**, 1xUSIM(DSS), 1xI2C*, 1xI2S, 1xSPI*, 1xJTAG, 1xMAIN_ANT, 1xGNSS_ANT *Optional feature | **Requires SDK
  • Manufacturer: Cavli Wireless
C42QM -Cat M1/ NB2/ EGPRS
