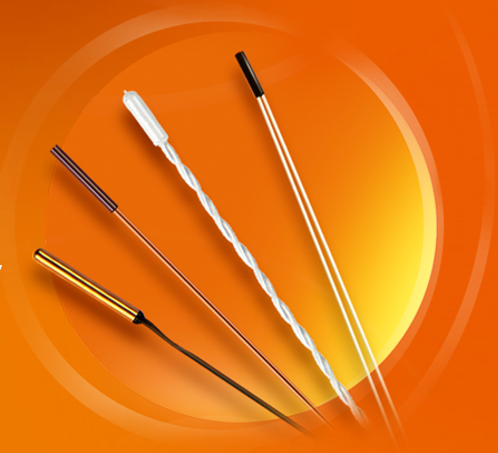

TT-5 Serie
Characteristic: NTC Microchip termistors.
Small size, point or curve matched characteristics.
Wide range of tolerances.
Specification
- Resistance Value at 25° [KOhm]: 0.5-100
- Resistance Tolerance [%]: 1, 2, 5
- Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
- B Values (25/85) [K]: 3348-4261 custom
- Minimum operating temperature range [°C]: -40
- Maximum operating temperature range [°C]: 125
- Wires/C ables: AWG32-AWG40 with or without teflon insulation
- Features: Small size, fast response time, tight resistance and Beta Value tolerance, improved moisture protection, epoxy filled polyimide tubes for moiusture protection.
Start product inquiry
If you are interested, start your non-committal product inquiry below:
request for sample
Technical contact
Ute Widmaier-Kopp
Manufacturer
TEWA Temperature Sensors
TEWA (a CTS Company) offers a wide range of high quality temperature sensor solutions.
TEWA is a manufacturer that develops and produces high-quality, assembled temperature sensors. The focus is on customer and application-specific temperature sensors, which are characterized by a variable adaptation of all electrical and mechanical parameters and a very good price/performance ratio.
Product portfolio
The portfolio of temperature sensors includes all sensor elements commonly used in the industry, including PTC and NTC thermistors, RTDs and thermocouples. By using special materials for the housing (e.g. stainless steel, steel, copper, etc.) and for cable insulation (e.g. PVC, silicone, FEP, fiberglass, etc.), the temperature range can be from -100°C to +600°C, depending on the sensor variant.
Suitable applications
Industrial electronics
Medical technology
Automotive
Consumer electronics
Certifications and quality management
- ISO 9001
- ATEX
