TEWA Temperature Sensors

TEWA (a CTS Company) offers a wide range of high quality temperature sensor solutions.

TEWA is a manufacturer that develops and produces high-quality, assembled temperature sensors. The focus is on customer and application-specific temperature sensors, which are characterized by a variable adaptation of all electrical and mechanical parameters and a very good price/performance ratio.

Product portfolio

The portfolio of temperature sensors includes all sensor elements commonly used in the industry, including PTC and NTC thermistors, RTDs and thermocouples. By using special materials for the housing (e.g. stainless steel, steel, copper, etc.) and for cable insulation (e.g. PVC, silicone, FEP, fiberglass, etc.), the temperature range can be from -100°C to +600°C, depending on the sensor variant.

Suitable applications

Industrial electronics
Medical technology
Automotive
Consumer electronics

Certifications and quality management

  • ISO 9001
  • ATEX

There are 7 of 7 products shown.

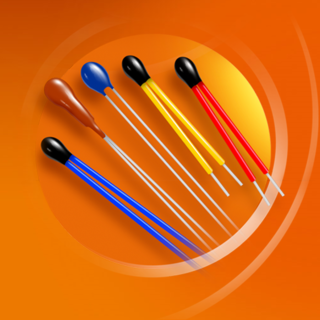

TT-3 - TTS-Serie

  • Resistance Value at 25° [KOhm]: 0.1-1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3190, 3500, 3435, 3690, 3977, 4280, custom
  • Minimum operating temperature range [°C]: -40
  • Maximum operating temperature range [°C]: 150
  • Manufacturer: TEWA Temperature Sensors
TT-3 - TTS-Serie

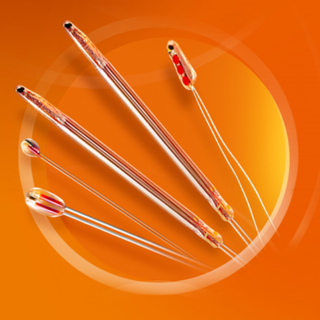

TT-2 - Serie

  • Resistance Value at 25° [KOhm]: 1-1400
  • Resistance Tolerance [%]: 1, 2, 3, 5, 10, 20
  • B Values (25/85) [K]: 2700-4535 custom
  • Minimum operating temperature range [°C]: -50
  • Maximum operating temperature range [°C]: 500
  • Manufacturer: TEWA Temperature Sensors
TT-2 - Serie

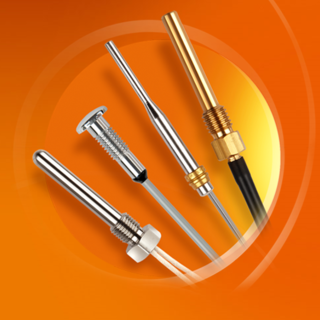

TT-4 Serie

  • Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000 5000, 50000, custom Pt100, Pt500, Pt1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 2700-5100 custom
  • Minimum operating temperature range [°C]: -200
  • Maximum operating temperature range [°C]: 600
  • Manufacturer: TEWA Temperature Sensors
TT-4 Serie

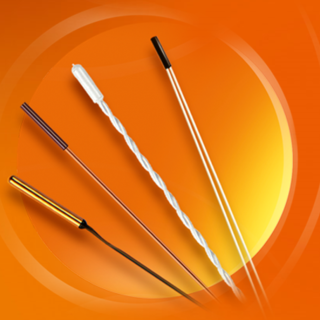

TT-5 Serie

  • Resistance Value at 25° [KOhm]: 0.5-100
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3348-4261 custom
  • Minimum operating temperature range [°C]: -40
  • Maximum operating temperature range [°C]: 125
  • Manufacturer: TEWA Temperature Sensors
TT-5 Serie

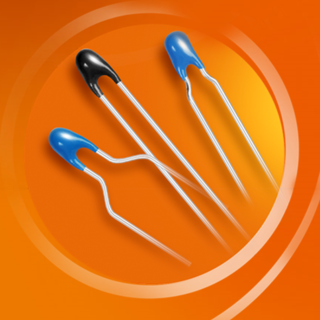

TT-7 Serie

  • Resistance Value at 25° [KOhm]: 1-500
  • Resistance Tolerance [%]: 1, 2, 3, 5
  • B Values (25/85) [K]: 3300K to 4390K, custom
  • Minimum operating temperature range [°C]: -40
  • Maximum operating temperature range [°C]: 125
  • Manufacturer: TEWA Temperature Sensors
TT-7 Serie

TTOP Serie

  • Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000, 5000, 50000, custom Pt100, PT500, Pt1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3325-4750 custom
  • Minimum operating temperature range [°C]: -50
  • Maximum operating temperature range [°C]: 105
  • Manufacturer: TEWA Temperature Sensors
TTOP Serie

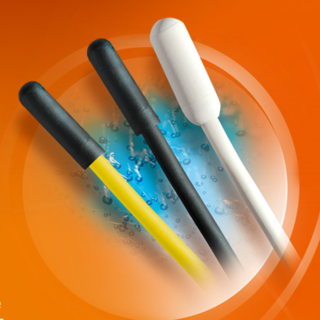

TT-O Serie

  • Resistance Value at 25° [KOhm]: 10000, 100000, 2252, 3000, 30000, 5000, 50000, custom Pt100, PT500, Pt1000
  • Resistance Tolerance [%]: 1, 2, 5
  • Resistance Tolerance [°C]: 0.1 (0C to 70C) 0.2 (0C to 70C)
  • B Values (25/85) [K]: 3325-4750 custom
  • Minimum operating temperature range [°C]: -50
  • Maximum operating temperature range [°C]: 105
  • Manufacturer: TEWA Temperature Sensors
TT-O Serie
