3D camera system

3D camera systems: profile sensors and systems for stereo & multivision. 3D cameras and stereo cameras create spatial images. The data is used to determine position in space, distances, or the size and volume of objects.

Variants: ready to use, custom tailored, or as an electronics kit: always suitable for your project.

Housing: available in practical IP67 housing or as an OEM kit for your own designs.

Software: thanks to FPGA with onboard generation of the point cloud. Processor freely programmable for your application.

There are 10 of 12 products shown.

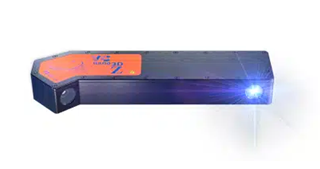

VC nano 3D-Z large 12-xx Laser Profiler

  • Sensor: 1/4" CMOS Sensor, Teledyne e2v Dual-core ARM Cortex-A9 with 2 x 866 MHz and integrated FPGA 4 inputs, 4 outputs Interfaces: 1 Gbit, Encoder, RS232, 2x Beleuchtung, 10 I/Os
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z large 12-xx Laser Profiler

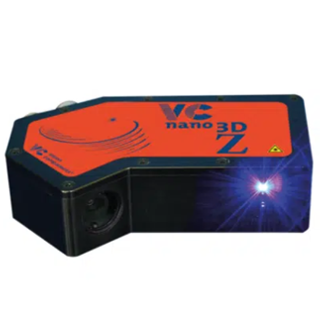

VC nano 3D-Z regular 8-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 10 - 90 µm Resolution Y: 60 - 210 µm Working Distance: 50 - 325 mm Horizontal M. Distance: 70 - 265 mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z regular 8-xx Laser Profiler

VC nano 3D-Z regular 8-xx 3D-Z Laser Profiler 10-40um 50-240mm

  • Sensor: Laser Class 2 Resolution X: 10 - 40 µm Resolution Y: 50 - 120 µm Working Distance: 50 - 240 mm Horizontal M. Distance: 50 - 150 mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z regular 8-xx 3D-Z Laser Profiler 10-40um 50-240mm

VC nano 3D-Z regular 12-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 10 - 20 µm Resolution Y: 40 - 60 µm Working Distance: 80 - 155 mm Horizontal M. Distance: 40 - 65 mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z regular 12-xx Laser Profiler

VC nano 3D-Z large 6-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 20 - 380 µm Resolution Y: 110 - 600 µm Working Distance: 90 - 925 mm Horizontal M. Distance: 130 - 755 mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z large 6-xx Laser Profiler

VC nano 3D-Z large 12-xx Laser 10-70um

  • Sensor: Laser Class 2 Resolution X: 10 - 70 µm Resolution Y: 60 - 170 µm Working Distance: 125 - 525 mm Horizontal M. Distance: 70 - 215 mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z large 12-xx Laser 10-70um

VC nano 3D-Z large 8-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 10 - 190 µm Resolution Y: 80 - 360 µm Working Distance: 50 - 240 mm Horizontal M. Distance: 50 - 150 mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z large 8-xx Laser Profiler

VC nano 3D-Z xlarge 8-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 20 - 300 µm Resolution Y: 180 - 690 µm Working Distance: 245 - 1050 mm Horizontal M. Distance: 225 - 870mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z xlarge 8-xx Laser Profiler

VC nano 3D-Z xlarge 6-xxLaser Profiler

  • Sensor: Laser Class 2 Resolution X: 20 - 300 µm Resolution Y: 180 - 690 µm Working Distance: 245 - 1050 mm Horizontal M. Distance: 225 - 870mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z xlarge 6-xxLaser Profiler

VC nano 3D-Z xlarge 12-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 20 - 110 µm Resolution Y: 100 - 290 µm Working Distance: 200 - 875 mm Horizontal M. Distance: 120 - 365mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z xlarge 12-xx Laser Profiler
