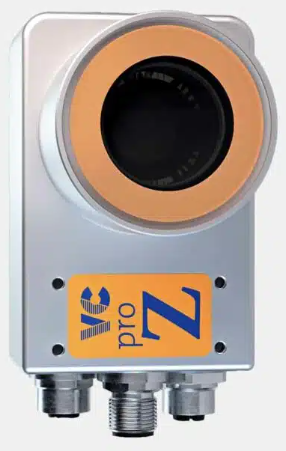

VC pro Z 0011 smart camera 1/1.8"CMOS Sensor

Submit inquiry Data sheet download

Specification

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 5,3 x 5,3
  • Pixel resolution: 1280 x 1024
  • Frames per Second [FPS]: 63 FPS
  • Integration: Global Shutter
  • RAM: 512 MB DDR-SDRAM
  • Digital I/O: yes

Start product inquiry

If you are interested, start your non-committal product inquiry below:

Produktdaten
Company data
Personal data
Address data
Contact data
Legal information

request for sample

If we have aroused your interest, start your non-committal sample inquiry here.
Produktdaten
Company data
Personal data
Address data
Contact data
Legal information

Technical contact

Alain Bruno Kamwa

Manufacturer

NOTAVIS is a member of the Vision Components Group, which includes various partners and distributors. They focus on providing industrial camera solutions and have a strong reputation for their innovative and efficient embedded vision technology.

Vision Components  is an Embedded Vision Pioneer since 1996 and inventor of the first intelligent camera for industrial use. Vision Components develops machine vision technology focusing on embedded solutions. The product line includes MIPI camera modules, programmable multicore ARM/FPGA/Linux board cameras, as well as components for stereo vision and 3D laser camera systems. VC also offers customized OEM solutions and comprehensive software support from free basic drivers to powerful libraries and 3rd party software.
