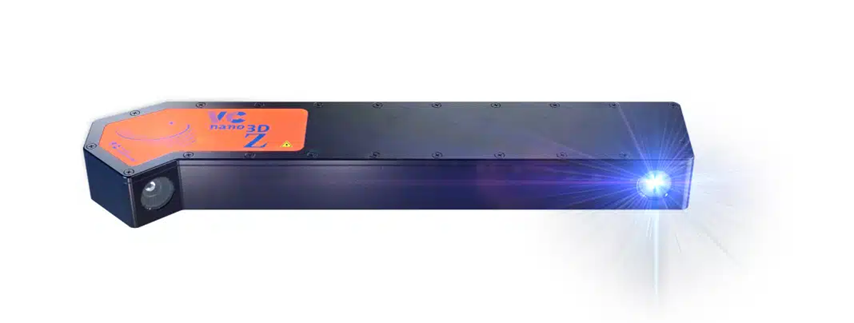

VC nano 3D-Z xlarge 12-xx Laser Profiler

Submit inquiry Data sheet download

Specification

  • Sensor: Laser Class 2 Resolution X: 20 - 110 µm Resolution Y: 100 - 290 µm Working Distance: 200 - 875 mm Horizontal M. Distance: 120 - 365mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • RAM: 512 MB DDR-SDRAM
  • Digital I/O: yes

Start product inquiry

If you are interested, start your non-committal product inquiry below:

Produktdaten
Company data
Personal data
Address data
Contact data
Legal information

request for sample

If we have aroused your interest, start your non-committal sample inquiry here.
Produktdaten
Company data
Personal data
Address data
Contact data
Legal information

Technical contact

Alain Bruno Kamwa

Manufacturer

NOTAVIS is a member of the Vision Components Group, which includes various partners and distributors. They focus on providing industrial camera solutions and have a strong reputation for their innovative and efficient embedded vision technology.

Vision Components  is an Embedded Vision Pioneer since 1996 and inventor of the first intelligent camera for industrial use. Vision Components develops machine vision technology focusing on embedded solutions. The product line includes MIPI camera modules, programmable multicore ARM/FPGA/Linux board cameras, as well as components for stereo vision and 3D laser camera systems. VC also offers customized OEM solutions and comprehensive software support from free basic drivers to powerful libraries and 3rd party software.
