LNA

Nisshinbo Micro Devices offers Low Noise Amplifiers (LNAs) ideal for various communication applications that frequency range from several 10 MHz to 6 GHz. Their LNAs have advantages such as high gain, low noise figure and low distortion. They also provide Front-End Modules (FEMs) that integrate SAW filter and LNA for GNSS applications.

There are 10 of 62 products shown.

SGM13005M2

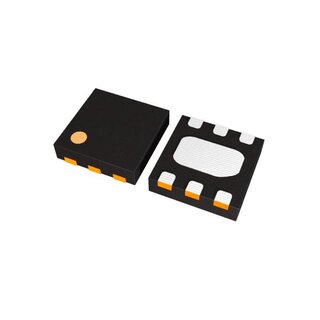

  • Package (LNA): DFN6
  • Operating Voltage [V]: 1.5 V ... 3.6 V
  • Operating Current [mA]: 5.8 mA
  • Gain typ [dB]: 14,1
  • NF typ [dB]: 1
  • P-1dB typ [dBm]: -10,4
  • IIP3 typ [dBm]: 1,3
  • Manufacturer: SG Micro
SGM13005M2

SGM13005M1

  • Package (LNA): DFN6
  • Operating Voltage [V]: 1.5 V ... 3.6 V
  • Operating Current [mA]: 5.8 mA
  • Gain typ [dB]: 14,3
  • NF typ [dB]: 1
  • P-1dB typ [dBm]: -6,2
  • IIP3 typ [dBm]: -1
  • Manufacturer: SG Micro
SGM13005M1

SGM13002A

  • Package (LNA): DFN6
  • Operating Voltage [V]: 1.5 V ... 3.6 V
  • Operating Current [mA]: 5.2 mA
  • Gain typ [dB]: 17,8
  • NF typ [dB]: 0,71
  • P-1dB typ [dBm]: -11,7
  • IIP3 typ [dBm]: -6
  • Manufacturer: SG Micro
SGM13002A

SGM13005M4

  • Package (LNA): DFN6
  • Operating Voltage [V]: 1.5 V ... 3.6 V
  • Operating Current [mA]: 11.8 mA
  • Gain typ [dB]: 19,4
  • NF typ [dB]: 0,9
  • P-1dB typ [dBm]: -10,2
  • IIP3 typ [dBm]: 0,3
  • Manufacturer: SG Micro
SGM13005M4

NT1192FAAE1S

  • Package (LNA): EPFFP6
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3.5 mA
  • Gain typ [dB]: 20/19,5; 20/19,5; 19.5/19
  • NF typ [dB]: 0,7/0,75
  • P-1dB typ [dBm]: -13,5/-17; -13/-17; -13,5/-16
  • IIP3 typ [dBm]: -2/-5,5;-2/-5,5;-2/-5
  • Manufacturer: Nisshinbo
NT1192FAAE1S

NT1191GEAE3S

  • Package (LNA): DFN6
  • Frequency Range [MHz]: 1176
  • Operating Voltage [V]: 1.8 V ... 3.3 V
  • Operating Current [mA]: 3.5 mA
  • Gain typ [dB]: 17,5
  • NF typ [dB]: 0,75
  • P-1dB typ [dBm]: -10
  • Manufacturer: Nisshinbo
NT1191GEAE3S

NJG1155UX2

  • Package (LNA): EPFFP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3.1 mA
  • Gain typ [dB]: 19/18,5
  • NF typ [dB]: 0,75/0,75
  • P-1dB typ [dBm]: -12,5/-16
  • IIP3 typ [dBm]: -1,5/-5
  • Manufacturer: Nisshinbo
NJG1155UX2

NJG1150UA2

  • Package (LNA): EPFFP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 4.2 mA
  • Gain typ [dB]: 16/16
  • NF typ [dB]: 0,6/0,6
  • P-1dB typ [dBm]: -7/-9
  • IIP3 typ [dBm]: 1/-1
  • Manufacturer: Nisshinbo
NJG1150UA2

NJG1144KA1

  • Package (LNA): FLP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.85 V
  • Operating Current [mA]: 1.8 mA
  • Gain typ [dB]: 21/18
  • NF typ [dB]: 0,65/0,85
  • P-1dB typ [dBm]: -16,5/-18,5
  • IIP3 typ [dBm]: -2/-6
  • Manufacturer: Nisshinbo
NJG1144KA1

NJG1143UA2

  • Package (LNA): EPFFP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.85 V
  • Operating Current [mA]: 3 mA
  • Gain typ [dB]: 20/19
  • NF typ [dB]: 0,7/0,75
  • P-1dB typ [dBm]: -16,5/-19,5
  • IIP3 typ [dBm]: -2/-6
  • Manufacturer: Nisshinbo
NJG1143UA2
