Cellular

Cellular technologies enable the wireless transmission of voice, data and multimedia content via radio frequencies and a cellular network architecture.

Overview of the technologies:

  • LTE Cat 1to
  • LTE Cat 1
  • LTE Cat 4
  • LTE Cat 6
  • LPWAN
  • 5G Redcap

Applications:

  • Automotive and micromobility
  • Transportation and logistics
  • Agriculture
  • Healthcare
  • smart city
  • Industry

downloads

There are 4 of 14 products shown.

CQS292 - LTE CAT 4/2G

  • Cellular Bands: WW: 1/2/3/4/5/7/8/12/13/17/18/19/ 20/25/26/28/38/40/41/66/71 EAJ: 1/3/5/7/8/18/19/20/26/28/38/ 40/41 NA: 2/4/5/7/8/12/13/17/25/66/71 AN: 1/3/5/8/18/19/26/28 IN: 1/3/5/8/40/41
  • Download speed [peak value]: LTE Cat 4 : 150Mbps 2G : 236.8Kbps
  • Uplink speed [peak value]: LTE Cat 4 : 50Mbps 2G : 236.8Kbps
  • Location services: In-built Qualcomm Location Suite Gen9VT with support for GPS / BDS / GLONASS / Galileo / NavIC / QZSS / SBAS (L1 + L5)
  • OS: Android 12 + SP till Android 14
  • Packaging: 40,5x40,5xTBD mm, LCC+ LGA packaging
  • Interfaces: 2x MIPI_CSI, 1x MIPI_DSI, 1x USB, 1x USIM, 3x UART, 1x SDC, 1x ADC, 2x I2C, 2x CCI I2C, 1x I3C, 37x GPIO*, 1x SPI, 2x MIC, 2x DMIC, 1x DIV ANT, 1x Main ANT, 1x GNSS ANT, 1x Wi-FI_BLE_FM ANT * Max. Number Possible
  • Manufacturer: Cavli Wireless
CQS292 - LTE CAT 4/2G

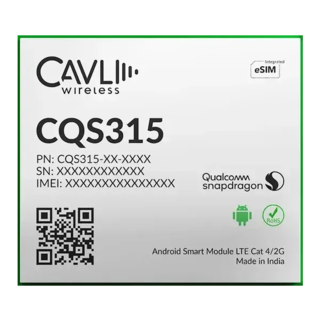

CQS315 - LTE Cat 4/2G

  • Cellular Bands: WW: 1/2/3/5/7/8/12/13/18/19/20/25/ 26/28/40/41/66/71 EAJ: 1/3/5/7/8/18/19/20/26/28/38/ 40/41 AN: 1/3/5/8/18/19/20/26/28/38/40/ 41 IN: 1/3/5/8/40/41 NA: 2/4/5/7/8/12/13/17/25/66/71
  • Download speed [peak value]: LTE Cat 4 : 150Mbps 2G : 236.8Kbps
  • Uplink speed [peak value]: LTE Cat 4 : 50Mbps 2G : 236.8Kbps
  • Location services: In-built Qualcomm Location Suite with support for GPS / BDS / SBAS /GLONASS / Galileo / QZSS
  • OS: Android / Linux
  • Packaging: 40,5x 40,5x TBD mm, LCC+LGA Package
  • Interfaces: 3x MIPI_CSI, 1x MIPI_DSI, 1x USB, 1x USIM, 7x UART, 71x GPIO*, 1x SDC, 1x ADC*, 4x I2C*, 2x I3C*, 5x SPI*, 3x MIC, 2x DMIC,1x DIV ANT, 1x Main ANT, 1x GNSS ANT, 1x WiFI_BLE ANT * Max Number Possible
  • Manufacturer: Cavli Wireless
CQS315 - LTE Cat 4/2G

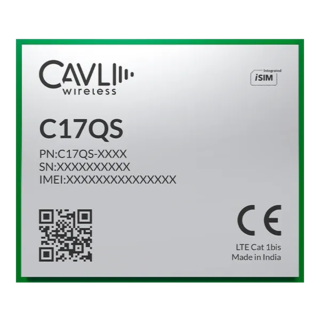

C17QS - LTE Cat1/2G

  • Cellular Bands: EAJ: 1/3/5/7/8/18/19/20/26/28/38/ 40/41 NA:2/4/12/13/14/25/34/66/ B71* AN: 1/3/5/8/18/19/26/28 IN: 1/3/5/8/40/41 EU: 1/3/7/8/20/28 LA: 1/2/3/4/5/7/8 WW: 1/2/3/4/5/7/8/12/13/14/18/ 19/20/25/26/28/34/38/39/40/41/ 66/ B71* * Optional
  • Download speed [peak value]: 10 Mbps
  • Uplink speed [peak value]: 5 Mbps
  • Location services: GPS / GLONASS / Galileo / BDS / NavIC / SBAS / QZSS
  • OS: FreeRTOS
  • Packaging: 26,5x 22,5x 2,3 mm , LGA
  • Interfaces: 3x UART, 1x USB 2.0, 1x SWD, 1x GNSS UART**,2x ADC**, 1x I2S**, 1x I2C**, 4x GPIO**, 1x SPI**, 1x Main ANT, 1x GNSS ANT**, 1x USIM ** Needs SDK
  • Manufacturer: Cavli Wireless
C17QS - LTE Cat1/2G

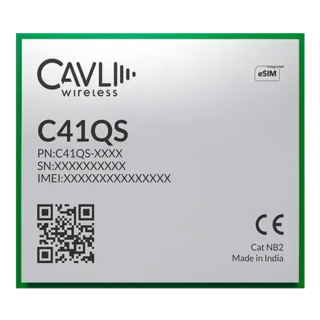

C41QS - Cat NB2

  • Cellular Bands: LTE: 1/2/3/4/5/8/12/13/14/17/18/19/ 20/25/26/28/66/70/85
  • Download speed [peak value]: 127 Kbps
  • Uplink speed [peak value]: 158,5 Kbps
  • Location services: GPS / BeiDou / QZSS
  • OS: Free RTOS
  • Packaging: 15,8x 17,7x 2,0 mm, LGA packaging
  • Interfaces: 3x UART, 1x GNSS UART*, 1x USIM, 1x SWD, 1x SPI**, 1x GPIO**, 1x ADC, 2x Status Indicators, 1x Main ANT, 1x GNSS ANT* * Optional ** Needs SDK not available currently
  • Manufacturer: Cavli Wireless
C41QS - Cat NB2
