3D camera system

3D camera systems: profile sensors and systems for stereo & multivision. 3D cameras and stereo cameras create spatial images. The data is used to determine position in space, distances, or the size and volume of objects.

Variants: ready to use, custom tailored, or as an electronics kit: always suitable for your project.

Housing: available in practical IP67 housing or as an OEM kit for your own designs.

Software: thanks to FPGA with onboard generation of the point cloud. Processor freely programmable for your application.

There are 9 of 29 products shown.

VC nano Z 0015 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 4,5 x 4,5
  • Pixel resolution: 1600x 1200
  • Frames per Second [FPS]: 55 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z 0015 smart camera 1-1.8"CMOS Sensor

VC nano Z 0392 smart camera 1-2.3"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1920x 1200
  • Frames per Second [FPS]: 118 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z 0392 smart camera 1-2.3"CMOS Sensor

VC nano Z 0252 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 2048x 1536
  • Frames per Second [FPS]: 88 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z 0252 smart camera 1-1.8"CMOS Sensor

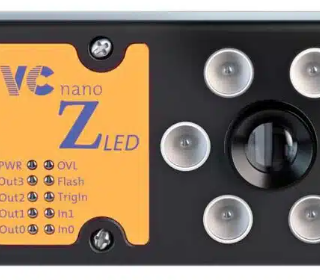

VC nano Z-LED 0011 camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 5,3 x 5,3
  • Pixel resolution: 1280 x 1024
  • Frames per Second [FPS]: 63 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z-LED 0011 camera 1/1.8"CMOS Sensor

VC nano Z-LED 0010 camera 1/4"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z-LED 0010 camera 1/4"CMOS Sensor

VC nano Z-LED 0015 camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 4,5 x 4,5
  • Pixel resolution: 1600 x 1200
  • Frames per Second [FPS]: 55 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z-LED 0015 camera 1/1.8"CMOS Sensor

VC nano Z-LED 0273 camera 1/2.9"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 3,45 x 3,55
  • Pixel resolution: 1440 x 1080
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z-LED 0273 camera 1/2.9"CMOS Sensor

VC nano Z-LED 0252 camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 3,45 x 3,55
  • Pixel resolution: 2048 x 1536
  • Frames per Second [FPS]: 88 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z-LED 0252 camera 1/1.8"CMOS Sensor

VC nano Z-LED 0392 camera 1/2.3"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1920 x 1200
  • Frames per Second [FPS]: 118 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z-LED 0392 camera 1/2.3"CMOS Sensor
