3D camera system

3D camera systems: profile sensors and systems for stereo & multivision. 3D cameras and stereo cameras create spatial images. The data is used to determine position in space, distances, or the size and volume of objects.

Variants: ready to use, custom tailored, or as an electronics kit: always suitable for your project.

Housing: available in practical IP67 housing or as an OEM kit for your own designs.

Software: thanks to FPGA with onboard generation of the point cloud. Processor freely programmable for your application.

There are 10 of 29 products shown.

VC nano 3D-Z xxlarge 12-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 30 - 180 µm Resolution Y: 170 - 470 µm Working Distance: 410 - 1435 mm Horizontal M. Distance: 215 - 600mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z xxlarge 12-xx Laser Profiler

VC nano 3D-Z xxlarge 8-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 30 - 220 µm Resolution Y: 220 - 640 µm Working Distance: 465 - 1285 mm Horizontal M. Distance: 345 - 810mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano 3D-Z xxlarge 8-xx Laser Profiler

VC pro Z 0015 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 4,5 x 4,5
  • Pixel resolution: 1280 x 1200
  • Frames per Second [FPS]: 55 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC pro Z 0015 smart camera 1-1.8"CMOS Sensor

VC pro Z 0010 smart camera 1/4"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC pro Z 0010 smart camera 1/4"CMOS Sensor

VC pro Z 0392 smart camera 1-2.3"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1920 x 1200
  • Frames per Second [FPS]: 118 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC pro Z 0392 smart camera 1-2.3"CMOS Sensor

VC pro Z 0252 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 2048 x 1536
  • Frames per Second [FPS]: 88 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC pro Z 0252 smart camera 1-1.8"CMOS Sensor

VC pro Z 0273 smart camera 1-2.9"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1440 x 1080
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC pro Z 0273 smart camera 1-2.9"CMOS Sensor

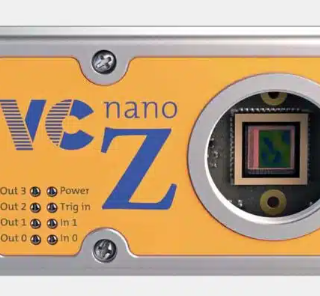

VC nano Z 0011 smart camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 5,3 x 5,3
  • Pixel resolution: 1280x 1024
  • Frames per Second [FPS]: 63 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z 0011 smart camera 1/1.8"CMOS Sensor

VC nano Z 0010 smart camera 1/4"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z 0010 smart camera 1/4"CMOS Sensor

VC nano Z 0273 smart camera 1-2.9"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1440x 1080
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: yes
  • RAM: 512 MB DDR-SDRAM
  • Manufacturer: Notavis
VC nano Z 0273 smart camera 1-2.9"CMOS Sensor
