Baolong

Baolong develops compact, innovative and reliable vibration motors.

Zhejiang Baolong M&E Co, Ltd is a leading manufacturer of vibration motors in Wenzhou, Zhejiang, China. The company was founded in 1986. Strong research and development capabilities and excellent production technology have created the high-quality brand. The workforce consists of 822 employees. The production capacity is over 20 million units per month with a production area of 12,000m².

Product portfolio

Baolong's product portfolio includes mini vibration motors and micro DC motors. These are divided into coin types, cylinder types, SMD motors and linear vibration motors.

Applications

  • Haptic feedback

There are 10 of 32 products shown.

BL4I2J6-PF7

  • Length [mm]: 11.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,500 rpm
  • Max. Rated Current [mA]: 80 mA
  • Manufacturer: Baolong
BL4I2J6-PF7

BL4I2T-JC25T

  • Length [mm]: 13.2 mm
  • Width [mm]: 5 mm
  • Height [mm]: 5 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,000 rpm
  • Max. Rated Current [mA]: 95 mA
  • Manufacturer: Baolong
BL4I2T-JC25T

BL4I2V3-X9N

  • Length [mm]: 13.2 mm
  • Width [mm]: 4 mm
  • Height [mm]: 4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Manufacturer: Baolong
BL4I2V3-X9N

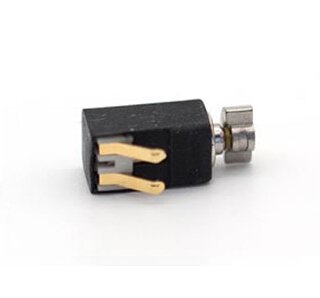

BL4I2G6-PF6

  • Length [mm]: 11.9 mm
  • Width [mm]: 6.5 mm
  • Height [mm]: 4.9 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Manufacturer: Baolong
BL4I2G6-PF6

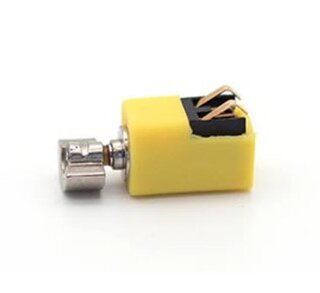

BL4I2S-GF

  • Length [mm]: 13.2 mm
  • Width [mm]: 6.5 mm
  • Height [mm]: 5.8 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Manufacturer: Baolong
BL4I2S-GF

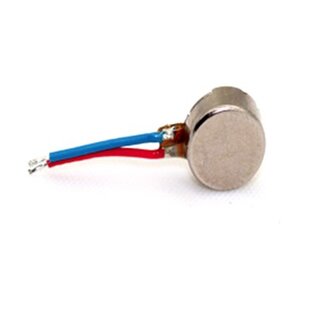

BVM0625H-X10-U

  • Diameter [mm]: 6 mm
  • Height [mm]: 2.5 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0625H-X10-U

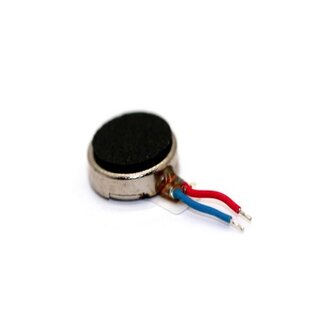

BVM0827-X10-1T03U

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.7 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0827-X10-1T03U

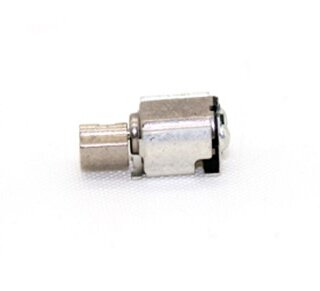

BLT-5412

  • Length [mm]: 12 mm
  • Width [mm]: 4 mm
  • Height [mm]: 3.8 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Manufacturer: Baolong
BLT-5412

BLP-3211-H

  • Length [mm]: 11 mm
  • Width [mm]: 3.8 mm
  • Height [mm]: 2.9 mm
  • Rated Voltage [V]: 2.7 V
  • Max. Rated Speed [rpm]: 13,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Manufacturer: Baolong
BLP-3211-H

BLP-4311A

  • Length [mm]: 10.8 mm
  • Width [mm]: 4.96 mm
  • Height [mm]: 3.6 mm
  • Rated Voltage [V]: 2.7 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 80 mA
  • Manufacturer: Baolong
BLP-4311A
