Baolong

Baolong develops compact, innovative and reliable vibration motors.

Zhejiang Baolong M&E Co, Ltd is a leading manufacturer of vibration motors in Wenzhou, Zhejiang, China. The company was founded in 1986. Strong research and development capabilities and excellent production technology have created the high-quality brand. The workforce consists of 822 employees. The production capacity is over 20 million units per month with a production area of 12,000m².

Product portfolio

Baolong's product portfolio includes mini vibration motors and micro DC motors. These are divided into coin types, cylinder types, SMD motors and linear vibration motors.

Applications

  • Haptic feedback

There are 10 of 32 products shown.

BLM0412G-FP192-U

  • Length [mm]: 12 mm
  • Width [mm]: 4 mm
  • Height [mm]: 3.5 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 240 Hz
  • Max. Rated Current [mA]: 60 mA
  • Manufacturer: Baolong
BLM0412G-FP192-U

BLM0512GA-FP181-0SU

  • Length [mm]: 12 mm
  • Width [mm]: 4 mm
  • Height [mm]: 4.5 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 235 Hz
  • Max. Rated Current [mA]: 60 mA
  • Manufacturer: Baolong
BLM0512GA-FP181-0SU

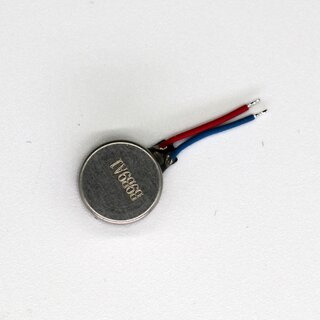

BLM0832-X10-U

  • Height [mm]: 3.2 mm
  • Diameter [mm]: 8 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 235 Hz
  • Max. Rated Current [mA]: 90 mA
  • Manufacturer: Baolong
BLM0832-X10-U

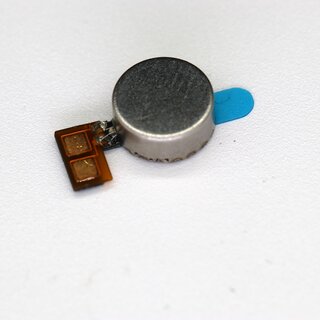

BLM0832D-FP81-1SPU

  • Height [mm]: 3.2 mm
  • Diameter [mm]: 8 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 205 Hz
  • Max. Rated Current [mA]: 90 mA
  • Manufacturer: Baolong
BLM0832D-FP81-1SPU

BLT-3211H

  • Length [mm]: 9.5 mm
  • Width [mm]: 3.4 mm
  • Height [mm]: 2.7 mm
  • Diameter [mm]: 2.5 mm
  • Rated Voltage [V]: 1.6 V
  • Max. Rated Speed [rpm]: 16,000 rpm
  • Max. Rated Current [mA]: 80 mA
  • Manufacturer: Baolong
BLT-3211H

BLT-4311

  • Length [mm]: 10.5 mm
  • Width [mm]: 4.4 mm
  • Height [mm]: 3.4 mm
  • Diameter [mm]: 3.1 mm
  • Rated Voltage [V]: 2.7 V
  • Max. Rated Speed [rpm]: 14,000 rpm
  • Max. Rated Current [mA]: 75 mA
  • Manufacturer: Baolong
BLT-4311

BLT-4315B

  • Length [mm]: 12.7 mm
  • Width [mm]: 4.5 mm
  • Height [mm]: 3.5 mm
  • Diameter [mm]: 4.1 mm
  • Rated Voltage [V]: 2.3 V
  • Max. Rated Speed [rpm]: 8,500 rpm
  • Max. Rated Current [mA]: 130 mA
  • Manufacturer: Baolong
BLT-4315B

BLT-5513

  • Length [mm]: 12 mm
  • Width [mm]: 4 mm
  • Height [mm]: 2.7 mm
  • Diameter [mm]: 4.2 mm
  • Rated Voltage [V]: 1.3 V
  • Max. Rated Speed [rpm]: 9,000 rpm
  • Max. Rated Current [mA]: 110 mA
  • Manufacturer: Baolong
BLT-5513

BLT-5513CD6

  • Length [mm]: 12 mm
  • Width [mm]: 4.1 mm
  • Height [mm]: 4.3 mm
  • Diameter [mm]: 4.2 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Manufacturer: Baolong
BLT-5513CD6

BL4I2J4-C100N

  • Length [mm]: 12.2 mm
  • Width [mm]: 4 mm
  • Height [mm]: 6 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Manufacturer: Baolong
BL4I2J4-C100N
