Gas & Particle Sensors

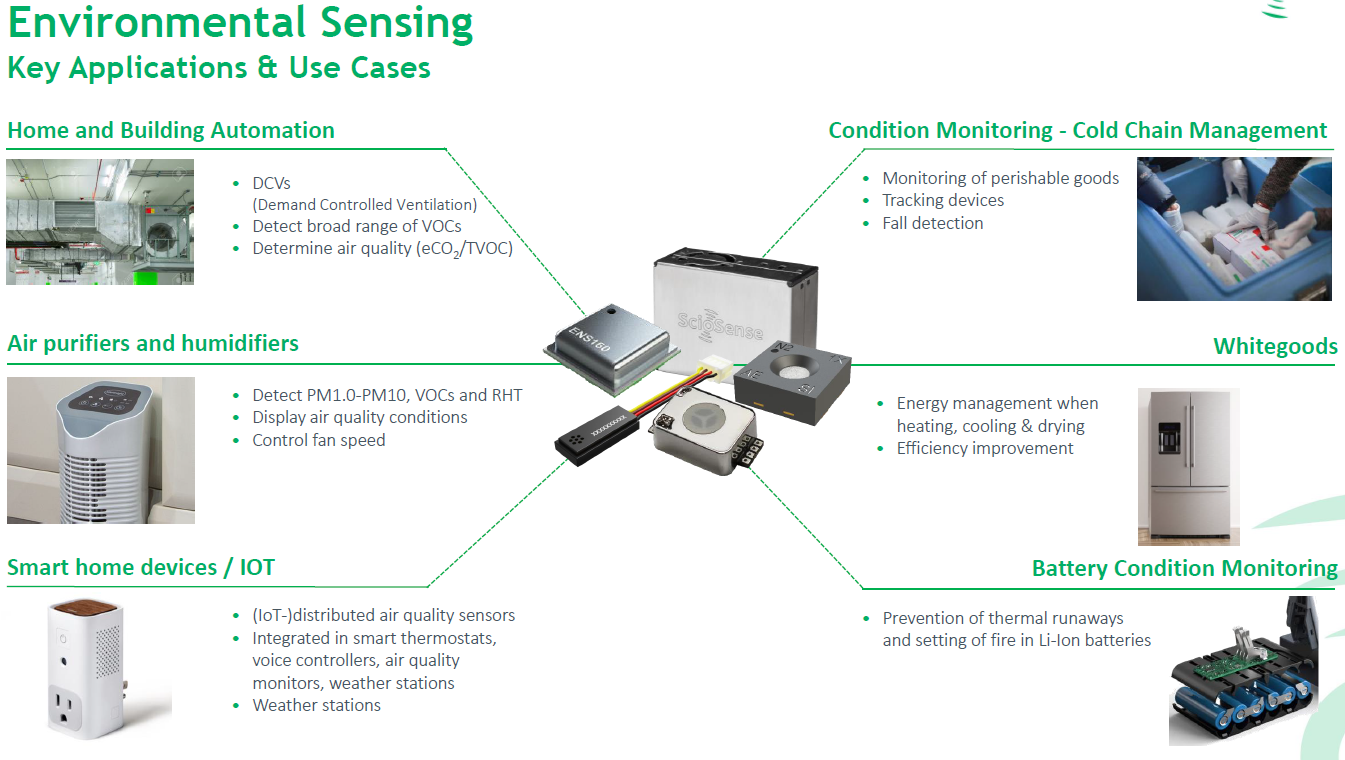

There are more than 900 types of pollutants, mainly gas pollutants, such as volatile organic compounds (VOCs), CO, CO2, NOx, etc., microbial pollutants and inhalable particulate matter (PM1,PM2.5,PM10 and PM10). Meanwhile, technology innovation has constantly enhanced the development of environmental monitoring devices, such as intelligent fresh air systems, air purifier, sweeping machine/vacuum cleaner/ floor scrubber, range hoods, wall-hung boilers, air conditioners, etc. Environment monitoring sensor can accurately help to detect and receive early warning of environmental quality change, making the respiration more comfortable, healthy and safe.

There are 10 of 17 products shown.

ACM HVAC Air Intake automotive

  • accuracy: PM1.0+PM2.5+PM10
  • communication: LIN PWM
  • Working principe: metal oxide (MOX)
  • recommendations: VOCs, CO, NH3, H2S, SO2, NO2, O3
  • Manufacturer: Sciosense
ACM HVAC Air Intake automotive

ACM4 Multi-Gas Sensor Array Module Automotive

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • accuracy: PM1.0+PM2.5+PM10
  • communication: I2C,SPI, LIN PWM
  • Working principe: metal oxide (MOX)
  • recommendations: VOCs, CO, NH3, H2S, SO2, NO2, O3
  • Manufacturer: Sciosense
ACM4 Multi-Gas Sensor Array Module Automotive

ENS160 EVK Evaluation Kit Versatile digital air quality sensor

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • communication: I2C,SPI
  • Working principe: metal oxide (MOX)
  • recommendations: eCO2 TVOC T and RH
  • Manufacturer: Sciosense
ENS160 EVK Evaluation Kit Versatile digital air quality sensor

APC1 EVK Evaluation Kit Air quality sensor

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • accuracy: PM1.0+PM2.5+PM10
  • communication: UART I2C
  • Working principe: Laser Particle Sensor
  • recommendations: PM1.0, PM2.5, PM10, eCO2 TVOC T and RH
  • Manufacturer: Sciosense
APC1 EVK Evaluation Kit Air quality sensor

APC1 Air quality combo sensor

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • accuracy: PM1.0+PM2.5+PM10
  • communication: UART I2C
  • Working principe: Laser Particle Sensor
  • recommendations: PM1.0, PM2.5, PM10, eCO2, TVOC, AQI, T and RH
  • Manufacturer: Sciosense
APC1 Air quality combo sensor

ENS170A Automotive-Grade Air Quality / Multi-Gas Sensor Array

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • communication: I2C,SPI, LIN PWM
  • Working principe: metal oxide (MOX)
  • recommendations: eCO2 TVOC T and RH
  • Manufacturer: Sciosense
ENS170A Automotive-Grade Air Quality / Multi-Gas Sensor Array

ENS161 EVK Evaluation Kit Low power digital air quality sensor

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • communication: I2C,SPI
  • Working principe: metal oxide (MOX)
  • recommendations: eCO2 TVOC T and RH
  • Manufacturer: Sciosense
ENS161 EVK Evaluation Kit Low power digital air quality sensor

BMC1 Battery Condition Monitor

  • accuracy: PM1.0+PM2.5+PM10
  • communication: LIN PWM
  • Working principe: metal oxide (MOX)
  • recommendations: V
  • Manufacturer: Sciosense
BMC1 Battery Condition Monitor

ENS190 NDIR CO2 Sensor

  • Measurement range: CO2 0-50000ppm
  • output range [ppm]: 50000
  • accuracy: ± 50 ppm
  • communication: UART
  • Working principe: NDIR
  • Manufacturer: Sciosense
ENS190 NDIR CO2 Sensor

ENS161 Digital Metal-Oxide Multi-Gas Sensor low power

  • Measurement range: TVOC 0-65000ppb eCO2 400-65000ppm
  • output range [ppm]: 65000
  • communication: I2C,SPI
  • Working principe: metal oxide (MOX)
  • recommendations: eCO2 TVOC T and RH
  • Manufacturer: Sciosense
ENS161 Digital Metal-Oxide Multi-Gas Sensor low power
Measurement range

Output range [ppm]

Accuracy

Communication

Working principe

Recommendations
