Alphanumeric displays

The alphanumeric Displays of Raystar are available with 8 × 2 and up to 40 × 4 characters. For every size of display there is a number of different character sets, LC technologies and back-light colours.
Should a particular required display not be part of our standard program we can develop this according to a customer's requirements.

There are 10 of 35 products shown.

RC1602B1

  • Length [mm]: 80 mm
  • Height [mm]: 9.7 mm
  • Width [mm]: 36 mm
  • Resolution: 16 × 2
  • Active Area [mm]: 56,2 x 11,5
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC1602B1

RC1602B4

  • Length [mm]: 80 mm
  • Height [mm]: 13.2 mm
  • Width [mm]: 36 mm
  • Resolution: 16 x 2
  • Active Area [mm]: 56.2 x 11.5
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: SPI
  • Manufacturer: Raystar
RC1602B4

RC1601A

  • Length [mm]: 80 mm
  • Height [mm]: 13.5 mm
  • Width [mm]: 36 mm
  • Resolution: 16 × 1
  • Active Area [mm]: 59,62 x 6,56
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC1601A

RC4004A

  • Length [mm]: 190 mm
  • Height [mm]: 13.6 mm
  • Width [mm]: 54 mm
  • Resolution: 40 × 4
  • Active Area [mm]: 140,45 x 23,16
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC4004A

RC2004B

  • Length [mm]: 77 mm
  • Height [mm]: 12.4 mm
  • Width [mm]: 47 mm
  • Resolution: 20 × 4
  • Active Area [mm]: 55,1 x 17,56
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC2004B

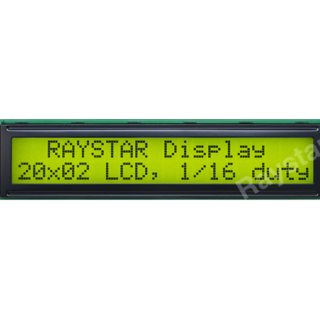

RC2002C

  • Length [mm]: 89 mm
  • Height [mm]: 13.9 mm
  • Width [mm]: 21.5 mm
  • Resolution: 20 × 2
  • Active Area [mm]: 142,8 x 20,64
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC2002C

RC2002B

  • Length [mm]: 89 mm
  • Height [mm]: 8.9 mm
  • Width [mm]: 21.5 mm
  • Resolution: 20 × 2
  • Active Area [mm]: 68,5 x 10,7
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC2002B

RC1602M2

  • Length [mm]: 66.7 mm
  • Height [mm]: 6.5 mm
  • Width [mm]: 23.3 mm
  • Resolution: 16 × 2
  • Active Area [mm]: 56,2 x 11,85
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC1602M2

RC1602O

  • Length [mm]: 88 mm
  • Height [mm]: 13.2 mm
  • Width [mm]: 36 mm
  • Resolution: 16 × 2
  • Active Area [mm]: 56,2 x 11,5
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC1602O

RC1602E

  • Length [mm]: 122 mm
  • Height [mm]: 13.6 mm
  • Width [mm]: 99 mm
  • Resolution: 16 × 2
  • Active Area [mm]: 94,2 x 20,0
  • Glass and Color: STN Grey, STN Y-G, STN Blue, FSTN B, W
  • Interface: 6800
  • Manufacturer: Raystar
RC1602E
