Standart E-Paper Displays (Full Color)
​
Standart E-Paper Displays (14 grey scale)

Standart E-Paper Displays (Black & White)

​

• Type: AI Accelerator​

• Form Factor: M.2 M Key (22 x 80 mm)​

• Interface: PCle Gen.3 x4​

• Memory: 4GB LPDDR5, QSPI 1Gbit NAND Flash​

• Host HW: x86, ARM Based Architecture

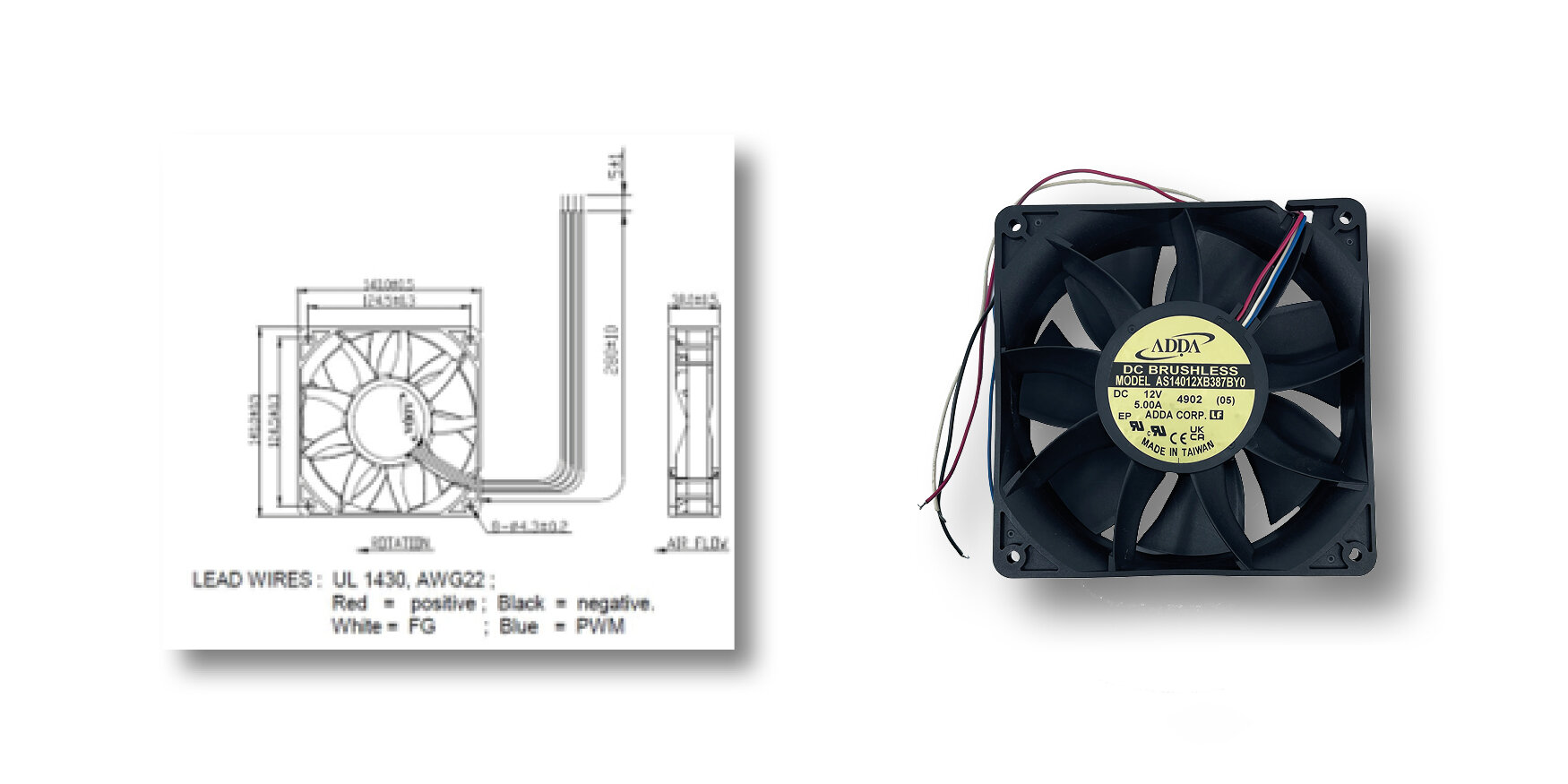

Manufacturer: ADDA
Part number: AS14012XB387BY0
Dimensions: 140 x 140 x 38 mm
Maximum air volume: 324,313 CFM
Rated voltage: 12 V DC

Polarity protection, blockage protection
Speed control: PWM

Output signal: revolution indication

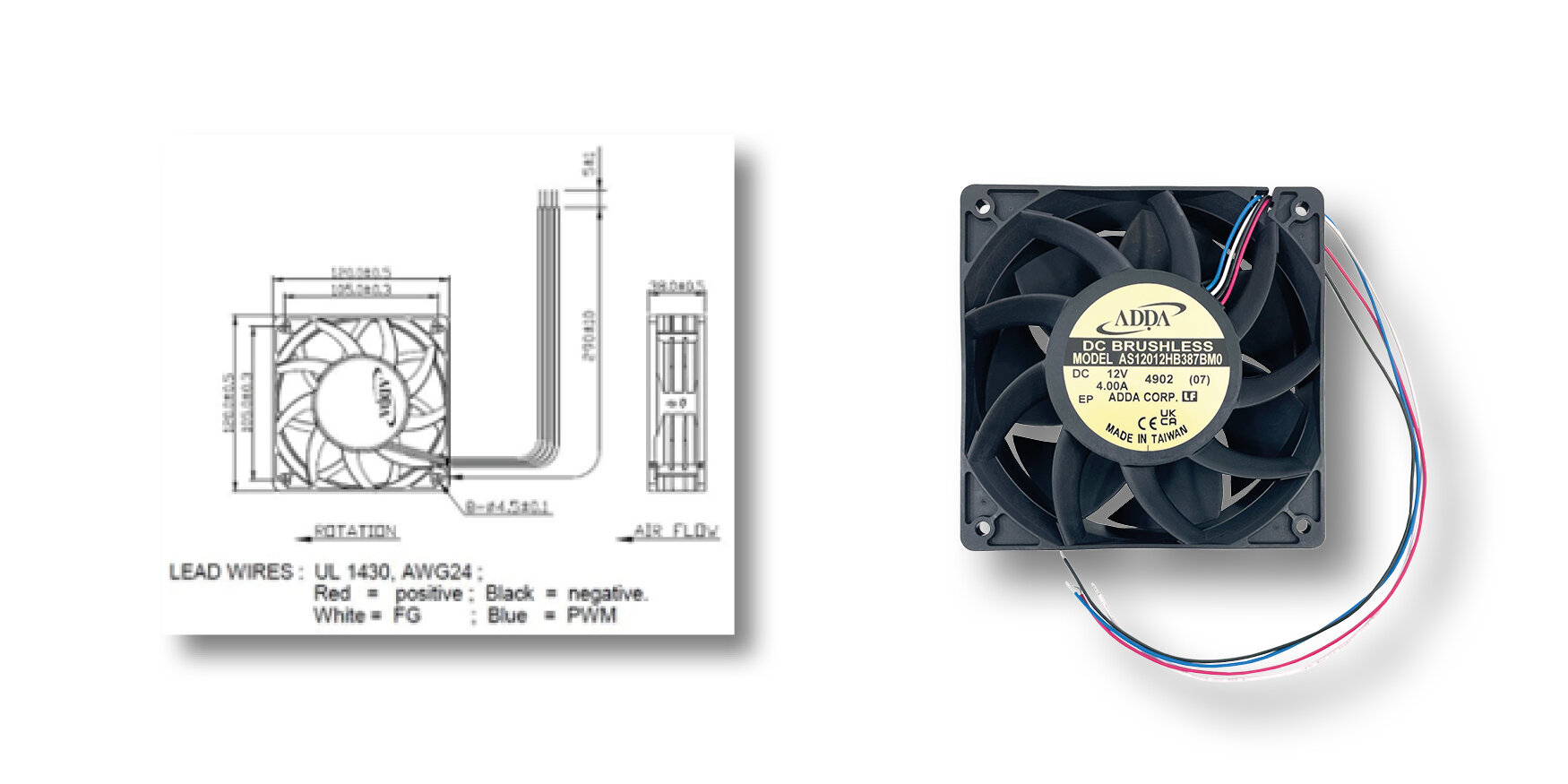

Manufacturer: ADDA
Part number: AS12012HB387BM0
Dimensions: 120 x 120 x 38 mm
Maximum air volume: 210,29 CFM
Rated voltage: 12 V DC
IP protection: According to IP68

Polarity protection, blockage protection
Speed control: PWM

Output signal: revolution indication

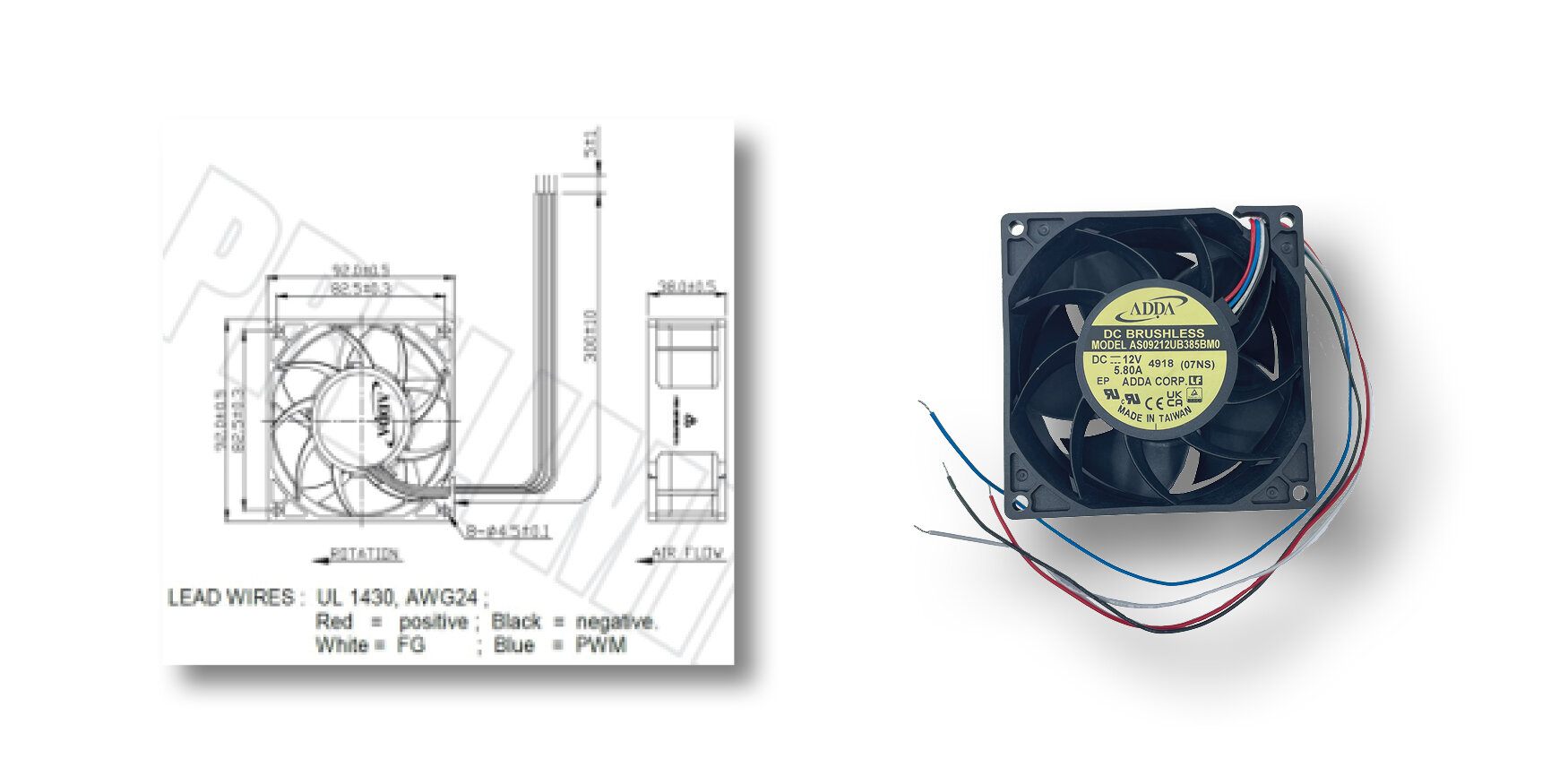

Manufacturer: ADDA
Part number: AS09212UB385BM0(07NS)
Dimensions: 92 x 92 x 38 mm
Maximum air volume: 178,910 CFM
Rated voltage: 12 V DC
IP protection: According to IP68

Polarity protection, blockage protection
Speed control: PWM

Output signal: revolution indication

Manufacturer: ADDA
Part number: AS08012UB385BM0
Dimensions: 80 x 80 x 38 mm
Maximum air volume: 132,031 CFM
Rated voltage: 12 V DC
Polarity protection, blockage protection
Speed control: PWM

Output signal: revolution indication

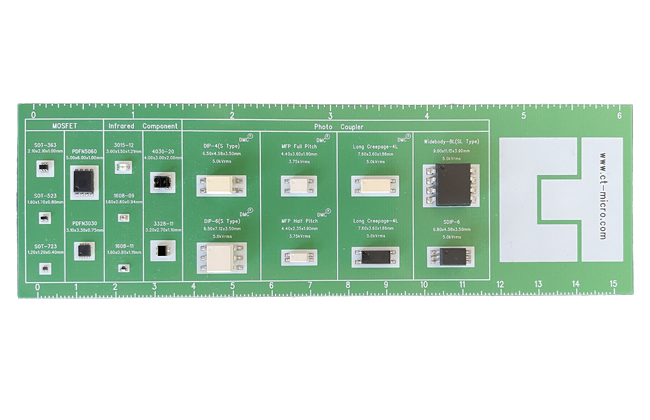

Photo Coupler

Standard and special customised solutions

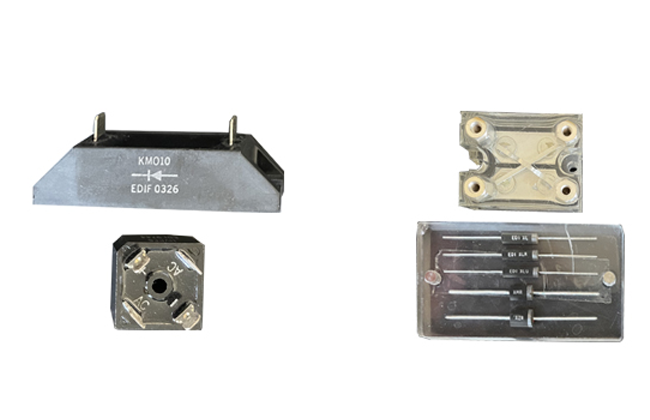

High Voltage Device from EDI

Protection Device

We can support nearly all request from TVS-Diode, MLV, GDT and other combined solutions

HenLv

Replacement for MORNSUN -> insulated power supplies

Different Power solution

MPS-Modules, PMIC and standard DC/DC converter DC/DC converter also available from Nisshinbo, ESMT, Giga Device and Holtek

32 Bit MCU Giga Device and Holtek

From GD is only a STARTER-Kit and from Holtek a full EVB

THE BASIS FOR INDUSTRY 4.0 AND THE INDUSTRIAL INTERNET OF THINGS (IoT)

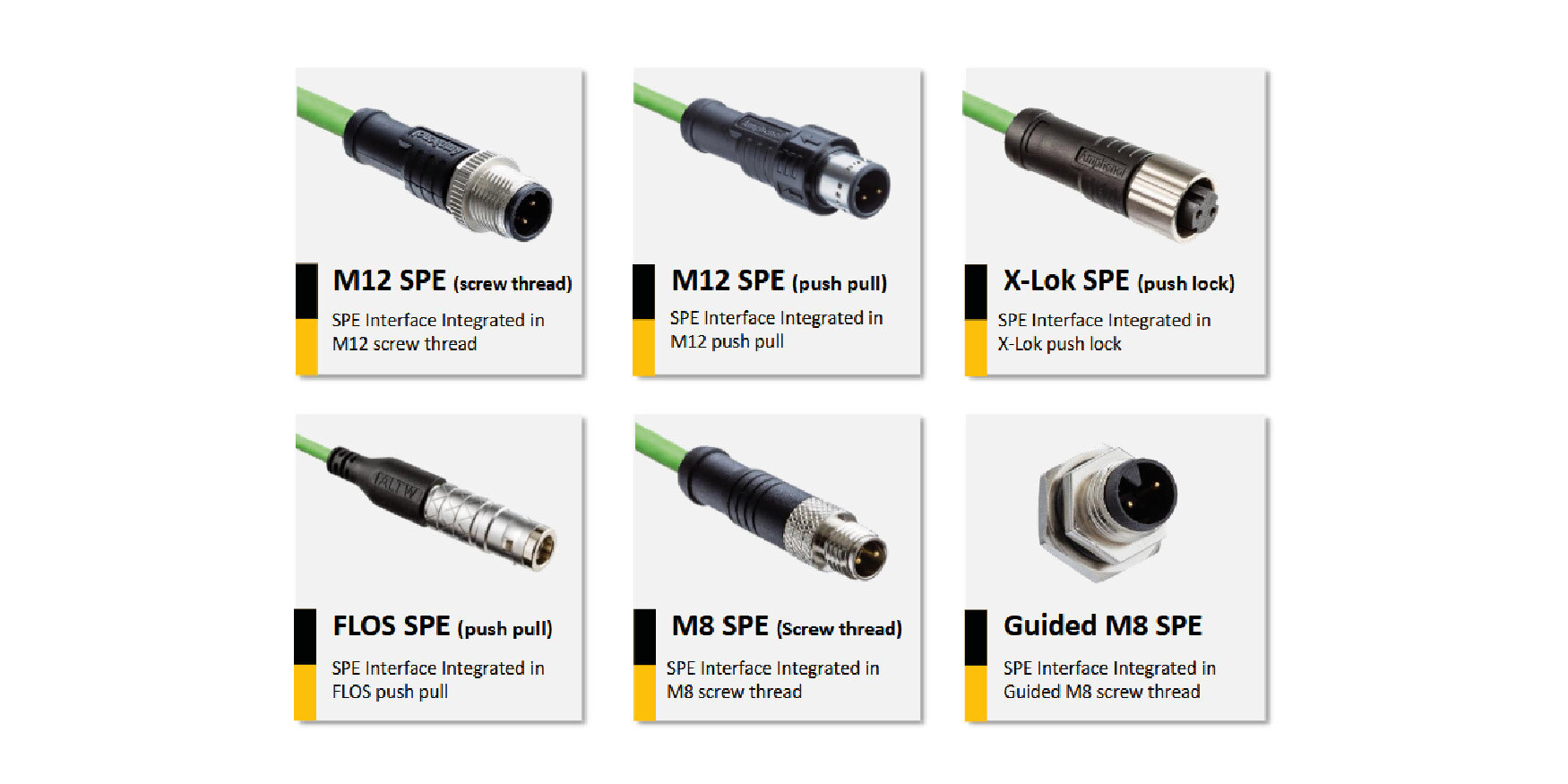

Amphenol LTW’s SPE mechanical interfaces are all designed and made according to IEEE 802.3bp standard offering three mechanical mating interfaces all IP67 up and above giving you the freedom to choose the interconnects suitable to your needs and requirements for industrial and ruggedized applications.

• Multiple mechanical Interfaces IP67 and above for industrial and ruggedized applications.
• Freedom of choices per your needs and requirements.
• Budgets, pay for what you need.
• Providing Low Power & Simply Networking On End-point Sensors.
• Cost-Effective, smaller & lighter than standard 4 pairs Ethernet cable.
• Compatible 802.3 10/100/1000 Base-T1 data rates as existing technologies.
• Receptacle IP67 UNMATED waterproof, also available in double ended and field installable.
• Vibration resistance 20g (10 ~ 2,000 Hz).
• Supports PoDL (Power Over Data Lines).

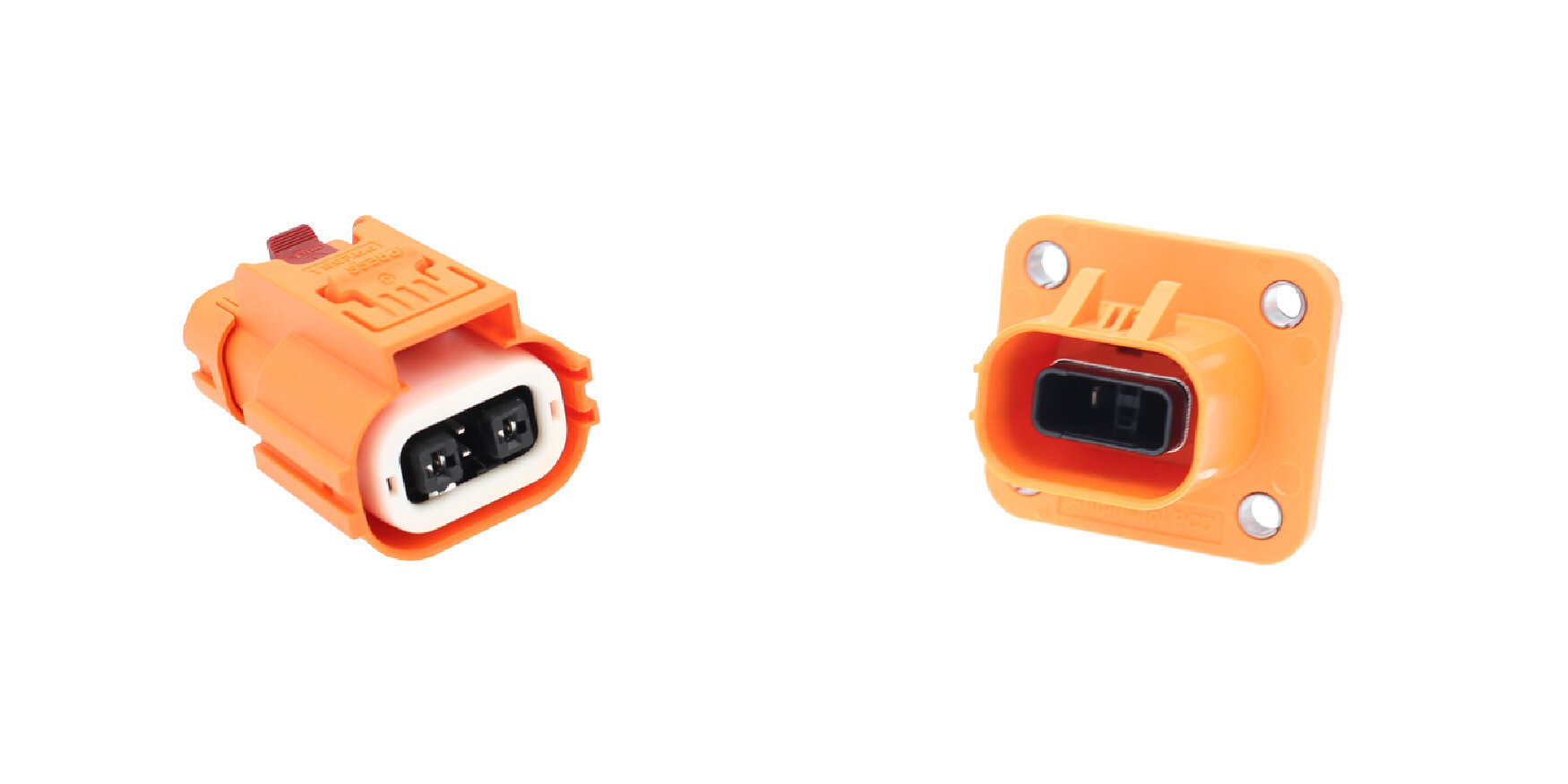

HVSL282062A104

• Female cable connector; straight; 4mm²; with HVIL
• Number of positions (w/o PE) : 2
• Rated voltage : 800 V
• Rated current  (40 °C) : 23 A
• IP-class mated: IP69k
• Termination: crimp
• Coding position : A-coding

HVSL282022A

• Male panel connector; straight; with HVIL
• Number of positions (w/o PE) : 2
• Rated voltage : 1000 V
• Rated current (40 °C) : 23 A
• IP-class mated :  IP69k
• Termination: screw
• Coding position : A-coding

Fastest connection technology for conductors

Product advantages

Application field

• Building controls
• Internet of Thinks (IoT)
• Thermostats
• Door entry & Access control
• Security systems & Intrusion detection sensor
• Room sensors & Room operating units
• Fire damper modules
• KNX modules
• Elevator control

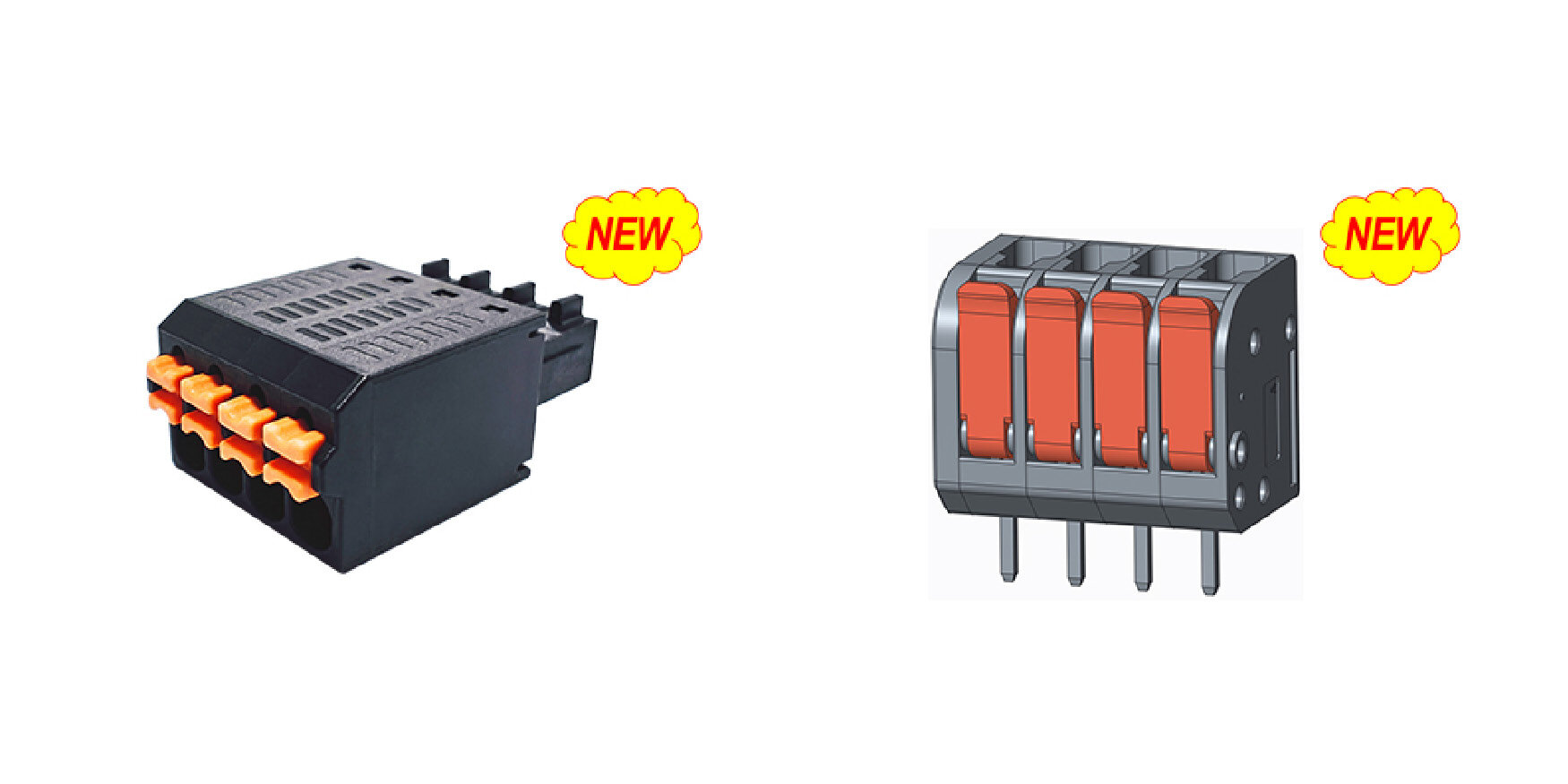

PS - PUSH_IN

• This new  plug allows stranded wires to be pushed-in.
• No need to use a tool to clamp.
• Compatible with existing headers, easy upgrade of the plug
• 8 different body colors available

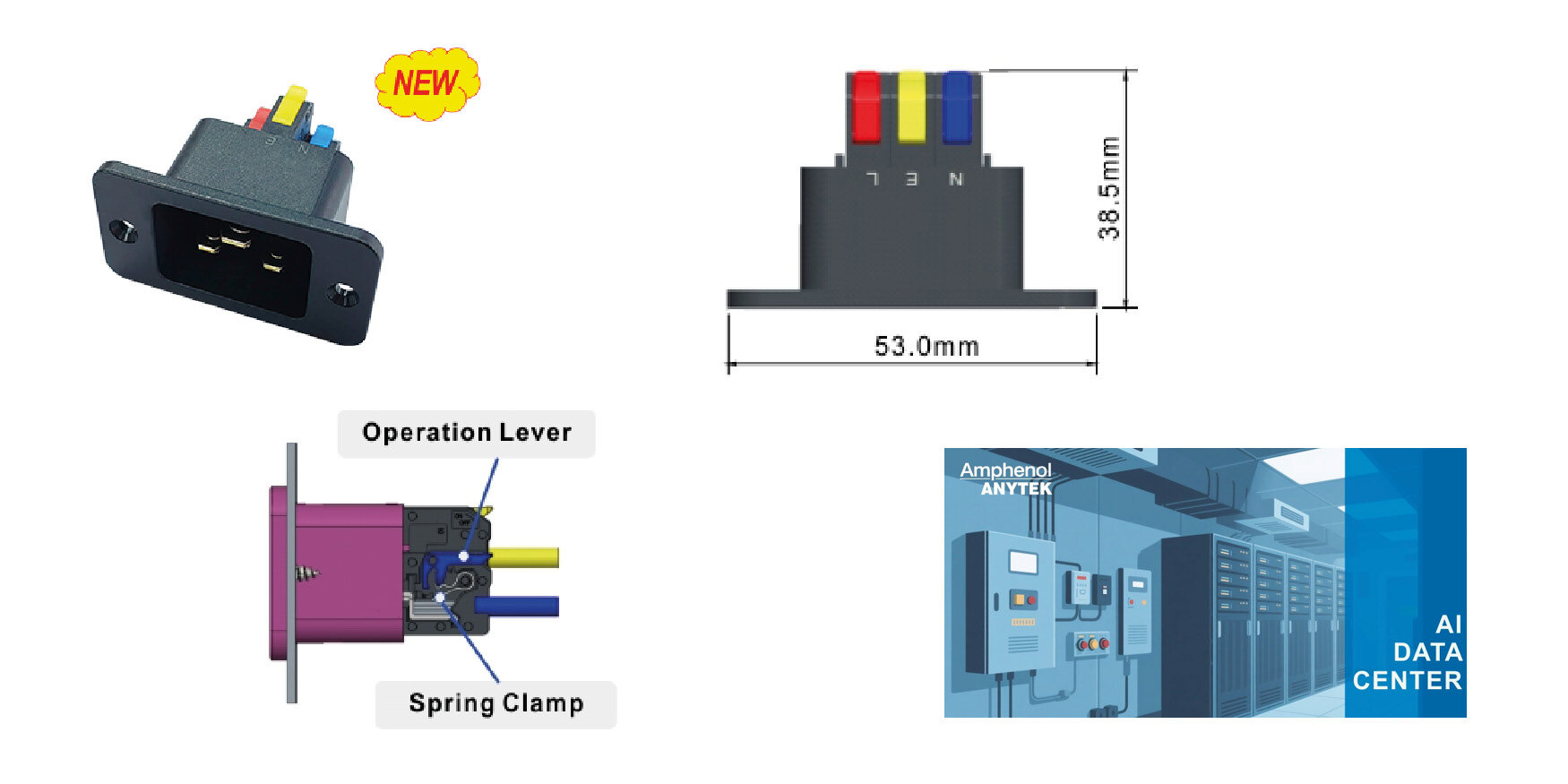

QT – Fixed connector

• Using the latest PUSH-IN technolgy, the wiring efficiency increased by 70%.
• Multiple clamping units can be kept open at the same time, simplifying the connection of multi-core cables.
• To maintain a long-term reliable connection, the spring connection ensures the stability of the wire.
• Next-generation intuitive tool-free operation.
• Provide sound feedback when wiring, convenient and fast.

The lever position indicates the connection status.

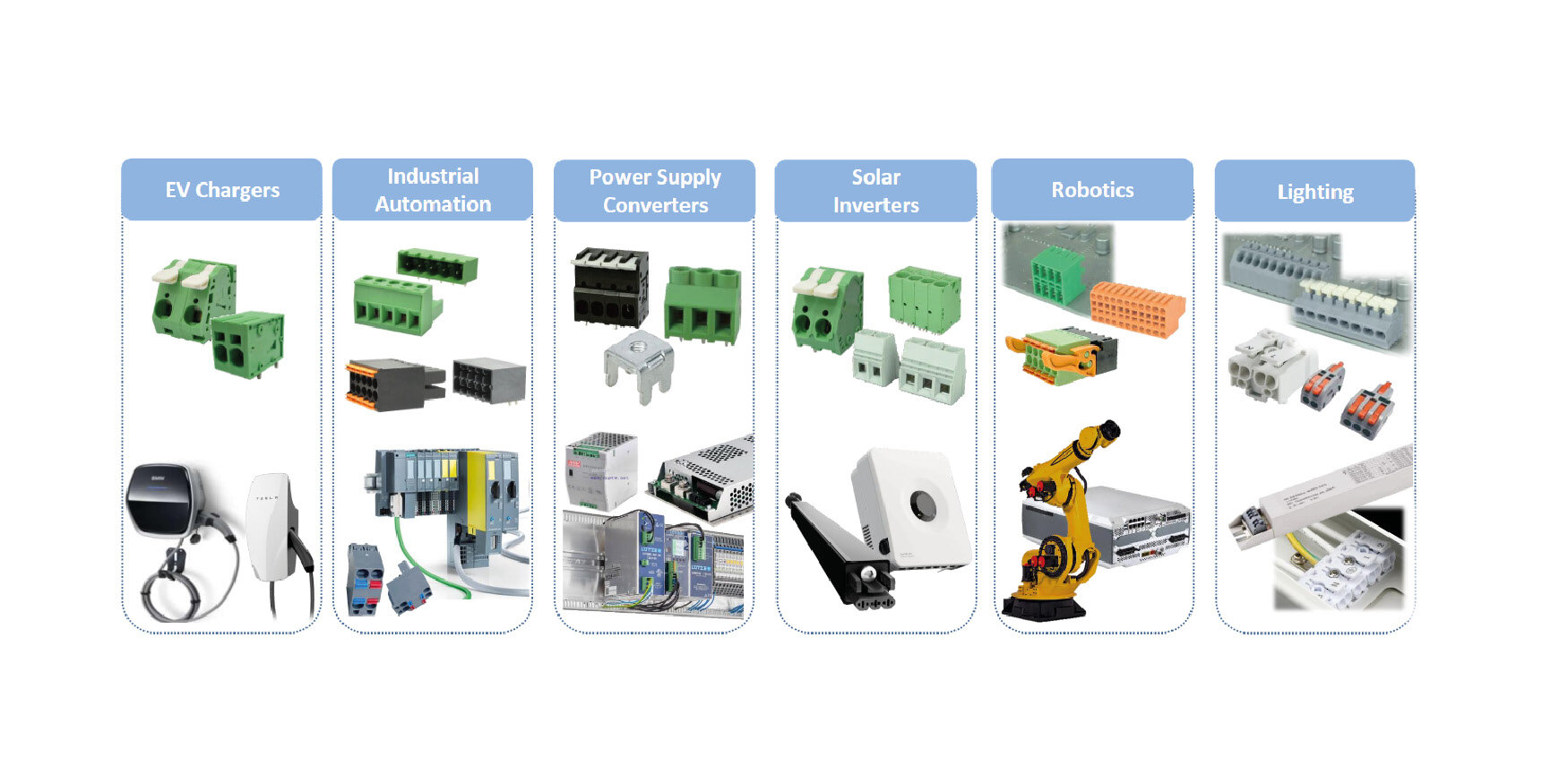

Fixed Type Terminal Block

• Wire Protector System

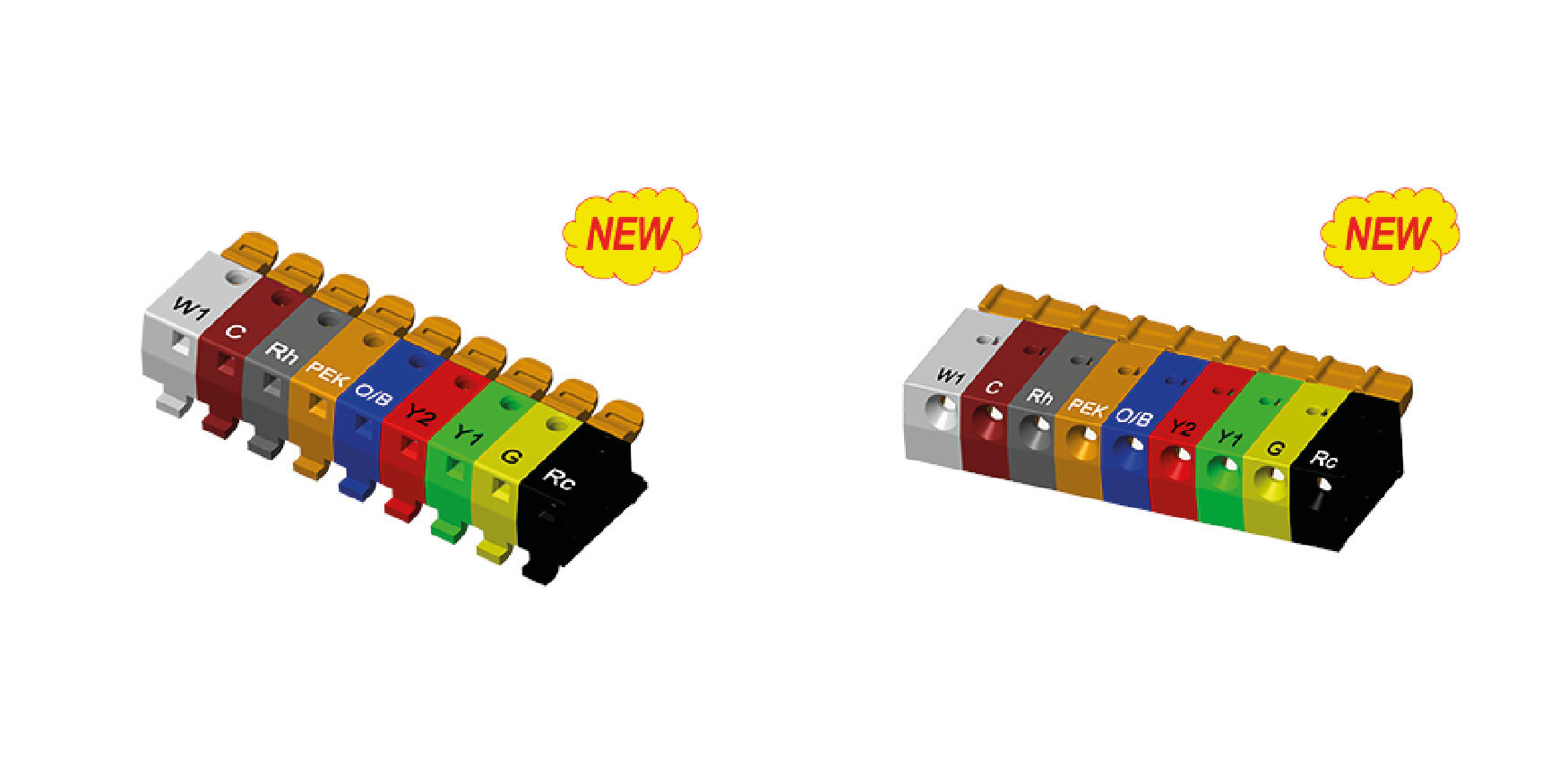

Pluggable Type Terminal Block

• Pin-Plugs Pluggable System
• Header for Pluggable System
• Screw Clamp Plugs for Pluggable System
• Spring Clamp Plugs for Pluggable System

The ToF-based camera CS20 offers a resolution of 320 x 240 pixels and is suitable for short-range measurements up to 3.75 m. It supports both depth and infrared images and is equipped with a Type-C port. The detection range extends from 0.1 m to 5 m, making it ideal for robots and industrial applications. At Endrich, you can find the CS20, CS30, and CS40 series for precise 3D detection and measurement in real time. Their robust design and support for industrial communication protocols make them integrable into complex industrial systems. Thanks to the embedded processors, these devices can also be used without additional computing power, reducing system requirements and enabling fast data processing.

The products of the CS series are used in obstacle avoidance for robots, volume measurement, industrial safety, vehicle assistance systems, and 3D modeling. They can be applied in areas such as logistics, robotics, industrial automation, and intelligent transport systems. In particular, the CS40/CS40-Pro is ideal for outdoor applications such as unmanned vehicles or site vehicles.

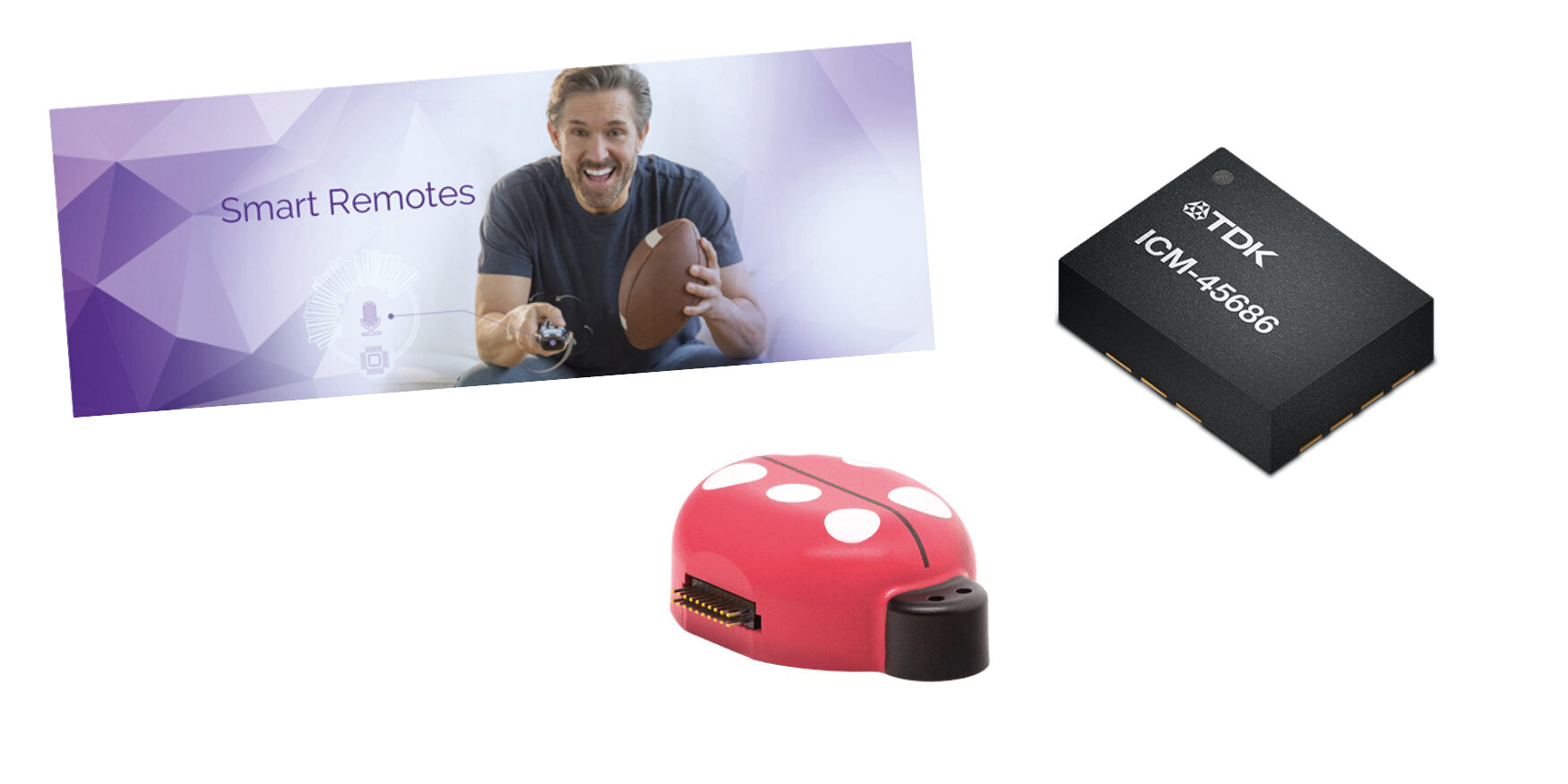

• All-in-one multi-sensor wireless solution with the ICM-45686-S BalancedGyro™ IMU platform
• Machine learning-capable – for creating, testing and deploying ML models on the IMU
• SmartBug 2.0 is an intelligent remote data acquisition module for IoT, developed following the success of the original SmartBug.

An important aspect of SmartBug 2.0 is the ICM-45686-S, TDK's latest BalancedGyro™ IMU and the world's most energy-efficient IMU (220 µA @ 50 Hz 6-axis). BalancedGyro™ technology enables developers to capture high-quality IMU data over a longer period of time due to 3x battery life. The new IMU SmartBug 2.0 is useful for products such as AR glasses, VR, OIS, drones, MR, TWS and robotics for prototyping, data collection and the development of machine learning-based algorithms.

• ICM-45686-S 6-axis motion sensor
• ENS220 barometric pressure sensor
• CH101 ultrasonic time-of-flight sensor
• High-precision triaxial magnetic sensor
• ENS210 digital humidity and temperature sensor
• Advanced Bluetooth 5 SOC with ARM® Cortex™
• M4 CPU - 32-bit MCU & 2.4 GHz Wi-Fi GD32VW553 and HT32F67595

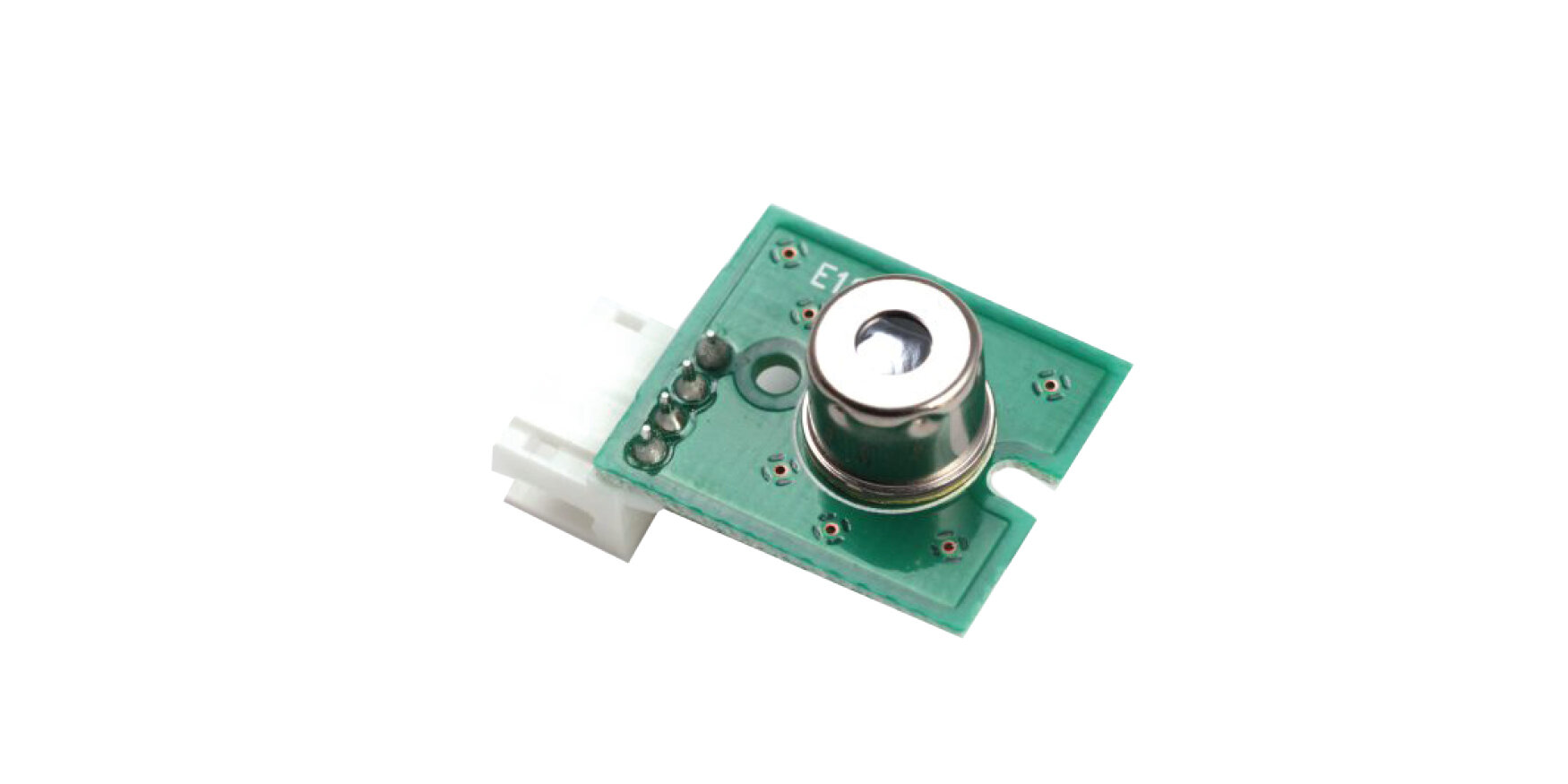

Manufacturer: NiCeRa (Nippon Ceramic Co.,Ltd

Thermopile, a thermal infrared sensor that generates a thermoelectromotive force that depends on the incident energy when it receives infrared radiation emitted from an object and can detect the absolute amount of energy (temperature). It is suitable to detect absolute temperature value of the object.

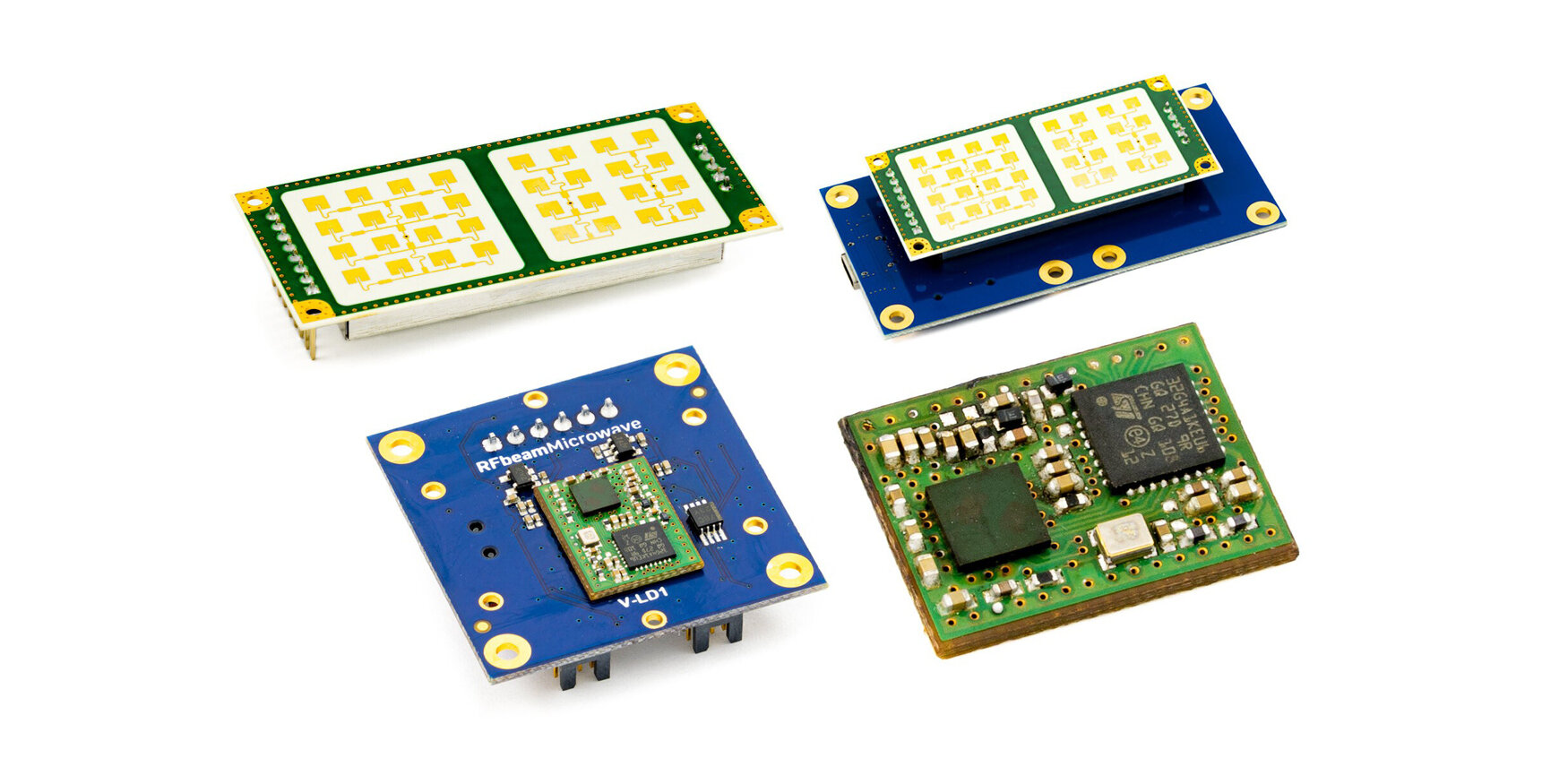

Manufacturer: Rfbeam, Nisshinbo Micro Devices, OmniPreSense
Frequency range: 24 GHz and 61 GHz Module types

Analog modules

• Digital modules with internal signal processing
• Measurement of speed, distance and angle possible

Applications

• Level metering
• Movement detectors for lighting
• Home security (burglar alarm)
• Traffic control
• Automated guided vehicle system

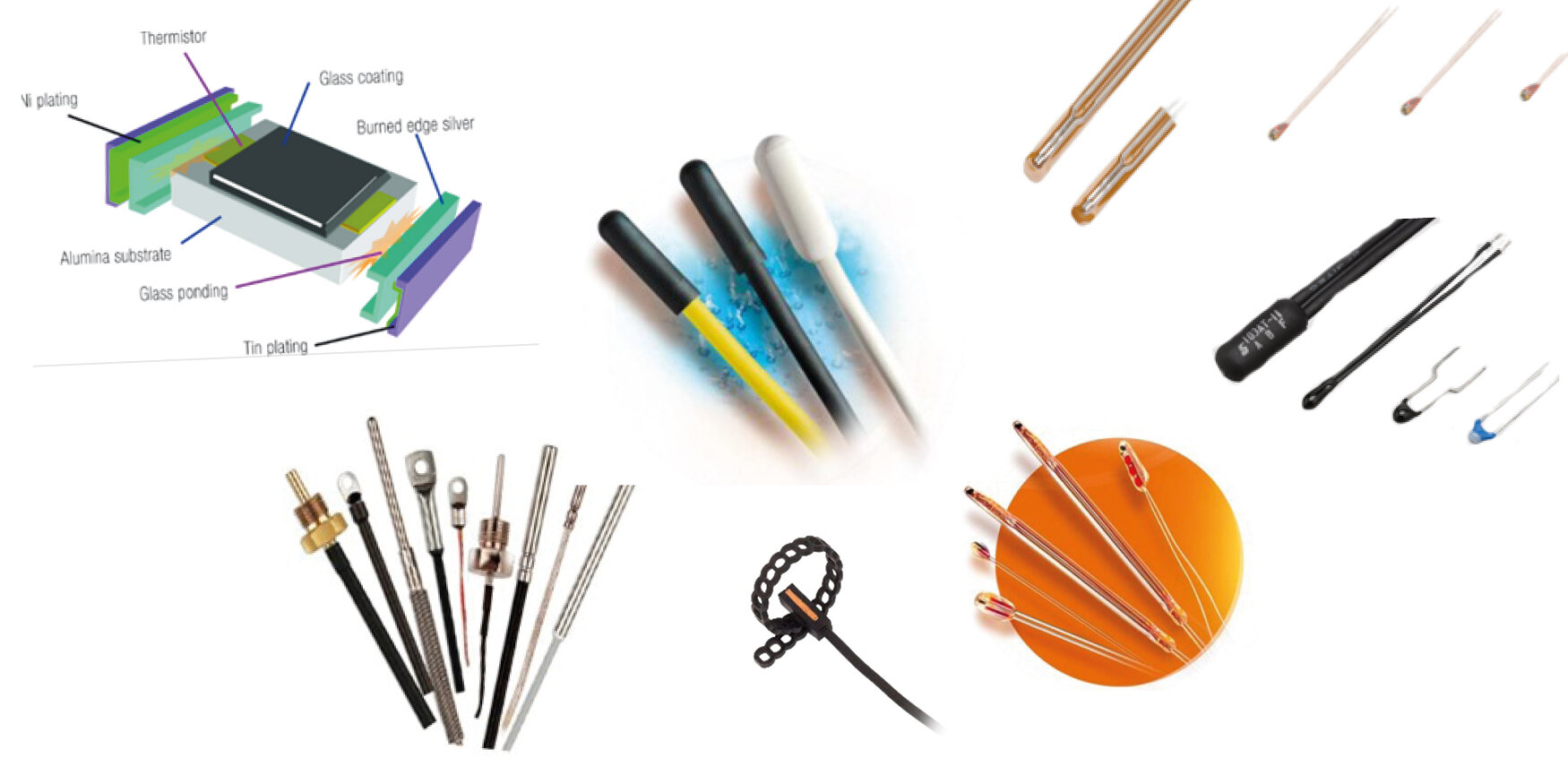

Manufacturer: Semitec, Tateyama, CTS TEWA

Semitec
Semiconductor based ceramic resistors, guaranteed long term stability of minimum 10 years, high precision thermistor featuring extremely small B-value tolerance and resistance.

Tateyama
Thik film thermistors based on AI² O³ substrate, patented core material technology, wide variety and customization of R/T curves, guaranteed long-term stability of minimum 10 years

CTS TEWA
Semiconductor based ceramic resistors, wide range of assembled NTC/PTC/PtRTD temperature probes, customized sensors on demand with different cables and connectors

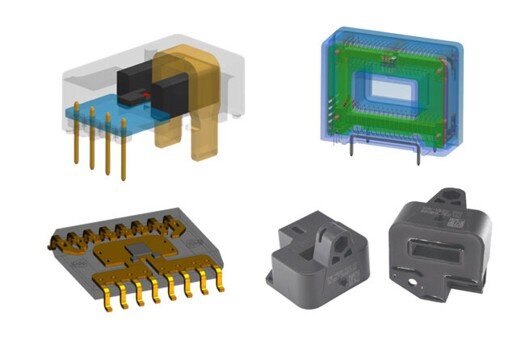

Current Sensors

Manufacturer: Semitec

Based on TMR, AMR or Hall-Technology Ferrite-core and coreless current sensors available. Open- und closed-loop current sensors. Residual current sensors for ac and dc residual currents. Automotive-certified.
 Production facility in Germany.

TMR-switches are available from Sensitec as well.

Manufacturer: TDK-Micronas

TDK-Micronas is the center of competence for magnetic field sensors, angle detection, and CMOS integration within the global TDK Group. With over 25 years of in-house production expertise and a legacy of innovation, TDK Micronas delivers automotive-grade sensor and actuator solutions tailored to the needs of tomorrow’s mobility.

Large portfolio of high-performance hall sensors

• Hall switches
• Linear Hall sensors
• 2d- and 3d-Hall angle sensors, programmable
• Fully automotive certified, partially ASIL-ready, redundant types and types with integrated capacitors
• Current sensors
