Embedded World 2026
Wall 3: Power Management, Wireless and Sensors
Power Management

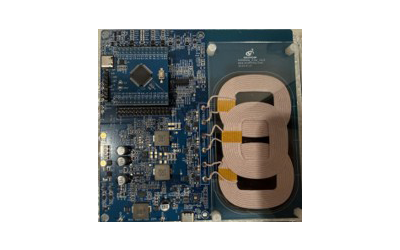

SC5050Q is a new generation of analog-front-end, designed for high-integration, high-efficiency wireless power transmitter solution. SC5050Q can cooperate with a digital controller to create a high-performance high power wireless power transmitter system.
Product Details
- VIN Range: 4V-36V
- Output Power (MAX): 50W (RX)
- Protocol: MPP 25W+BPP 5W/EPP 15W/proprietary 50W

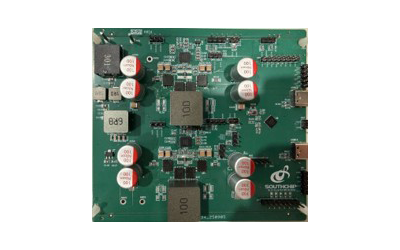

Southchip's PD-EPR 240W demo includes two high-voltage DC-DC SC8708Q and one protocol controller SC2006Q. SC8708Q is a buck-boost controller that supports input and output voltages up to 80V, features flexible I2C configuration, integrated ADC functionality, various protections, and supports frequency dithering to optimize EMI. SC2006Q is a protocol controller that integrates an ARM Cortex-M0 core, 128KB Flash, and supports dual-channel protocol control.
Product Details
- VIN (MAX): 80V
- VOUT (MAX): 48V
- Output Power (MAX): 240W
- Protocol: PD3.2/QC/FCP/SCP/SVOOC/MI
SC77010 device is a single channel smart controller for high-side power FETs. It could be used in 12V, 24V and 48V automotive applications. Full diagnostics and high-accuracy current-sense features enable intelligent control of the load with external FETs. The IC could be interfaced to a host microcontroller through a 3.3V and 5V CMOS-compatible SPI interface or be controlled directed by IO pins in limp home mode.
Product Details
- Wide Operating Voltage: 6V-60V
- Ultralow Standby Current: <100μA

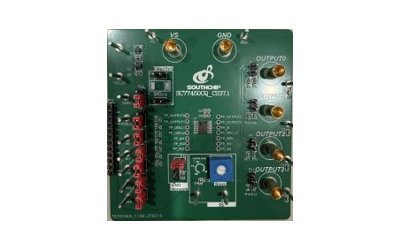

SC77450CQ is an automotive grade, fully protected 4 channel smart high side driver. Each channel offers full diagnostics and high accuracy current sensing, enabling intelligent load control even in harsh conditions. It integrates four 50mΩ MOSFETs in a compact package, with advanced protections including overload and over temperature shutdowns, thermal latch off, etc.
Product Details
- 4-Channel Smart High Side Driver
- Ron: 57mΩ@25℃
- Wide Input-Voltage Range: 4V-28V, withstand 40V load dump
- Ultralow Standby Current: <0.5μA
- High-Accuracy Current Sense: up to 4%

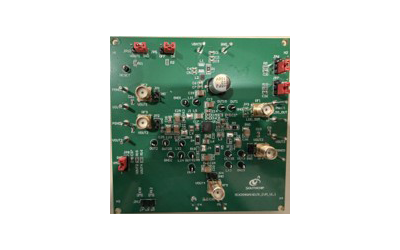

SC6208Q is a high-efficiency, five-output PMIC with ASIL B for safety applications and windowed watchdog.
OUT1 is a synchronous step-down converter that converts vehicle battery voltage from 2.5V to 5V at up to 3A. OUT2 and OUT4 are low-voltage synchronous step-down converters which operate from OUT1 and provide a 0.5V to 3.6875V output voltage range at up to 3A. OUT3 is a low-voltage synchronous step-down converter which operate from OUT1 and provide a 0.5V to 3.6875V output voltage range at up to 2A. OUT5 is a low noise high PSRR LDO operate from OUT1 and provide a 1.8V to 3.3V output voltage range at up to 400mA. OUT5 can also be configured as load switch mode by OTP.
All outputs achieve ±1% output error over load, line, and temperature range.
Product Details
- Input Voltage Range: 3.5V-40V
- Output Voltage Range: 2.5V-5V
- High PSRR: 60dB@100KHz
- Frequency: 2.1MHz

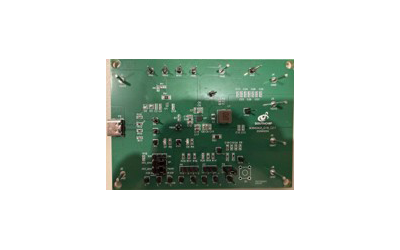

SC89620 is a 1.5MHz highly integrated switch-mode buck charger for 1 cell Li-ion battery applications and NVDC system power path management.
Product Details
- Supports 3.9V-13.5V input sources with 25V ABS voltage
- Battery only mode with 5μA Battery Leakage Current
- Shipping mode with 1μA Battery Leakage Current
- Integrates 8-bit ADC

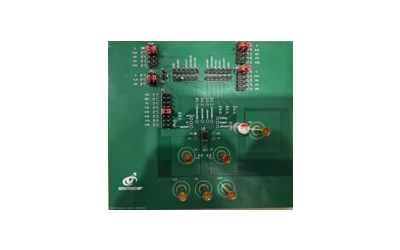

SC77870Q is a H-bridge motor driver with integrated current sense and diagnostics. It could be widely used in 12V automotive applications.
The IC could be configured either as a single full bridge driver or as two independent half-bridge drivers. The FETs are integrated together with the driver as a monolithic solution. The IC could be interfaced to a host microcontroller through a 3.3V and 5V CMOS-compatible SPI interface or be controlled directed by IO pins.
Product Details
- Wide Operating Voltage: 4.5V-35V
- Output Current (MAX): 12A
- Rdson: 84mΩ (QFN package) /98mΩ (HVSSOP package) (for per leg)
- PWM Signal: up to 25KHz

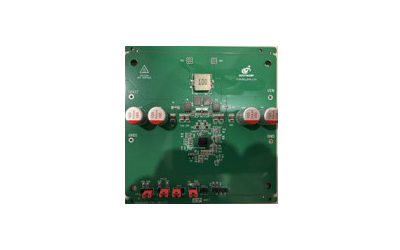

SC8708Q is a synchronous buck-boost controller, which has wide input range from 4.5V to 80V and wide output range from 5V to 80V. SC8708Q also provides input current and output current monitoring function. It can be used in automotive 48V systems.
Product Details
- Wide Input Range: 4.5V-80V
- Compliant with PD3.1
- Switching Frequency: 80KHz-480KHz
Wireless

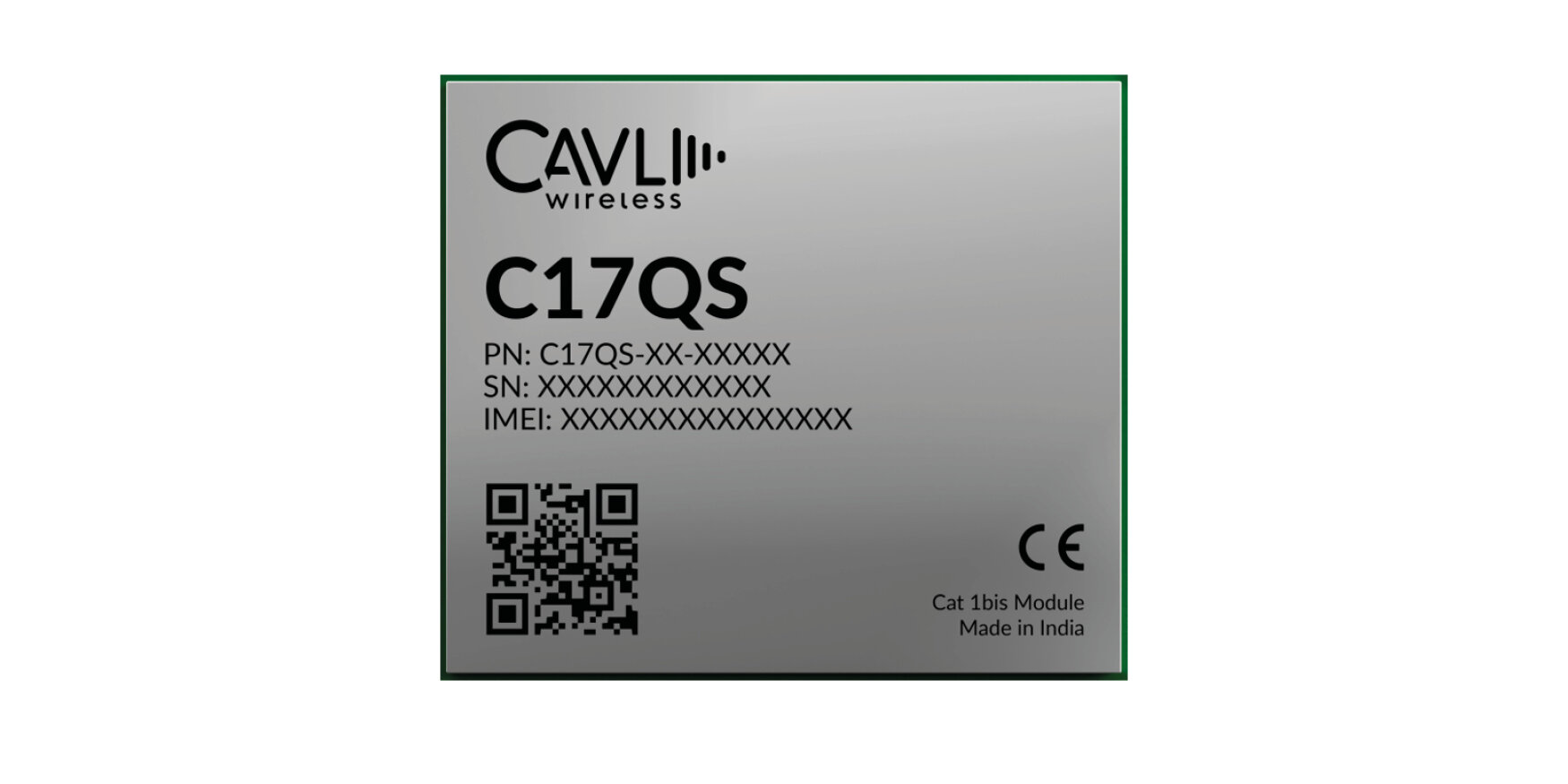

The C17QS modules use their LTE Cat 1bis technology and optional GNSS tracking capabilities to simplify global connectivity and tracking solutions. With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in Worldwide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensure prolonged life cycles in both battery powered and externally powered usecases.

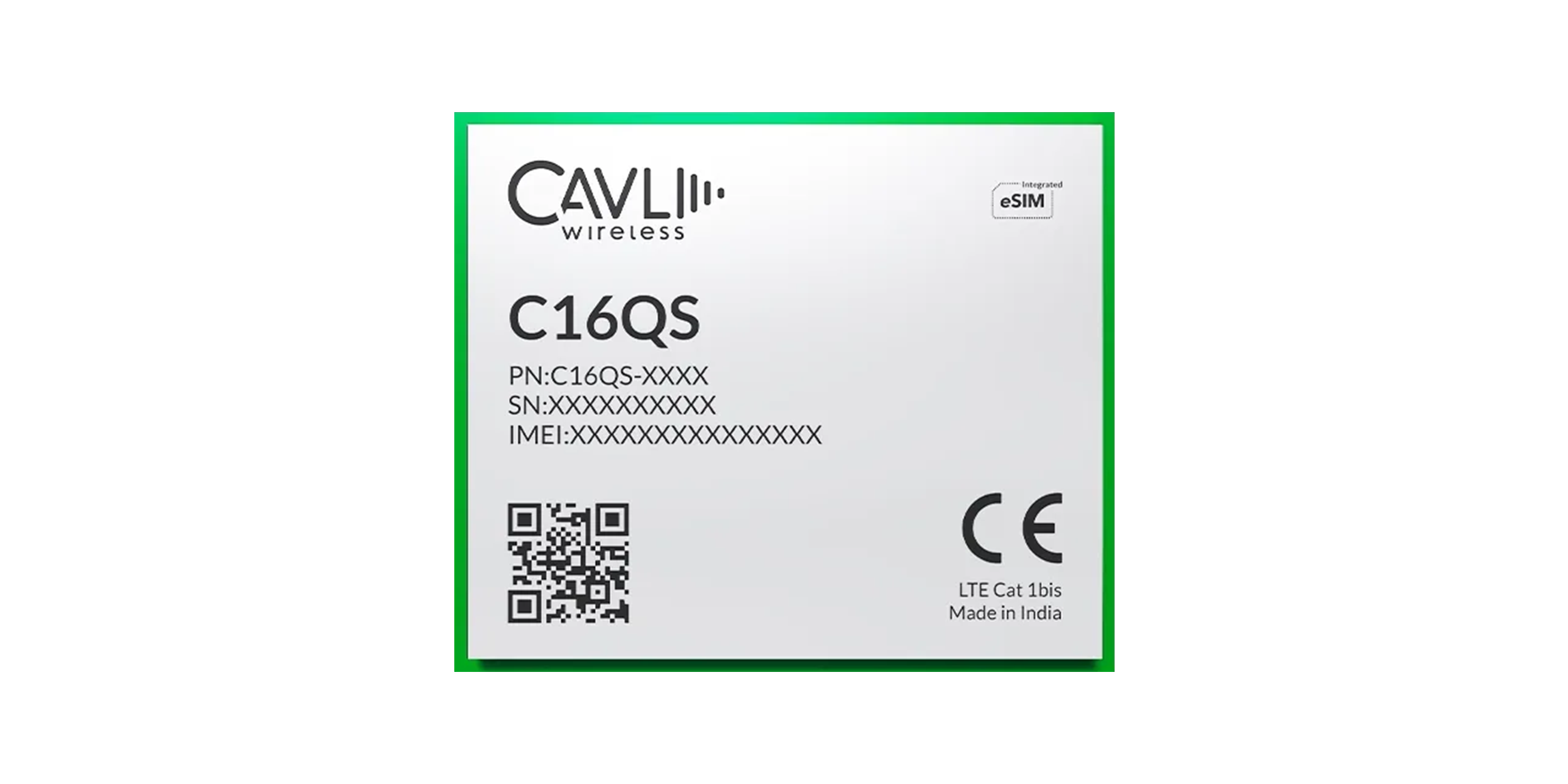

The C16QS series features LTE Cat 1bis IoT modules compliant with 3GPP Release 14, designed for reliable IoT and M2M connectivity. With optional integrated GNSS and eSIM support via the Cavli Hubble platform, the C16QS enables seamless global connectivity and location-based services. Optimized for migration from 2G and 3G to LTE, the modules offer on-edge GPS processing, independent LTE and GNSS power management, and low-power operating modes, making them ideal for applications such as asset tracking, POS, remote monitoring, and energy metering.
Get a first look at the CQM211, Cavli’s new 5G NR workhorse, purpose-built for CPEs, industrial routers, and gateways. Designed to simplify the transition from LTE to high-speed 5G, the CQM211 delivers the performance, scalability, and reliability required for next-generation industrial and enterprise deployments.

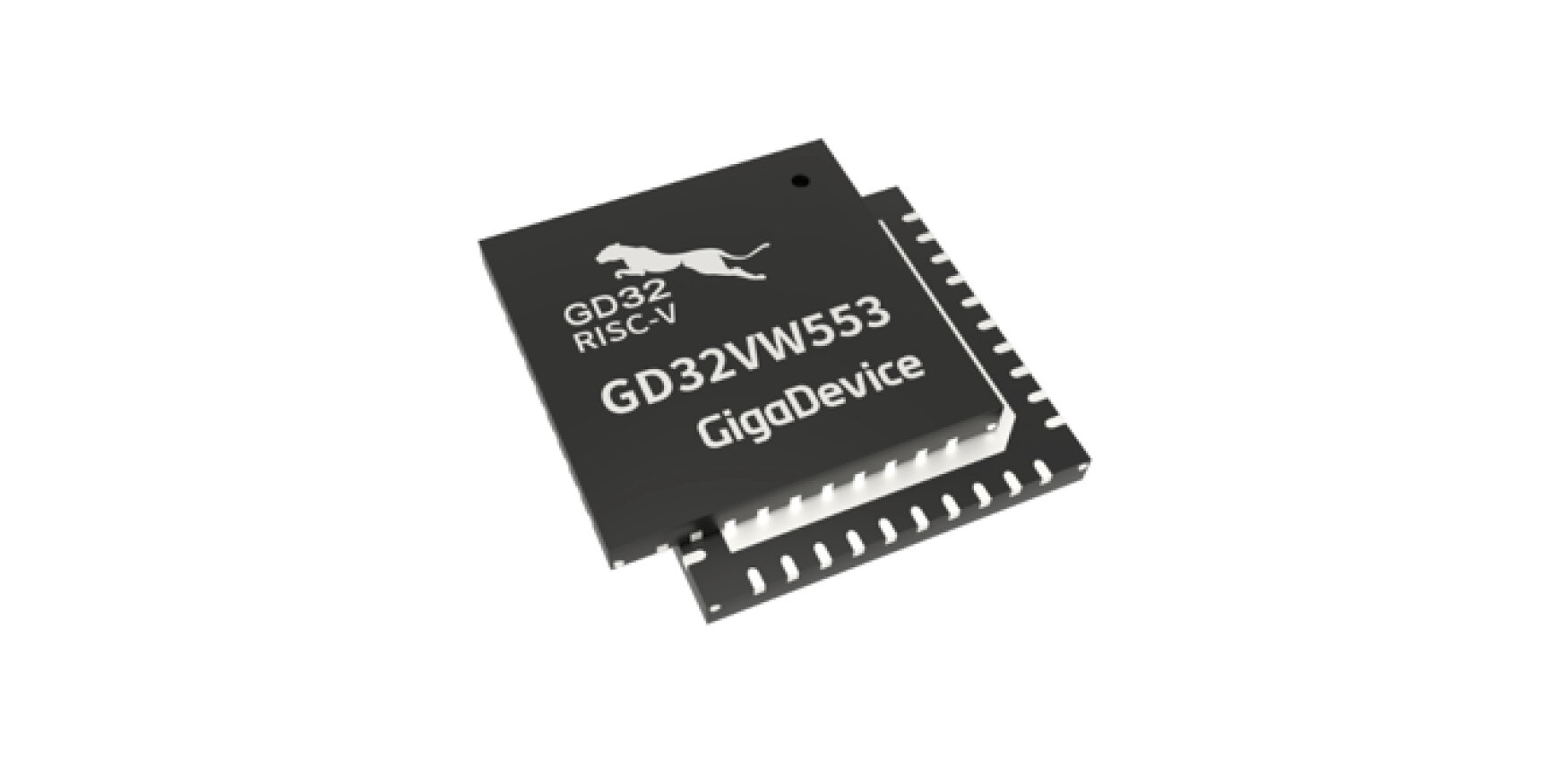

2.4GHz Wi-Fi and Bluetooth Low Energy (BLE) modules, designed for IoT applications such as industrial control, motor drives, user interfaces, power monitoring, alarm systems, consumer devices, gaming, GPS, e-bikes, and optical modules. Available in four variants, offering flexibility in antenna type and operating temperature.

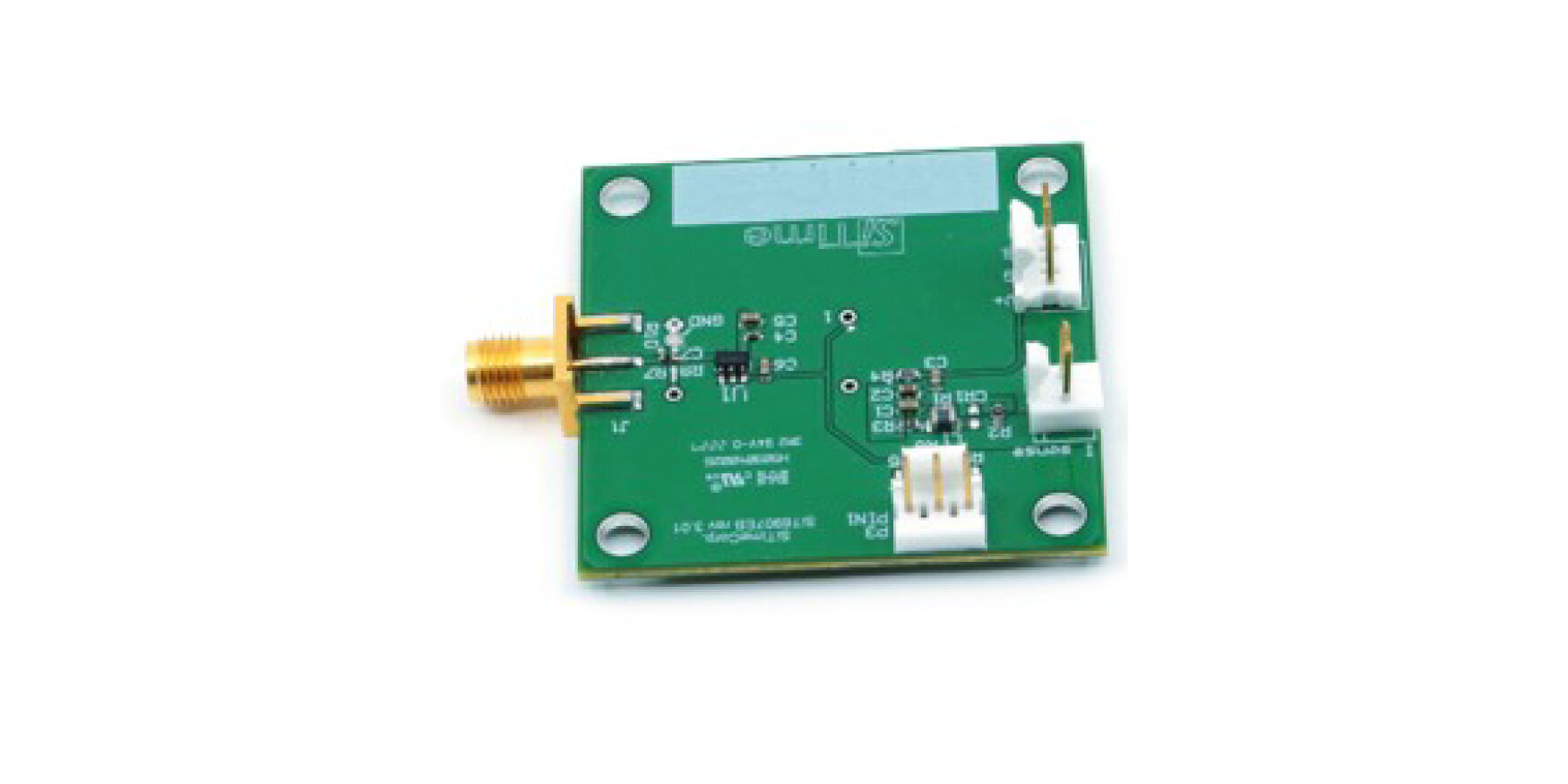

The SiT6907EB evaluation board (EVB) is designed for use with SiTime’s XO in the 5-pin, 2.9 x 2.8 mm (SOT23-5) packages and LVCMOS output type.

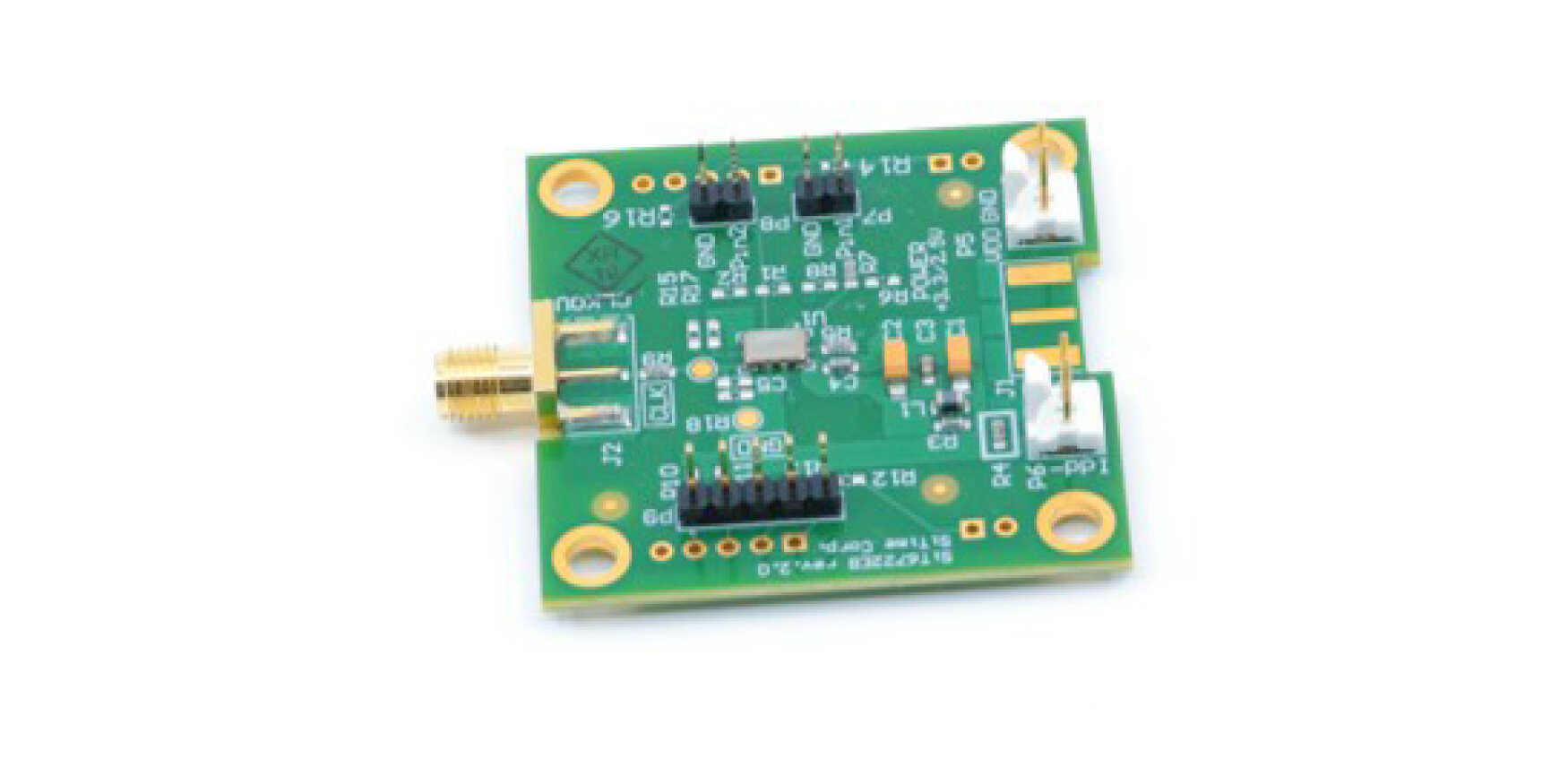

The SiT6722EB evaluation board (EVB) is designed for use with SiTime’s Elite Super-TCXOs in the 10-pin, 5.0x3.2 mm ceramic packages. It enables the evaluation of key functionalities of these precision SuperTCXOs in all three configuration modes including TCXO, VCTCXO and DCTCXO with I2C. VCTCXO, DCTCXO.

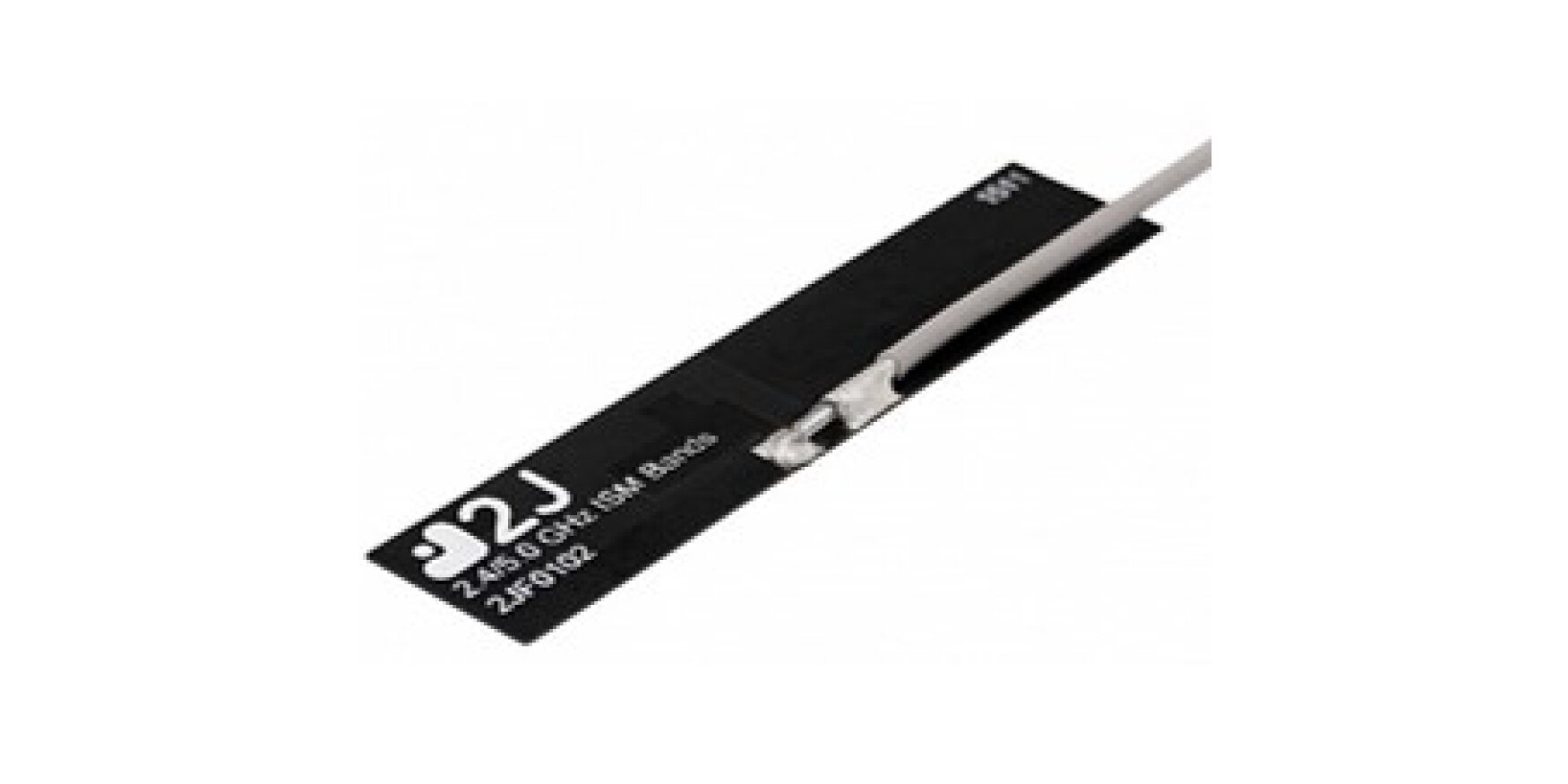

The 2JF0102P antenna is a flexible high efficiency embedded solution covering 2.4 GHz, 5.0 GHz and 6.0 GHz bands. The antenna can be easily mounted in most devices due to self-adhesive layer and small size. 2JF0102P is an omnidirectional, ground plane independent antenna. Cable and connector is upon request.

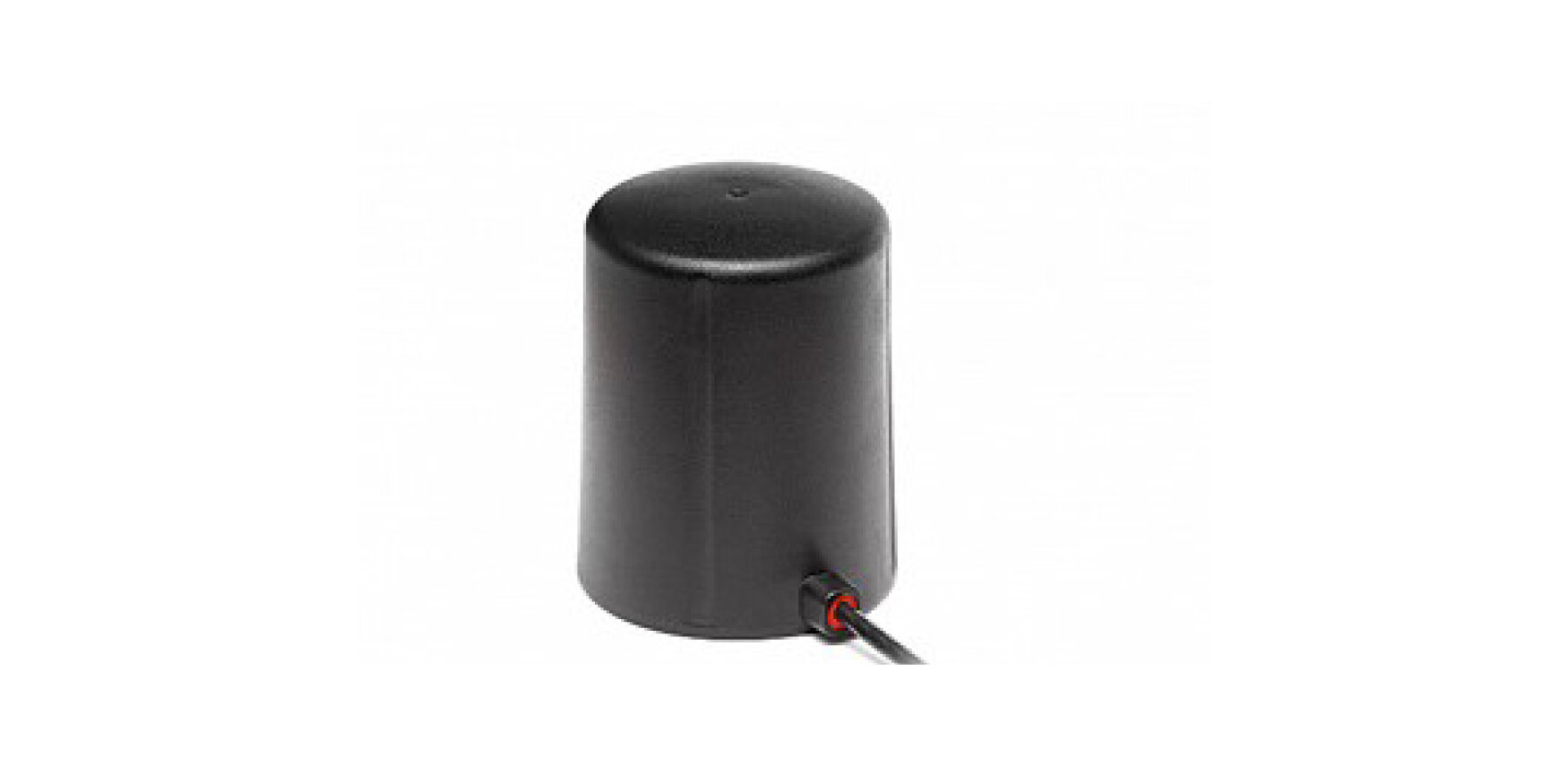

The 2J7724M antenna is a high-performance magnetic mount solution covering cellular and LTE bands, including 698-960 MHz, 1710-2170 MHz, and 2500-2700 MHz. It is ground plane dependent and designed for outdoor applications, offering IP67, IP69, and IK09 certifications. The antenna has a customizable cable and connector, making it versatile for different installation needs. With compact dimensions, it is ideal for various environments.

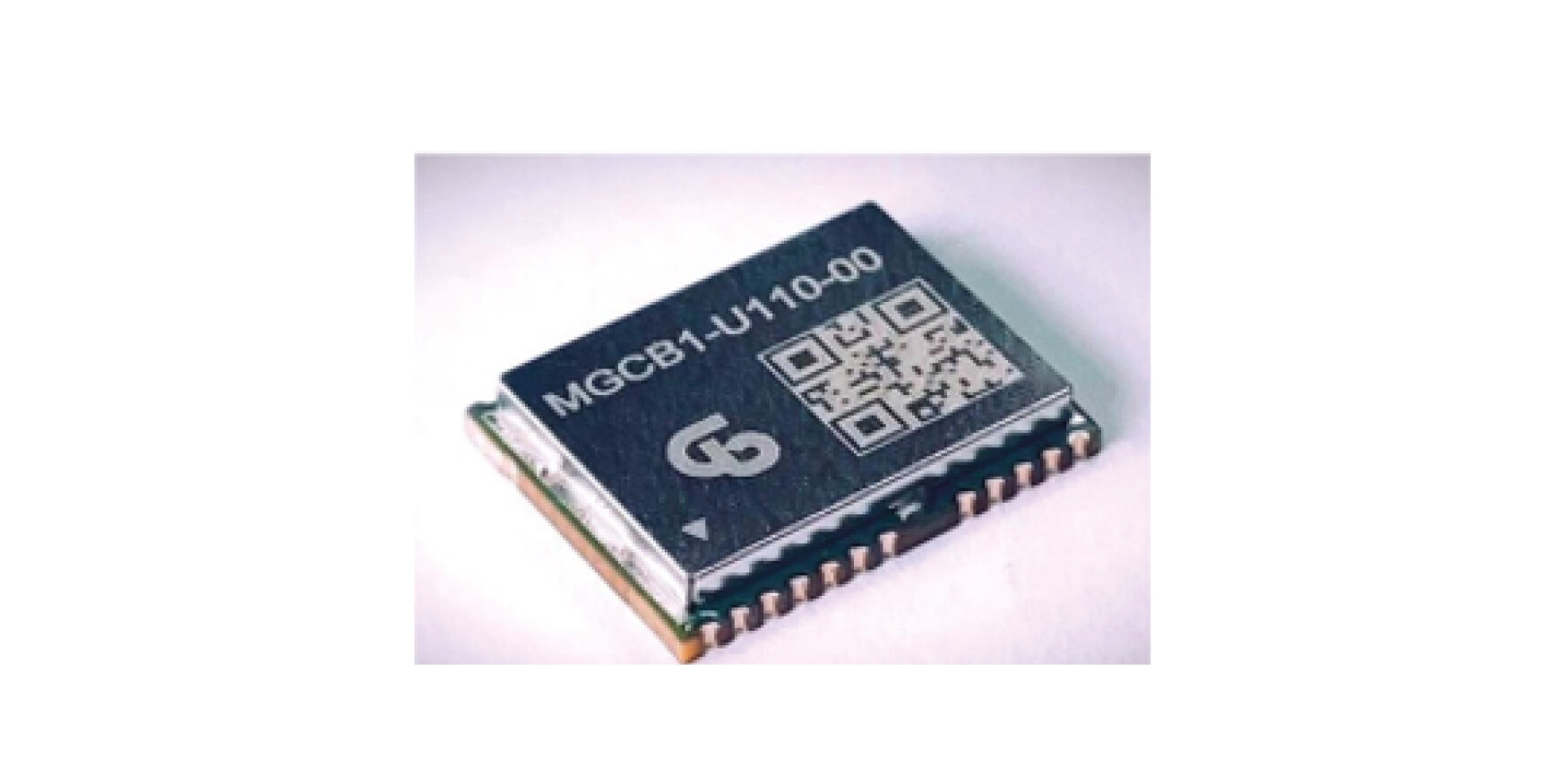

The MGCB1-U110 series is compact, dual band, multi-constellation GNSS receiver module. The module support L1 & L5 band GNSS. The dual band and multi-system GNSS receiver provides the high precision, visible satellite and fast acquisition time. These key features provide excellent performance on position application. The MGCB1-U110 series provide fast TTFF time, acquisition time and up to 135 satellite channel. The module integrates low noise amplifier and high rejection filter. These designs will provide high receiver sensitivity and reduce noise interface. The MGCB1-U110 series is excellent and easy to use in navigation and position application.

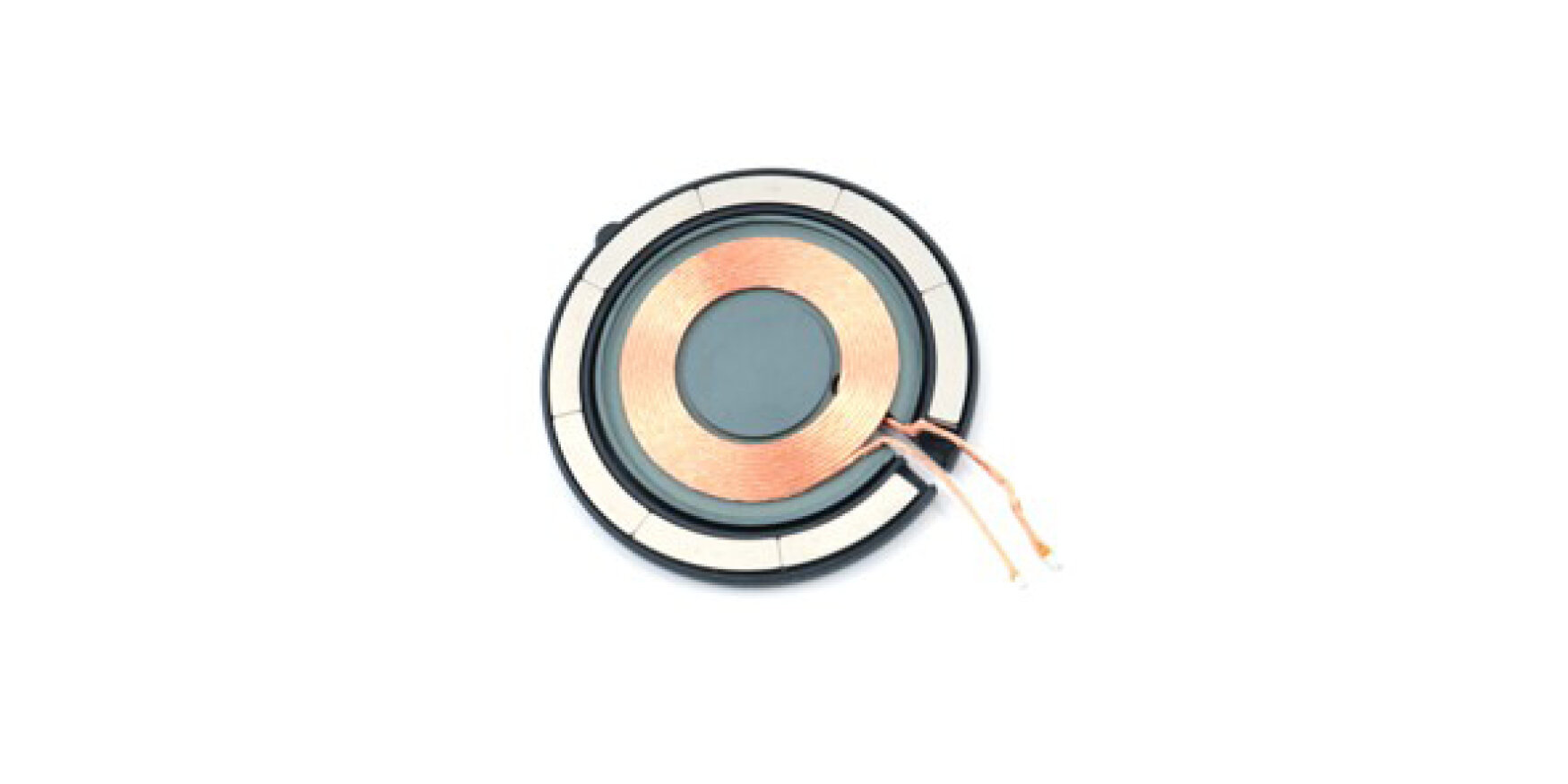

The WPC-W-P-TX-CFM-001 is a high-efficiency wireless power transmitter solution designed for inductive charging applications. It operates within the WPC standard and is ideal for embedded use due to its compact size and flexible design. The component is easy to integrate into most devices, featuring a self-adhesive layer for convenient mounting. The WPC-W-P-TX-CFM-001 offers reliable performance in wireless charging and is customizable.

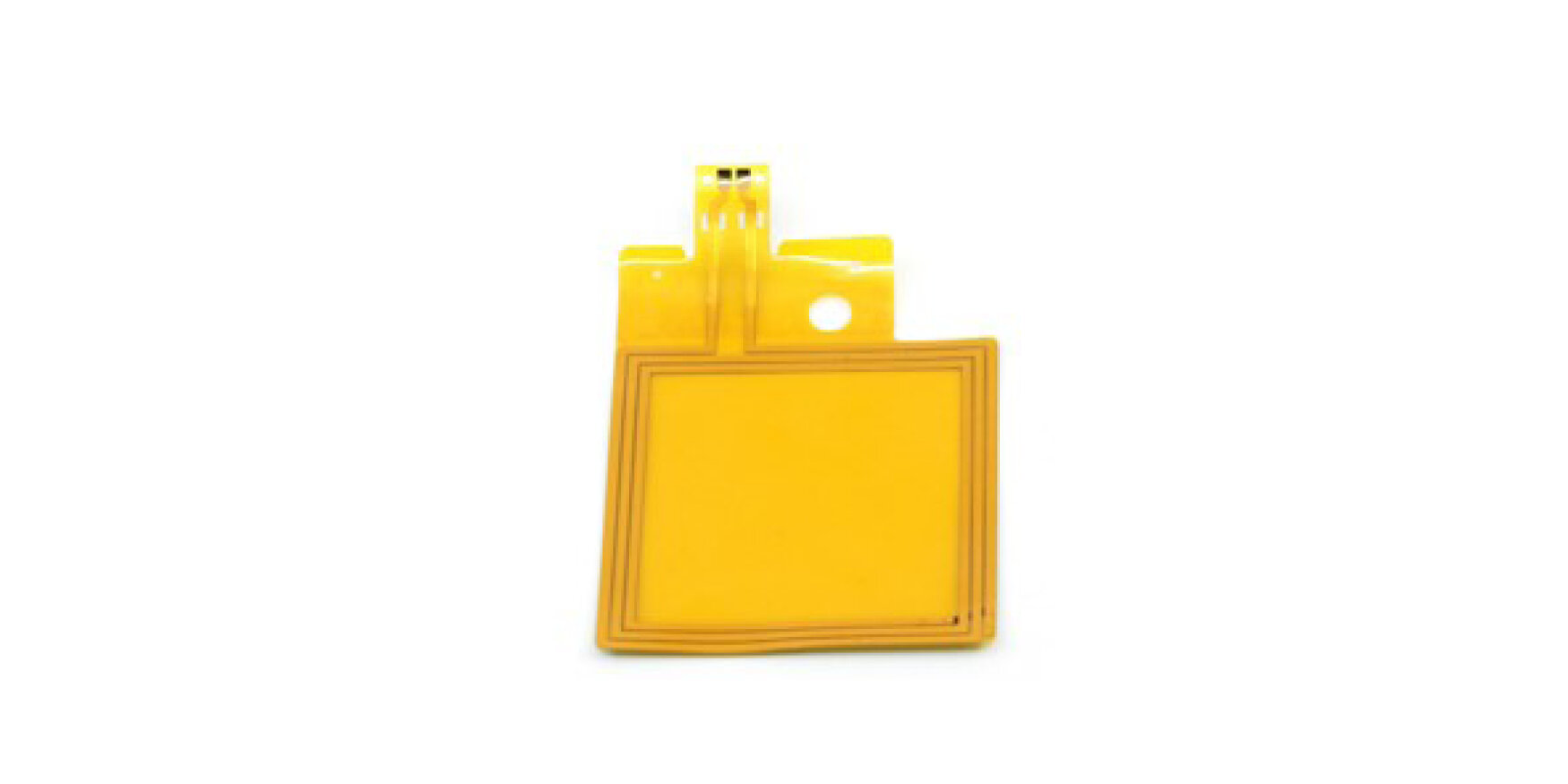

Inpaq offers high-performance NFC solutions designed for secure, short-range communication in various applications, including contactless payments, data transfer, and access control. These NFC antennas are compact, efficient, and easily integrated into devices like wearables and IoT systems. With optimized design for low power consumption and high sensitivity, Inpaq’s NFC solutions ensure reliable performance in challenging environments, providing seamless connectivity for modern wireless communication needs. Customization options for size, shape, and performance are available to meet specific application requirements.
Sensors
The ToF-based camera CS20 offers a resolution of 320 x 240 pixels and is suitable for short-range measurements up to 3.75 m. It supports both depth and infrared images and is equipped with a Type-C port. The detection range extends from 0.1 m to 5 m, making it ideal for robots and industrial applications. At Endrich, you can find the CS20, CS30, and CS40 series for precise 3D detection and measurement in real time. Their robust design and support for industrial communication protocols make them integrable into complex industrial systems. Thanks to the embedded processors, these devices can also be used without additional computing power, reducing system requirements and enabling fast data processing.
The products of the CS series are used in obstacle avoidance for robots, volume measurement, industrial safety, vehicle assistance systems, and 3D modeling. They can be applied in areas such as logistics, robotics, industrial automation, and intelligent transport systems. In particular, the CS40/CS40-Pro is ideal for outdoor applications such as unmanned vehicles or site vehicles.
- All-in-one multi-sensor wireless solution with the ICM-45686-S BalancedGyro™ IMU platform
- Machine learning-capable – for creating, testing and deploying ML models on the IMU
- SmartBug 2.0 is an intelligent remote data acquisition module for IoT, developed following the success of the original SmartBug.
An important aspect of SmartBug 2.0 is the ICM-45686-S, TDK's latest BalancedGyro™ IMU and the world's most energy-efficient IMU (220 µA @ 50 Hz 6-axis). BalancedGyro™ technology enables developers to capture high-quality IMU data over a longer period of time due to 3x battery life. The new IMU SmartBug 2.0 is useful for products such as AR glasses, VR, OIS, drones, MR, TWS and robotics for prototyping, data collection and the development of machine learning-based algorithms.
- ICM-45686-S 6-axis motion sensor
- ENS220 barometric pressure sensor
- CH101 ultrasonic time-of-flight sensor
- High-precision triaxial magnetic sensor
- ENS210 digital humidity and temperature sensor
- Advanced Bluetooth 5 SOC with ARM® Cortex™
- M4 CPU - 32-bit MCU & 2.4 GHz Wi-Fi GD32VW553 and HT32F67595
Manufacturer: NiCeRa (Nippon Ceramic Co.,Ltd
Thermopile, a thermal infrared sensor that generates a thermoelectromotive force that depends on the incident energy when it receives infrared radiation emitted from an object and can detect the absolute amount of energy (temperature). It is suitable to detect absolute temperature value of the object.
Manufacturer: Rfbeam, Nisshinbo Micro Devices, OmniPreSense
Frequency range: 24 GHz and 61 GHz Module types
Analog modules
- Digital modules with internal signal processing
- Measurement of speed, distance and angle possible
Applications
- Level metering
- Movement detectors for lighting
- Home security (burglar alarm)
- Traffic control
- Automated guided vehicle system
Manufacturer: Semitec, Tateyama, CTS TEWA
Semitec
Semiconductor based ceramic resistors, guaranteed long term stability of minimum 10 years, high precision thermistor featuring extremely small B-value tolerance and resistance.
Tateyama
Thik film thermistors based on AI² O³ substrate, patented core material technology, wide variety and customization of R/T curves, guaranteed long-term stability of minimum 10 years
CTS TEWA
Semiconductor based ceramic resistors, wide range of assembled NTC/PTC/PtRTD temperature probes, customized sensors on demand with different cables and connectors
Current Sensors
Manufacturer: Semitec
Based on TMR, AMR or Hall-Technology Ferrite-core and coreless current sensors available. Open- und closed-loop current sensors. Residual current sensors for ac and dc residual currents. Automotive-certified.
Production facility in Germany.
TMR-switches are available from Sensitec as well.
Manufacturer: TDK-Micronas
TDK-Micronas is the center of competence for magnetic field sensors, angle detection, and CMOS integration within the global TDK Group. With over 25 years of in-house production expertise and a legacy of innovation, TDK Micronas delivers automotive-grade sensor and actuator solutions tailored to the needs of tomorrow’s mobility.
Large portfolio of high-performance hall sensors
- Hall switches
- Linear Hall sensors
- 2d- and 3d-Hall angle sensors, programmable
- Fully automotive certified, partially ASIL-ready, redundant types and types with integrated capacitors
- Current sensors
