Pressure Transmitter

Transmitters are a key component of measurement and control technology in industrial systems and applications. They supply measurement data for the control, monitoring or supervision of hydraulic or pneumatic processes. With their standardized output signal interfaces such as 4~20mA or 0~10V, these transmitters are an indispensable part of the IoT infrastructure.

There are 10 of 26 products shown.

M20

  • Description: Pressure Transmitter Suitable For General Industry
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 250 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 5 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
M20

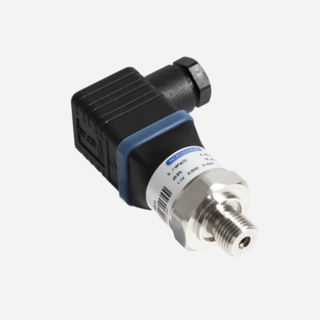

M20FL

  • Description: Pressure Transmitter for Oxygen Measurement
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 250 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 5 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
M20FL

MDM390

  • Description: OEM Differential Pressure Transducer
  • Pressure Type: Differential
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 35 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Manufacturer: Microsensor
MDM390

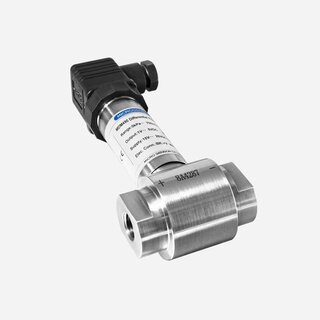

MDM490

  • Description: Differential Pressure Transmitter
  • Pressure Type: Differential
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 35 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MDM490

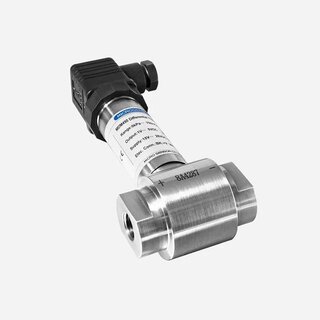

MDM4901FL

  • Description: Differential Pressure Transmitter for Oxygen Pressure Measurement
  • Pressure Type: Differential
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 35 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MDM4901FL

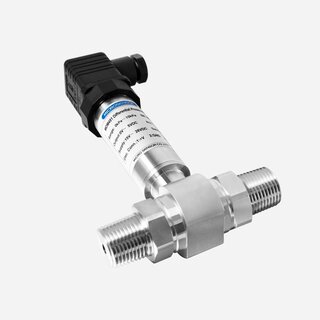

MDM491

  • Description: Piezoresistive Differential Pressure Transmitter for General Industries
  • Pressure Type: Differential
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 20 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MDM491

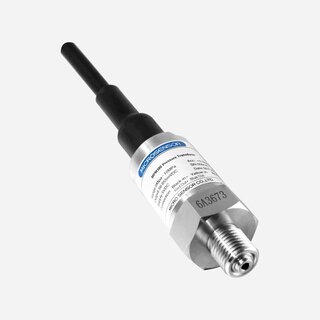

MPM380

  • Description: MPM380 Piezoresistive Pressure Transducer is a general-purpose static gas and liquid medium measurement pressure sensor.
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.3 ±%FS
  • Manufacturer: Microsensor
MPM380

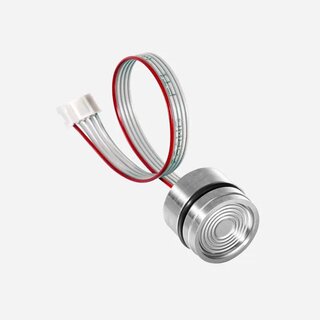

MPM3801

  • Description: Digital I²C output Pressure Sensor
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 3.3 V
  • Power supply max. [VDC]: 5 V
  • Manufacturer: Microsensor
MPM3801

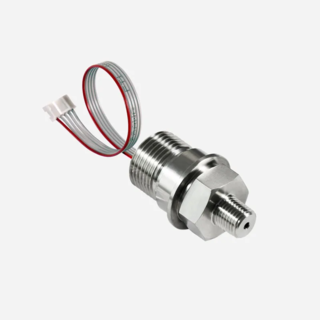

MPM3801A

  • Description: Digital Pressure Transmitter
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 3.3 V
  • Power supply max. [VDC]: 5 V
  • Manufacturer: Microsensor
MPM3801A

MPM3801GRF

  • Description: Digital I²C or SPI protocol Pressure Transmitter for Volume Corrector
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 70 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 3.3 V
  • Power supply max. [VDC]: 5 V
  • Manufacturer: Microsensor
MPM3801GRF
Min. Pressure [bar]

Max. Pressure [bar]

Pressure Type

Description
