Level Transmitter

Transmitters are a key component of measurement and control technology in industrial systems and applications. They supply measurement data for the control, monitoring or supervision of hydraulic or pneumatic processes. With their standardized output signal interfaces such as 4~20mA or 0~10V, these transmitters are an indispensable part of the IoT infrastructure.

There are 10 of 14 products shown.

MPM316W

  • Description: Submersible Level Sensor. The air guide tube inside the cable connects the sensor back pressure cavity with the atmosphere at the cable outlet, which ensures the accuracy of the measurement.
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Manufacturer: Microsensor
MPM316W

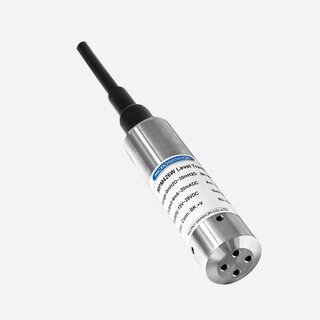

MPM426W

  • Description: The upper stainless steel cap is removable, which prevents accidental damage to the membrane and facilitates regular cleaning.
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM426W

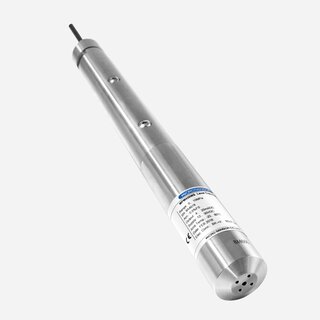

MPM426WS

  • Description: Deepwater Level Transmitter
  • Measured range [mH2O]: 2,000 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 12 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM426WS

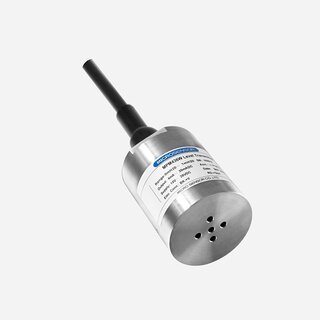

MPM436W

  • Description: Level Transmitter for Low Level
  • Measured range [mH2O]: 2 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM436W

MPM4700

  • Description: Intelligent Level Transmitter. Accuracy: ±0.1%FS (Typ.)
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.1 ±%FS
  • Power supply min. [VDC]: 10 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM4700

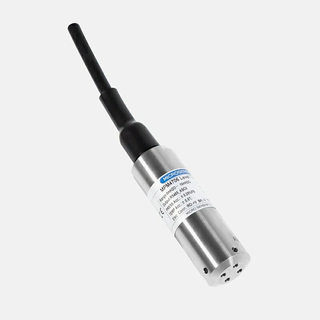

MPM4706

  • Description: Digital Level Transmitter. Extremely low power consumption and auto sleep. Level and temperature measurement.
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Output signal: RS485
  • Power supply min. [VDC]: 3.6 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM4706

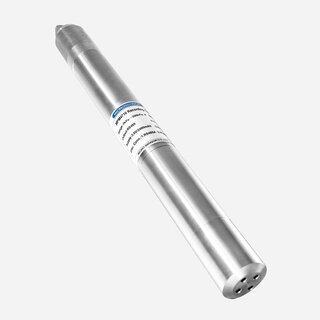

MPM4710

  • Description: Recording Transmitter up to 50,000 recording with built in Cylinder 3.6V/2400mAh Lithium cell (could work many years continuously).
  • Measured range [mH2O]: 112 mH2O
  • Output signal: RS485
  • Manufacturer: Microsensor
MPM4710

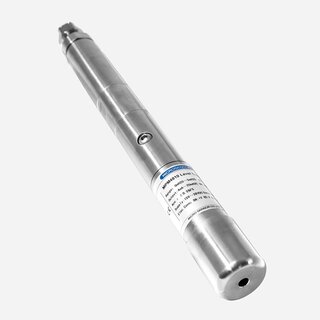

MPM4810

  • Description: The MPM4810 is a high-precision high temperature resistant liquid level measurement product.
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 10 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM4810

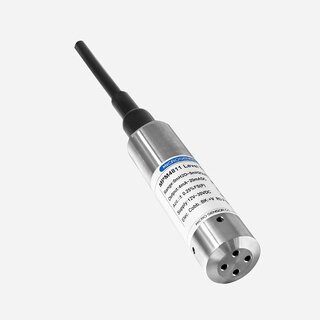

MPM4811

  • Description: Temperature/Level Dual Outputs Submersible Level Transmitter
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 12 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM4811

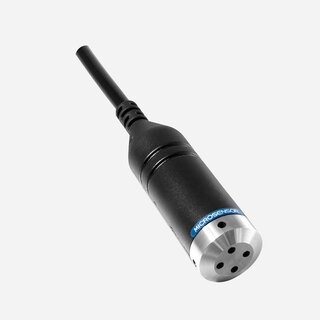

MPM4893W

  • Description: 26mm Level Transmitter for Multiple Applications
  • Measured range [mH2O]: 50 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Power supply min. [VDC]: 11 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM4893W
Measured Range up to

Output Signal

Description
