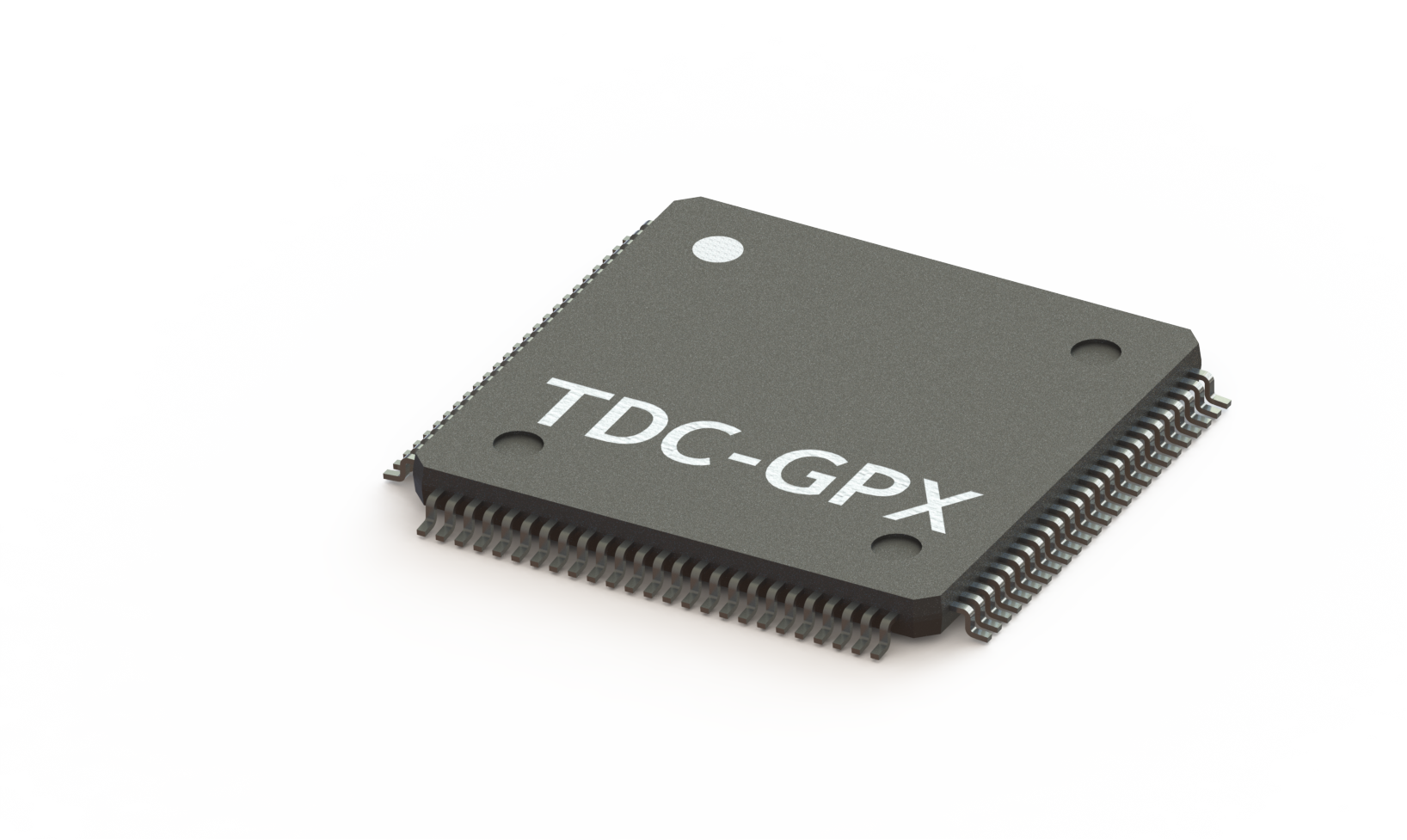

TDC-GPX Time-to-Digital Converter 8-Channel
Specification
- Channel: 2 in/2 out
- Application: 8 channels with typ. 81 ps resolution 9 LVTTL inputs, optional 3 LVPECL inputs 5.5 ns pulse-pair resolution with 32-fold multi-hit capability = 182 MHzpeak rate
- Package: TQFP100 TFBGA120
- Input: Time
- Interfaces: SPI compatible 4-wire interface for configuration
- Features: Data bus: 28 Bit or 2 x 16 Bit asynchronous
- TDC No. of hits: up to 32 hits
Start product inquiry
If you are interested, start your non-committal product inquiry below:
request for sample
